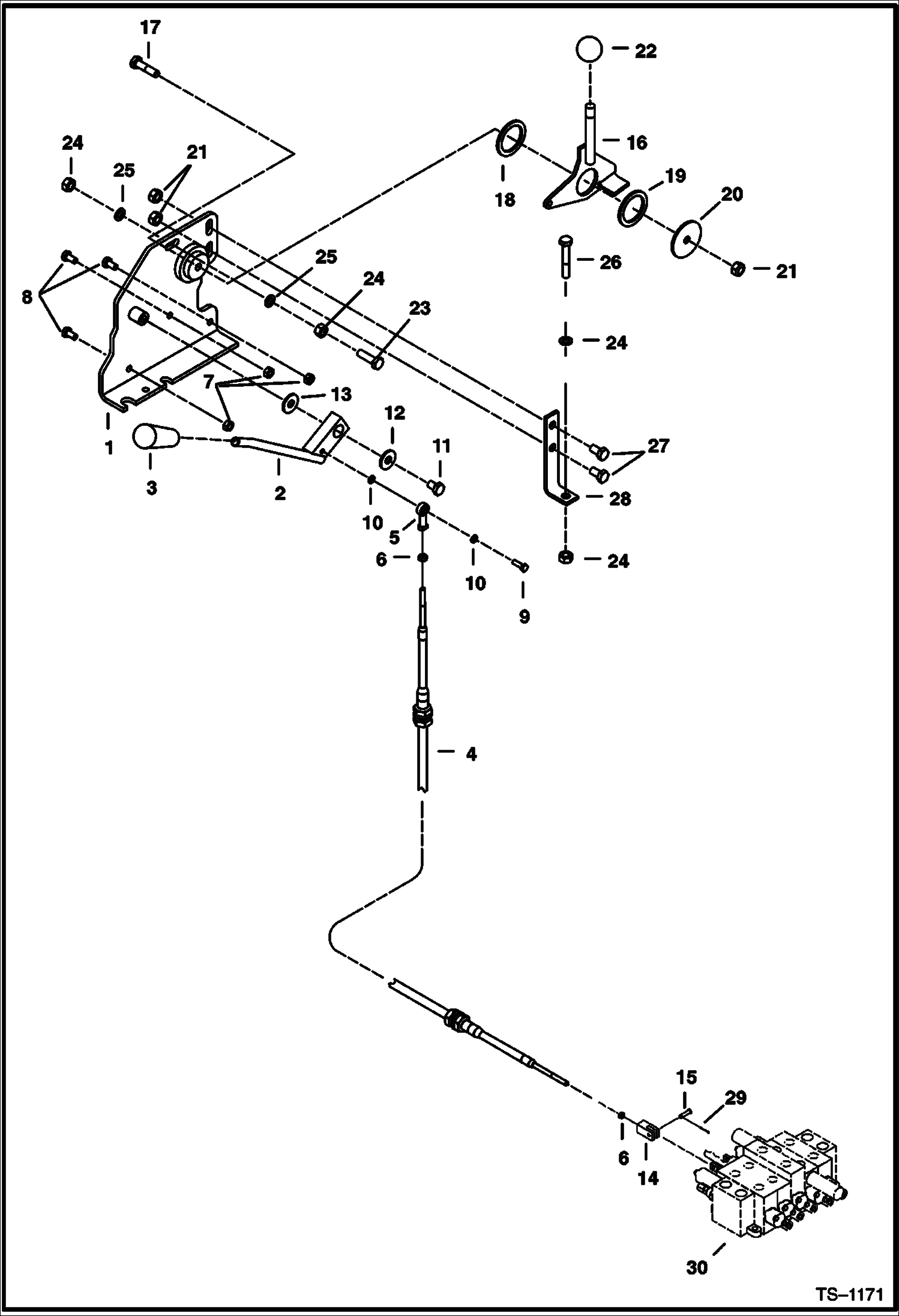

Запчасти Bobcat 325 BLADE & SPEED CONTROLS (S/N 514013001-514013205) CONTROLS

1

NLA - Order the following Ref. on Ill. TS1422 - Refs. 1, 11 (3), 12, 14, 15, 17 (3), 20 (2), 21 (2) , 23, 24 (4)

2

6537426

LEVER Blade

3

6510093

HANDLE GRIP

4

6657715

CABLE Blade Control

5

6593671

CONNECTOR

6

62D4

NUT

7

4DM8

NUT

8

1CM816

BOLT

9

1CM620

BOLT

10

15EM60

WASHER

11

1CM1016

SCREW

12

17EM100

WASHER

13

6536803

WASHER

14

6800264

YOKE

15

6536543

PIN Clevis

16

6537423

LEVER Speed Control

17

1CM1040

BOLT

18

6567962

WASHER Friction

19

6630945

WASHER Wave

20

616789

WASHER

21

53DM10

NUT

22

6631564

KNOB

23

1CM1035

BOLT

24

4DM10

NUT

25

15EM100

WASHER

26

1CM1050

SCREW

27

1CM1020

BOLT

28

6537647

ANGLE

29

1F212

PIN

30

VALVE See Illustration CONTROL VALVE/ D2339
