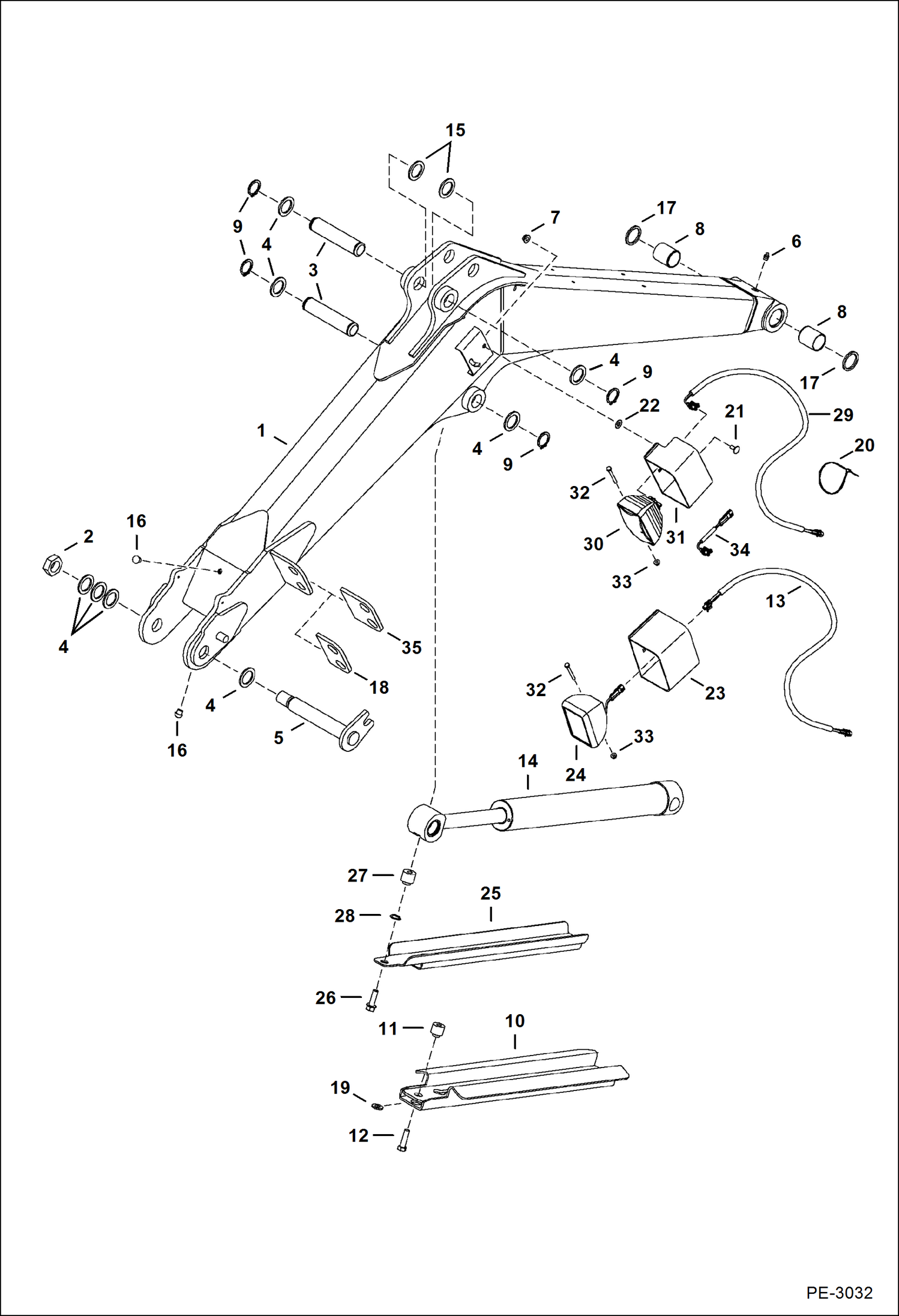

Запчасти Bobcat 325 BOOM WORK EQUIPMENT

1

BOOM See Illustration HYDRAULIC CIRCUITRY/ TS1292 - NLA - W/Ref. 18 - Order 7139949 boom, & 7139953 & 7139954 tubelines, & (4) 6535312 washers for boom base pivot - Was 6804131 - A

1

7139949

BOOM, DIPPER ARM W/Ref. 8 & 35 - Also Order (4) 6535312 washers for boom base pivot

2

39DM30

NUT

3

6595660

PIN 6.38'' (162,0 mm) long - Use W/7110448 boom

3

7130447

PIN 6.13'' (155,7 mm) long - Use W/7125930 boom

4

1EM330

WASHER Use W/Ref. 5 (NLA/6589919 pin)

4

6534111

WASHER Use W/Ref. 5 (6628375 pin)

5

6628375

PIN boom mounting - Was 6589919

6

10H25

FITTING, GREASE 5

7

51DM8

NUT Was 4DM8 - B

8

6815277

BUSHING Was 6803207 - B

9

6534154

RING

10

SHIELD NLA - Order 7130859 shield - also order Ref. 26-28 - Was 6596469 - A

11

6596506

SPACER, SHIELD for Use W/Ref.10 (NLA/6596469 shield)

12

29CM1245

SCREW for Use W/Ref.10 (NLA/6596469 shield) - also order Ref. 19 (1) - Was 59CM01240B - B

13

HARNESS NLA - work light - 153'' (3886mm) long - Order Ref. 29 - Was 6808415 - A

14

CYLINDER See Illustration BOOM CYLINDER/ NA2866 BOOM

15

6811636

SPACER

16

6597572

BUMPER rubber

17

6660075

SEAL

18

6628560

PLATE welded onto boom - 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

19

25E21

WASHER 5 for Use W/Ref.10 (NLA/6596469 shield)

20

6610510

TIE

21

28CM820

BOLT Was 21CM820 - A

22

6675859

RETAINER

23

HOUSING NLA - Order Ref. 30 - 34 - Was 6808258 - A

24

6675938

LIGHT W/pigtail - Use W/Ref. 23

24

6667934

BULB Was 6677934 - D

24

6676724

BEZEL Was 6676203 - A

24

6676204

NUT

25

7130859

SHIELD W/A

26

7131273

SCREW for Use W/Ref. 25

27

7131109

SPACER for Use W/Ref. 25

28

6536803

WASHER spring washer - for Use W/Ref 25

29

7135896

HARNESS work light - 156'' (3962 mm) long - A

30

6691410

LIGHT W/O pigtail - Use W/Ref. 31

30

6692400

BULB

31

7133077

HOUSING, W/A W/notch in side

32

17C532

BOLT 5 for light W/pigtail

32

1CM655

SCREW for light W/O pigtail

33

61D5

NUT for light W/pigtail

33

51DM6

NUT for light W/O pigtail

34

7135981

HARNESS extension - 6'' (152mm) long

35

6597688

PLATE welded onto boom - 3.86'' (98 mm) x 4.95'' (125.8 mm)
