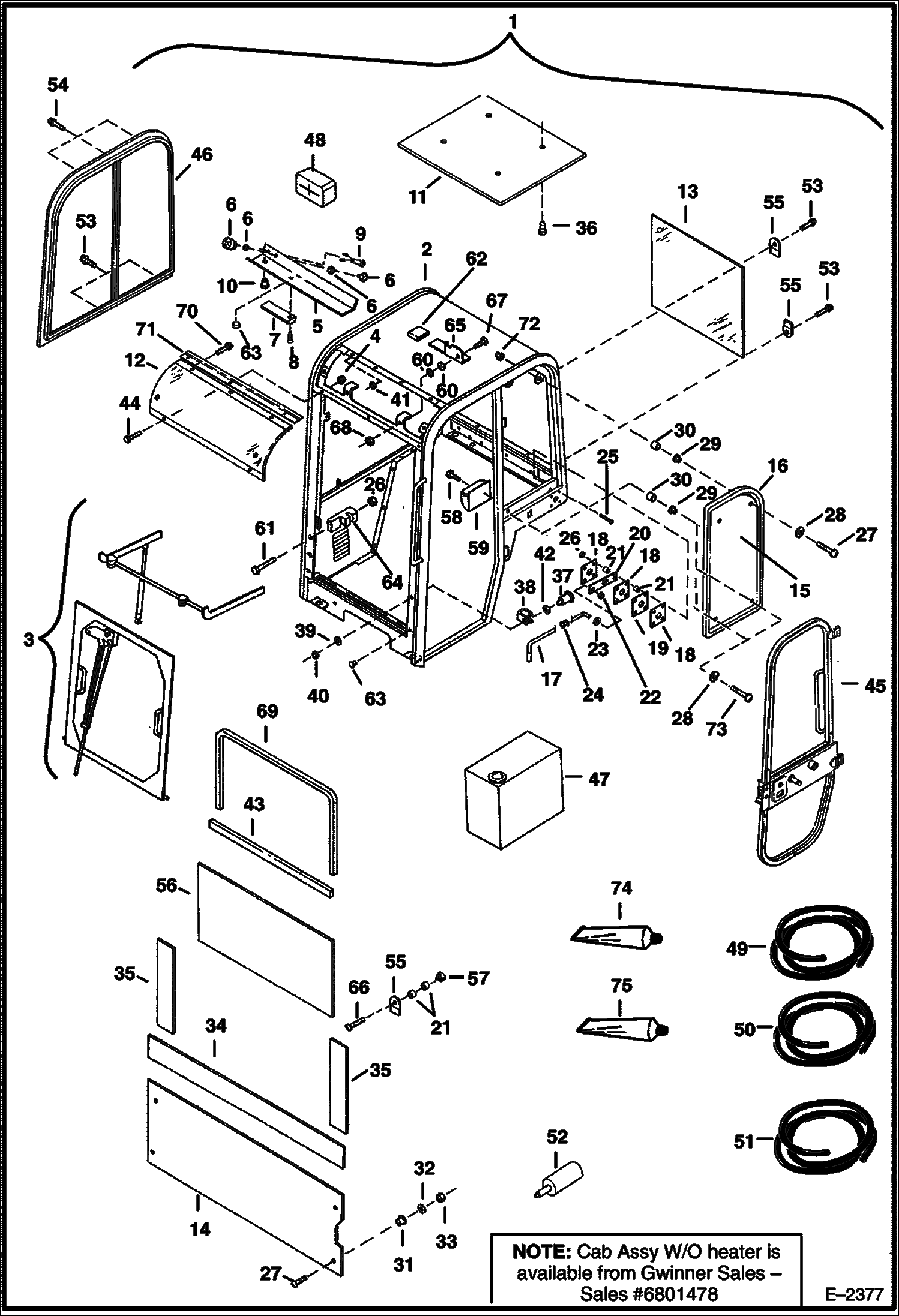

Запчасти Bobcat 325 OPERATOR CAB MAIN FRAME

1

NLA - W/Ref. 2-48 and all items on Ill. D2320, B20208, C3343, D2314 & E2379 - cab assy w/o heater is available from Gwinner Sales #6801478 - Was SALES - A

2

CAB NLA - Weldment - order 6802950

2

6802950

CAB Weldment - Was 6801477 - D

2

7149395

HINGE door - weld-on - Was 6807255 - A

3

WINDOW See Illustration OPERATOR CAB/ D2320 - front

4

6664103

NUT Acorn #10

5

6628898

PLATE

6

6669315

SWITCH Wiper/Washer

7

6664084

LIGHT

7

6665367

BULB Was 6655055 - A

8

6664049

SCREW Dome Light Mounting

9

6654166

FUSE HOLDER

9

6656270

FUSE 5amp.

10

6648358

GROMMET

11

6628899

INSULATION Headliner

12

6806131

WINDOW Curved - Was 6664176 - A

13

6664172

WINDOW Rear

14

6664175

GLASS Lower Front - W/Mtg holes & notch

15

6664171

GLASS Left

16

SEAL NLA - 105'' (2680 mm) long - Order Ref. 49

17

6628900

ROD Door Release

18

6628902

PLATE

19

6664146

SEAL

20

6628901

LATCH Door Hold Open

21

6664085

BUSHING

22

6660979

NUT Push On

23

6660980

RETAINER Push On

24

6654147

SPRING

25

6664068

BOLT 1 1/4'' long

26

7031515

NUT Acorn 1/4'' - Was 6664056 - A

27

6648410

BOLT 3/4''

28

6664090

WASHER

29

6800788

GROMMET

30

6664086

SPACER

31

6664089

GROMMET

32

6664065

WASHER

33

7031515

NUT Acorn 1/4'' - Was 6664056 - A

34

SEAL, WINDOW NLA - 36'' (914mm) long - Order Ref. 50

35

SEAL, WINDOW NLA - 12'' (305mm) long - Order Ref. 50

36

6664559

FASTENER Insulation

37

6664080

PIN Door Striker - w/internal threads

37

6649483

STRIKER BOLT Door Striker - w/external threads

38

6664083

COVER

39

27E6

WASHER 5

40

61D6

NUT 5 Use W/Ref. 37 - W/external threads

40

6664046

BOLT Use W/Ref. 37 - W/internal threads

41

6664562

GROMMET

42

6660975

GROMMET

43

SEAL NLA - 33'' (838 mm) long - Order Ref. 49

44

6657095

BOLT #10 x 1/2''

45

DOOR ASSY. See Illustration OPERATOR CAB/ E2379

46

WINDOW ASSY. See Illustration OPERATOR CAB/ D2314 - right side

47

HEATER ASSY See Illustration HEATER ASSY./ TS1546 See Illustration HEATER/ C3340

48

6664106

LAMP Was 6668722 - A

48

6668721

BULB Replacement bulb for 6668722

48

6665700

SEALED BEAM for light 6664106

49

6664088

SEAL Bulk - Order Per Foot

50

6648416

SEAL BULK /FT Bulk - Order Per Foot

51

6664102

SEAL Bulk - Order Per Foot

52

6654148

SEALANT Window - 10 oz. tube

53

6654152

BOLT #10 x 3/4'' long

54

6665386

SCREW #10 x 1-3/4'' long

55

6665366

RETAINER Glass

56

6668111

WINDOW Lower front - No holes - No notch

56

6800637

WINDOW Lower Front

57

6664103

NUT Acorn #10

58

58G806

SCREW

59

6664075

ASH TRAY

60

6630038

WASHER

60

6630038

WASHER

61

6664066

BOLT

62

6670760

GRIP

62

6670760

GRIP

63

6670761

CAP Hole Plug

64

6800651

MOUNT Lower Glass

65

6801032

HANDLE L.H. Shown

65

6801031

HANDLE Was 6801033 - D

66

6657095

BOLT #10 x 1/2

66

6801188

SCREW #10 x 1

67

6800857

BOLT

68

87D5

NUT

68

87D5

NUT

69

SEAL NLA - 56'' (1422 mm) long - Order Ref. 49

70

26GM6016

SCREW

71

6805291

BRACKET

72

6669138

NUT

73

91G414

SCREW

74

6808882

ADHESIVE, URETHANE 10.5 fluid oz. - back window

75

7102268

PRIMER back window - Was 6808881 - A
