Запчасти Bobcat 325 X-CHANGE KIT (Latching) ACCESSORIES & OPTIONS

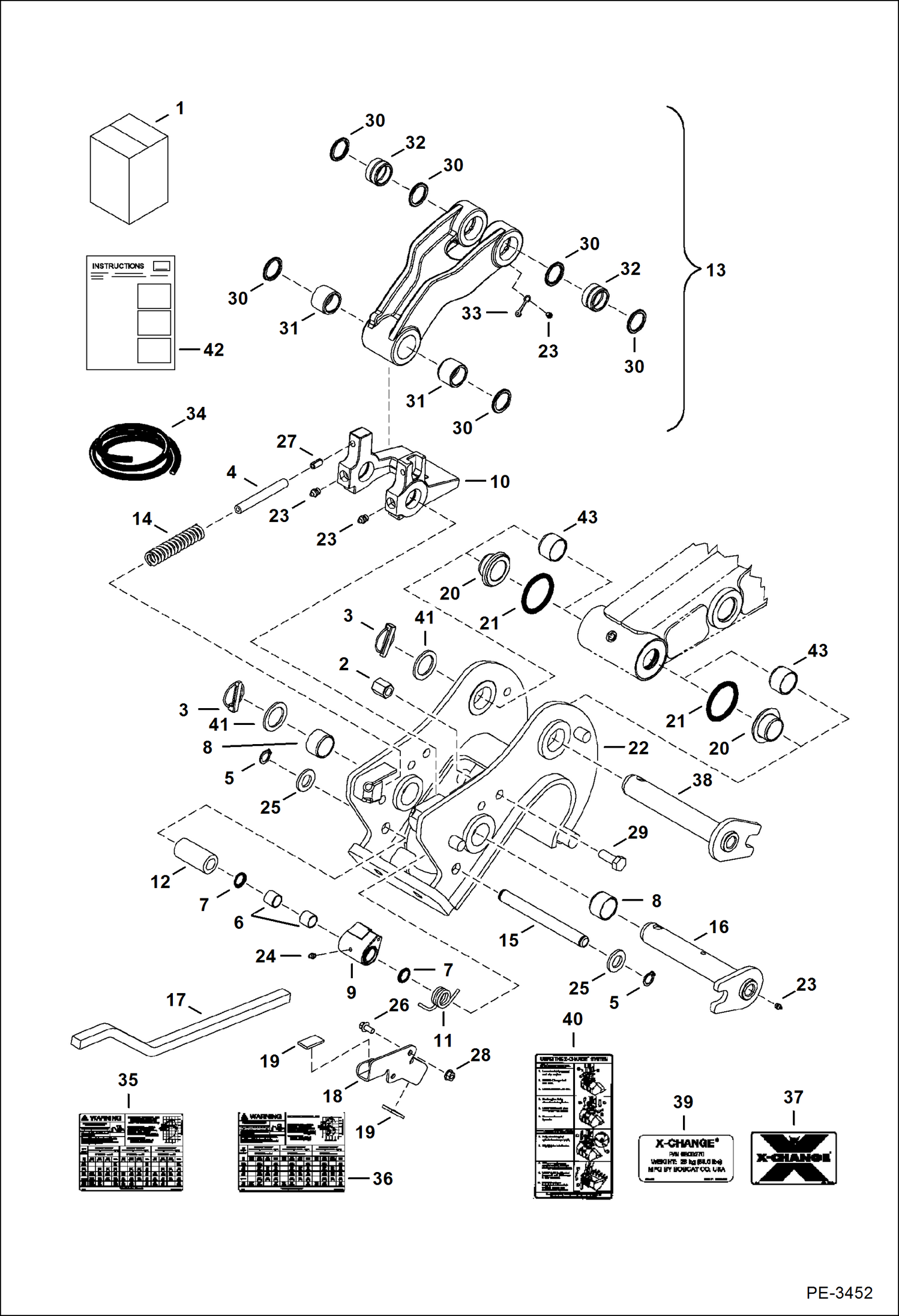

Схема запчастей Bobcat 325 - X-CHANGE KIT (Latching) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6813306

KIT, X-CHANGE W/SEAL X-Change - W/Refs. 2-42

2

6536748

NUT Lock

3

6560382

PIN, LOCK retaining

4

HOSE NLA - 4.5 in. (114 mm) Long - Order Ref. 34

5

6662745

SNAP RING

6

6672019

BUSHING

7

6681505

SEAL dust

8

6802889

BUSHING Use (2) w/6812421 & (2) Ref. 20

9

6802893

CATCH

10

6802897

LATCH, X-CHANGE KIT

11

6804386

SPRING, TORSION

12

6805296

SPACER

13

6805373

LINK, BUCKET MACHINED ASSY W/Refs. 23, 30, 31, 32, & 33

14

6806018

SPRING

15

6806953

PIN, PIVOT X-CHANGE

16

6806971

PIN, PIVOT X-CHANGE

17

6807074

LEVER Release

18

6810241

BRACKET

19

6810261

PAD

20

6813304

BUSHING See Illustration ARM/ TS1369 - Ref. 19 - Use W/ 6812421 X-Change W/arm that doesn't include Ref.19 thrust washer

20

6810525

BUSHING, PRESS FIT See Illustration ARM/ TS1369 - Ref. 19 - beveled flange - Use W/Ref. 21 on 6812421 X-Change W/arm that does include Ref. 19 thrust washer

21

6811260

O-RING See Illustration ARM/ TS1369 - Ref. 19 - Use W/ 6810525 bushing on 6802421 X-Change W/arm that does include Ref. 19

22

X-CHANGE See Illustration ARM/ TS1369 - Ref. 19 - NLA - Order 6812421 X-Change & (2) of 6813304 bushings if arm doesn't have Ref. 19 thrust washer or Order (2) 6810525 bushings & (2) 6811260 O-rin

22

6812421

X-CHANGE

23

10H25

FITTING, GREASE 5 grease

24

10H35

FITTING, GREASE 10 grease

25

25E27

WASHER

26

29CM816

SCREW

27

2JM1020

ROLL PIN Spring

28

43DM8

NUT

29

55CM1435

SCREW

30

6652915

SEAL, OIL dust

31

6803438

BUSHING, PRESS FIT wear

32

6803309

BUSHING, PRESS FIT wear

33

6652943

COVER grease fitting

34

6577822

HOSE bulk - sold per foot

35

6806615

DECAL Lift capacity 331

35

6806896

DECAL Lift capacity 325

36

6806616

DECAL Lift capacity 331/334 Long Arm

36

6806897

DECAL Lift capacity 325/328 Long Arm

37

6803760

DECAL logo

38

PIN See BTIE-081

39

6805416

DECAL latching X-Change

40

6800269

DECAL Using X-Change C-series

40

6817816

DECAL Using X-Change - Was 6809264 - A

41

6534111

WASHER

42

6802889

BUSHING not in kit - Use W/ NLA X-Change

43

6900541

INSTRUCTION

Выбрано товаров: 48
