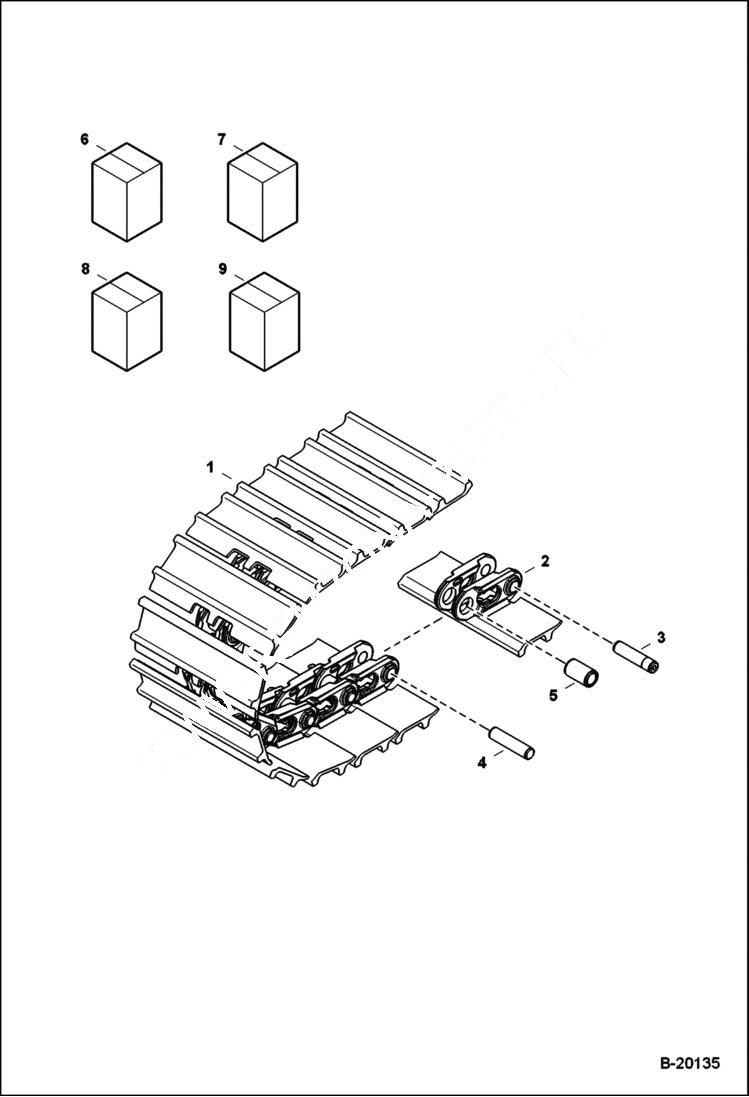

Запчасти Bobcat 325 TRACKS (Steel) ACCESSORIES & OPTIONS

1

6535571

TRACK ASSY. Steel - W/Ref. 2, 4 & 5 - P/N is for (1) track - Also Order Ref. 3 (1) per track

2

6535670

LINK Qty. shown is for 1 Track

3

6805105

PIN Master - Press Fit - Qty. shown is for 1 Track - Was 6534248 - A

4

6805106

PIN Regular - Press Fit - Qty. shown is for 1 Track - Was 6535647 - A

5

6805098

BUSHING Qty. shown is for 1 Track - Was 6534249 - A

6

6589075

KIT, STEEL TRACK W/Ref. 1 (2) and P/N 6534236 (4)

7

KIT, STEEL TRACK NLA - Include Ref. 1 and Track Rollers & Front Idler - Was 6589829 - A

8

6589077

KIT, RUBBER TRACK W/Ref. 6 (2) and P/N 6537618 (4)

9

6589827

KIT Includes track and Track Rollers, Front Idlers and Spacers
