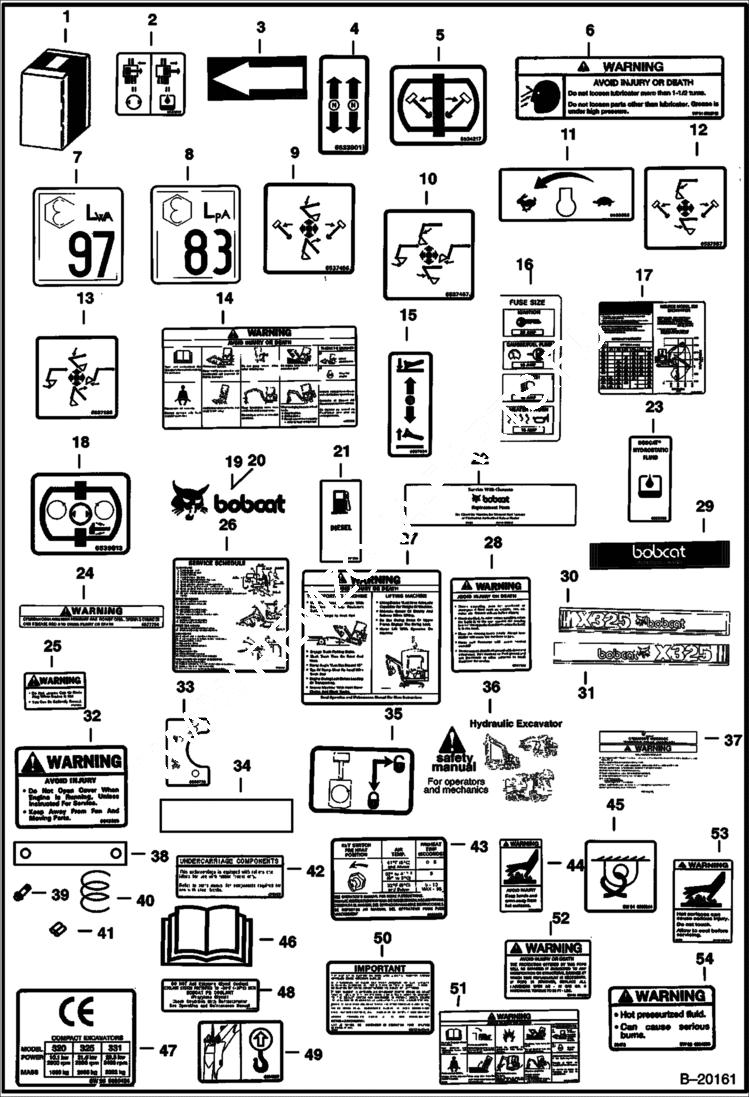

Запчасти Bobcat 325 DECALS ACCESSORIES & OPTIONS

1

6596612

KIT, DECAL Incl Refs. 2-6, 9-33, 35 & 42-50

1

6801248

DECAL KIT Spanish - W/Refs. 2, 6, 14, 16, 17, 21-28, 32, 42-44 & 48

2

6539812

DECAL Selector Valve

3

6533899

DECAL Arrow

4

6533901

DECAL Drive

5

6534217

DECAL Boom Swing

6

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

6

DECAL NSS - Warning - Spanish - Order Kit 6801248 - Was 6801504 - A

7

6535310

DECAL Noise Warning (97)

8

6579399

DECAL Noise Warning (83)

9

6589842

DECAL Control - L.H. Standard Control Pattern

10

6589843

DECAL Control - R.H. Standard Control Pattern

11

6539688

DECAL Engine Speed

12

6589741

DECAL Control - L.H. ISO Control Pattern

13

6589740

DECAL Control - R.H. ISO Control Pattern

14

DECAL NLA - Warning - Order Ref. 51 - Was 6588380 - A

14

DECAL NSS - Warning - Spanish - Order Kit 6801248 - Was 6801514 - A

15

6537634

DECAL Blade

16

6588921

DECAL Fuse

16

DECAL NSS - Fuse - Spanish- Order Kit 6801248 - Was6801510 - A

17

6597227

DECAL Lift Capacity

17

DECAL NSS - Lift Capacity-Spanish - Order Kit 6801248 - Was 6801515 - A

18

6539813

DECAL Valve

19

6560986

DECAL, LOGO BOBCAT AND HEAD opposite of shown

20

6560987

DECAL Logo - Shown

21

6589739

DECAL Diesel

21

DECAL NSS - Diesel - Spanish- Order Kit 6801248 - Was 6595576 - A

22

6565200

DECAL, FILTER

22

DECAL NSS - Filter - Spanish- Order Kit 6801248 - Was6712262 - A

23

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

23

DECAL NSS - Hydraulic Fluid - Spanish -Order Kit 6801248 - Was6712209 - A

24

6577754

DECAL, WARNING 5 gas spring

24

DECAL NSS - Warning - Spanish- Order Kit 6801248 - Was 6712216 - A

25

DECAL NLA - Radiator Warning - Order Ref. 54 - Was 6643356 - A

25

DECAL NSS - Radiator Warning-Spanish-Order Kit 6801248 - Was6710971 - A

26

6628905

DECAL Service Schedule - Was 6588722 - C

26

DECAL NSS - Service Schedule-Spanish-Order Kit 6801248 - Was 6801508 - A

27

DECAL NLA - Warning - Order Ref. 52 - Was 6588382 - A

27

DECAL NSS - Warning - Spanish- Order Kit 6801248 - Was6801513 - A

28

DECAL NLA - Warning - Order Ref. 51 & 52 - Was 6587139 - A

28

DECAL NSS - Warning - Spanish- Order Kit 6801248 - Was 6801512 - A

29

DECAL NLA - Rear Logo - Was 6628509 - A

30

6588724

DECAL RH Model

31

6588725

DECAL LH Model

32

DECAL NSS - Warning - Order Kit 6801248 - Was 6643355 - A

32

6720969

DECAL Warning - Spanish

33

6588730

DECAL Light

34

6593245

TREAD

35

6587247

DECAL

36

6570354

MANUAL Safety

37

6900465

HANDBOOK Operators - English - Was 6596919 - A

38

6589347

STRAP Elastic - For Holding the Operators Handbook

39

29CM812

BOLT

40

6558309

WIRE ROPE 46'' (1179mm) long - Bulk - Sold Per Foot - Also Order (2) of 6558310 Sleeve

41

6558310

SLEEVE

42

6589129

DECAL Track, Rubber

42

DECAL NSS - Track, Rubber - Spanish - Order Kit 6801248 - Was 6597043 - A

43

6589059

DECAL Pre-Heat

43

DECAL NSS - Pre-Heat - Spanish- Order Kit 6801248 - Was 6801506 - A

44

DECAL NLA - Warning - Order Ref. 53 - Was 6589697 - A

44

DECAL NSS - Warning - Spanish - Order Kit 6801248 - Was 6595588 - A

45

6727595

DECAL Was 6595014 - B

46

6707971

DECAL Operators Manual

47

6596424

DECAL CE - Not Used on Models Sold in the U.S.

48

6708929

DECAL, COOLANT propylene glycol

48

DECAL NSS - PG Coolant - Spanish - Order Kit 6801248 - Was6712215 - A

49

6594897

DECAL Boom Lift

50

6560573

DECAL spark arrestor

51

6807776

DECAL Warning - Was 6804230 - A

52

6804231

DECAL Warning

53

6804232

DECAL Warning

54

6804233

DECAL Warning
