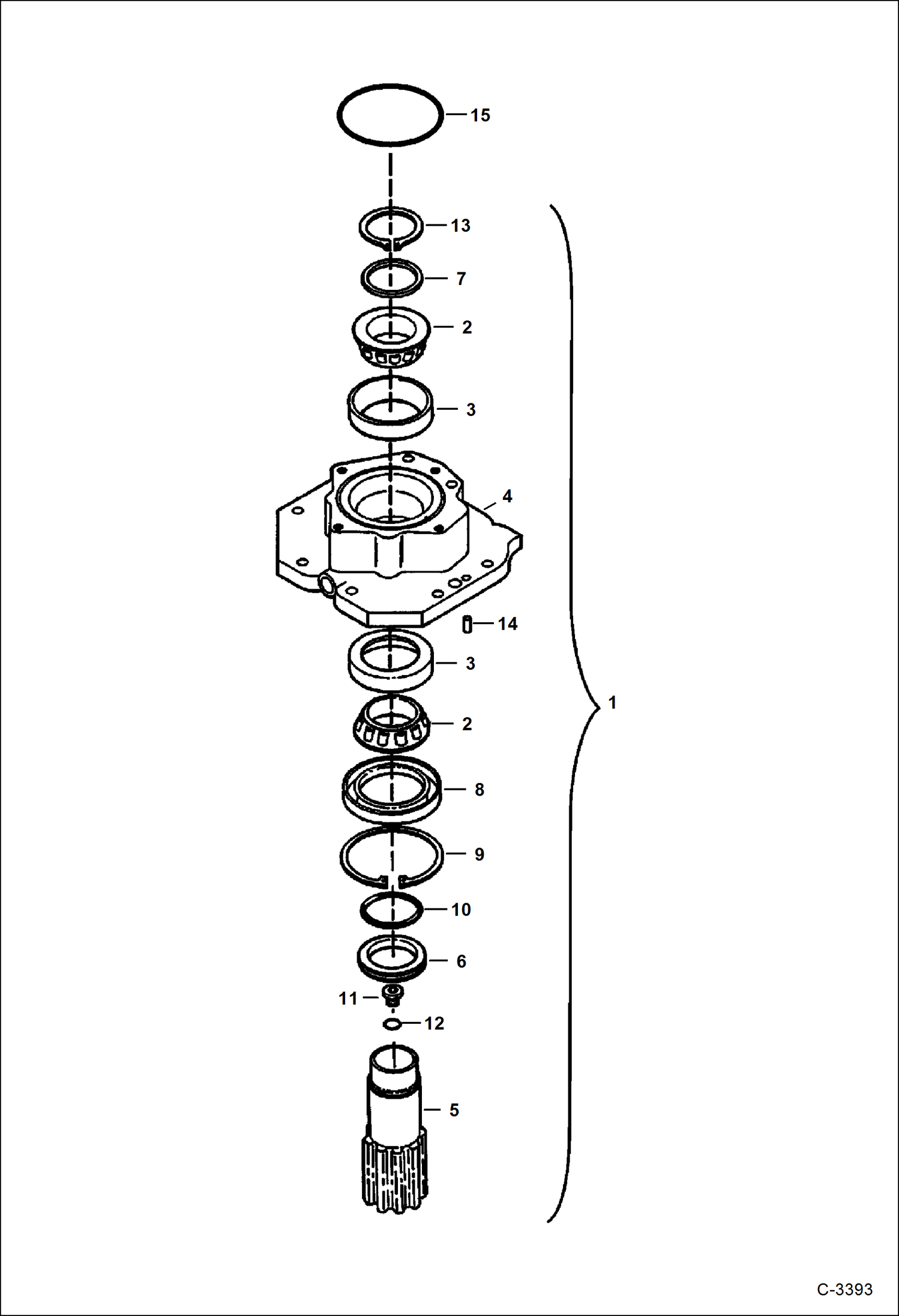

Запчасти Bobcat 325 MOUNT ASSY (Swing Motor Drive Carrier) HYDRAULIC SYSTEM

1

6628417

MOUNT drive motor - W/Refs. 2 - 14 - Was 6589946 - C

2

1320904

CONE

3

1320905

CUP bearing

4

MOUNT NLA - Order 6628418 & 6628419 - Was 6689938 - C

4

6628418

MOUNT

5

6589948

SHAFT, SLEW DRIVE

6

6589949

SPACER

7

6596894

WASHER

8

6665573

SEAL

9

6666343

SNAP RING .084 inch thick

9

6628419

RING .120 inch thick

10

25K40204

O-RING Was 54K40204 - B

11

47K6

PLUG W/Ref. 12

12

79K8

O RING 10

13

6596953

RING

14

20JM1025

DOWEL PIN

15

25K30508

O-RING, 10 See Illustration HYDRAULIC CIRCUITRY/ E2289 Use to seal swing motor to carrier
