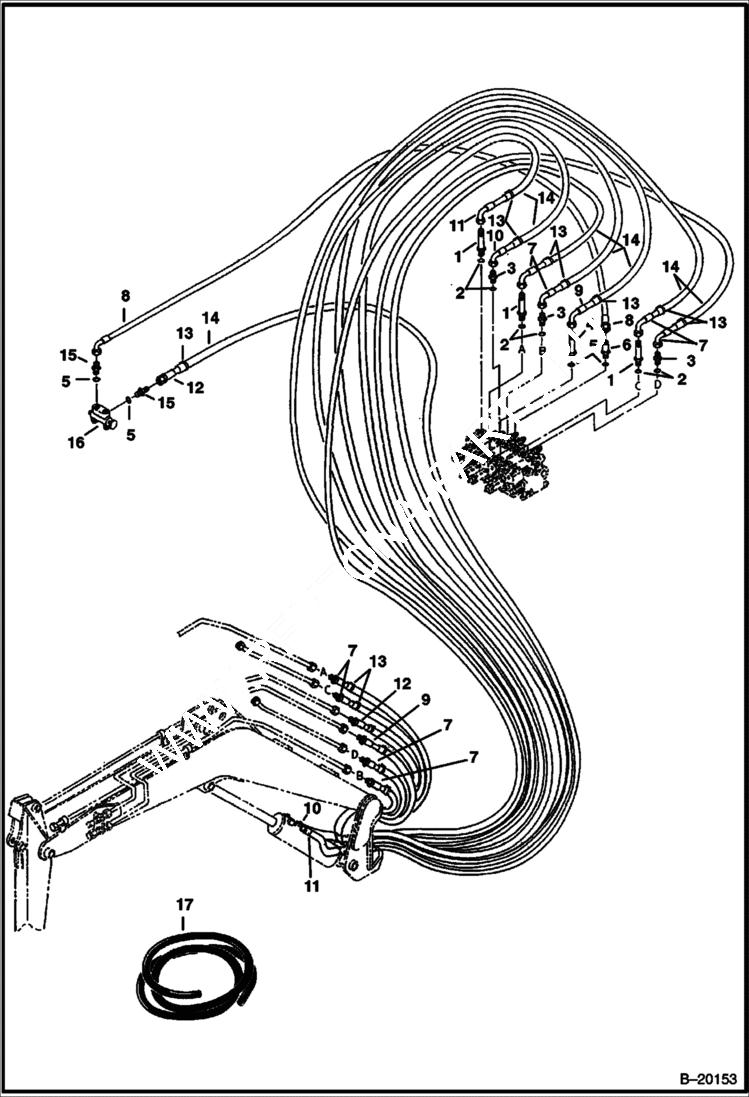

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Boom, Arm, Bucket and Auxiliary) HYDRAULIC SYSTEM

1

16K6

FITTING W/Ref. 2

2

79K8

O RING 10

3

15K6

ADAPTER W/Ref. 2

4

6539572

ADAPTER W/Ref. 5

5

79K10

O RING 10

6

763818

ELBOW W/Ref. 5

7

6800126

HOSE Incl. Refs. 13 & 14 - Bucket & Arm Cylinders - Was 6596476 - C

8

6596786

HOSE Control Valve to Selector Valve

9

6800128

HOSE incl. Refs. 13 & 14 - Auxiliary Female Coupler - Was 6589617 - C

10

6800129

HOSE incl. Refs. 13 & 14 - Boom Cylinder - Base End - Was 6596783 - C

11

6800130

HOSE incl. Refs. 13 & 14 - Boom Cylinder - Rod End - Was 6596784 - A

12

6800127

HOSE incl. Refs. 13 & 14 - Auxiliary Male Coupler - Was 6596483 - C

13

6665221

CABLE TIE metal-requires tool MEL-1427 to install cable tie

14

COVER NLA - 120'' long (3048 mm) - Order Ref. 17

15

15K8

FITTING W/Ref. 5

16

6660267

VALVE See Illustration SELECTOR VALVE/ B13660 SELECTOR

17

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID
