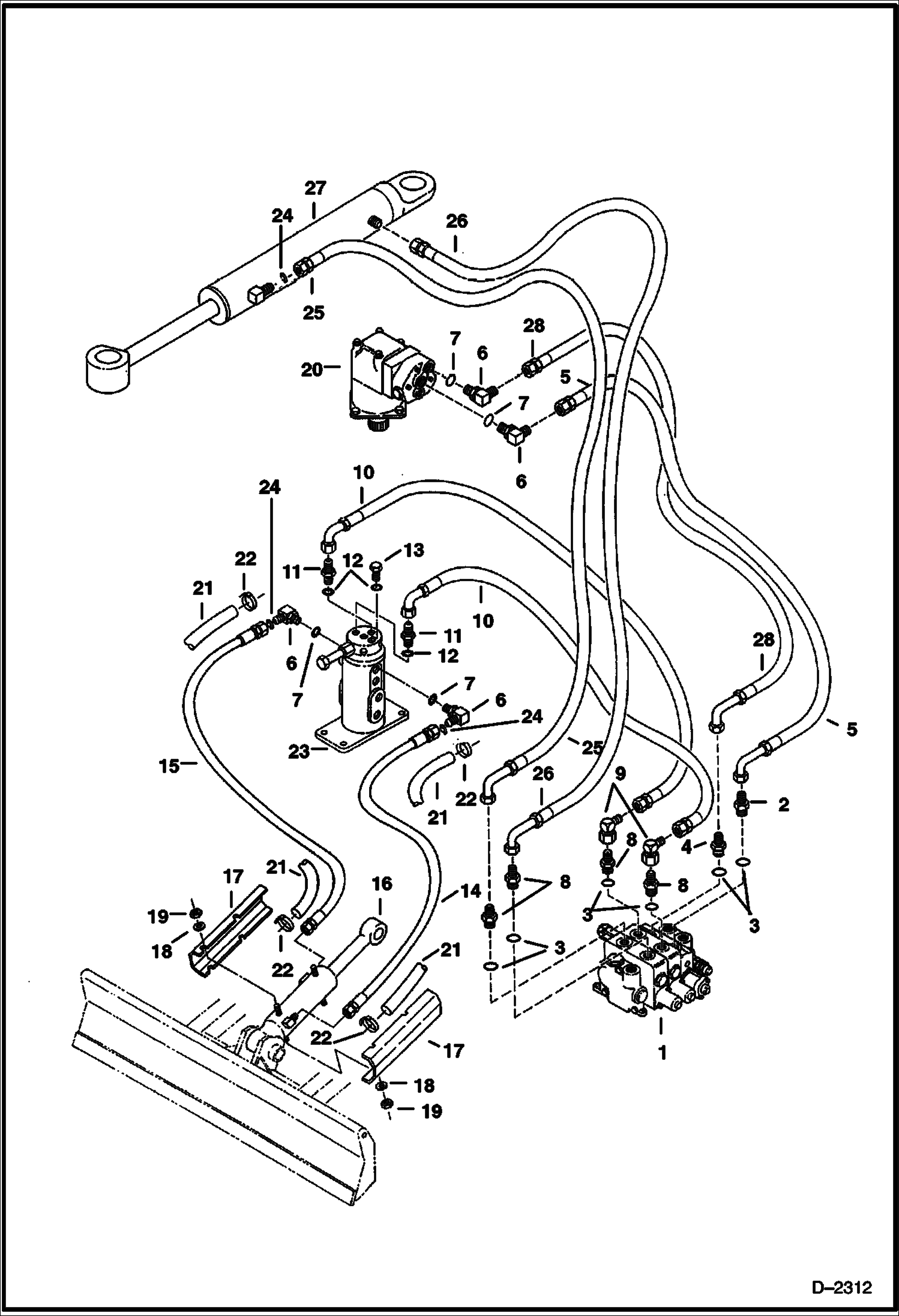

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Blade and Swing) HYDRAULIC SYSTEM

1

6666878

VALVE See Illustration CONTROL VALVE ASSY./ D2267 control

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

16K6

FITTING W/Ref. 3

5

6704671

HOSE

6

17K5

ELBOW W/Ref. 7

7

79K6

O RING 10

8

743108

FITTING W/Ref. 3

9

11K5

FITTING

10

6537631

HOSE

11

15K5

FITTING W/Ref. 12

12

79K6

O RING 10

13

24K5

PLUG W/Ref. 12

14

6800261

HOSE W/Hose Cover - Was 6589128 - C

15

6800260

HOSE W/Hose Cover- Was 6589127 - C

16

6596045

CYLINDER See Illustration BLADE CYLINDER/ B20158 blade

17

6537498

SHIELD

18

17EM100

WASHER

19

4DM10

NUT Was 1DM00008B - B

20

MOTOR See Illustration SWING MOTOR/ C3392 swing

21

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

22

6665221

CABLE TIE Metal-Requires Tool MEL-1427 to install Cable Tie

23

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

24

6595256

ORIFICE

25

6537629

HOSE

26

6537630

HOSE

28

6595205

HOSE
