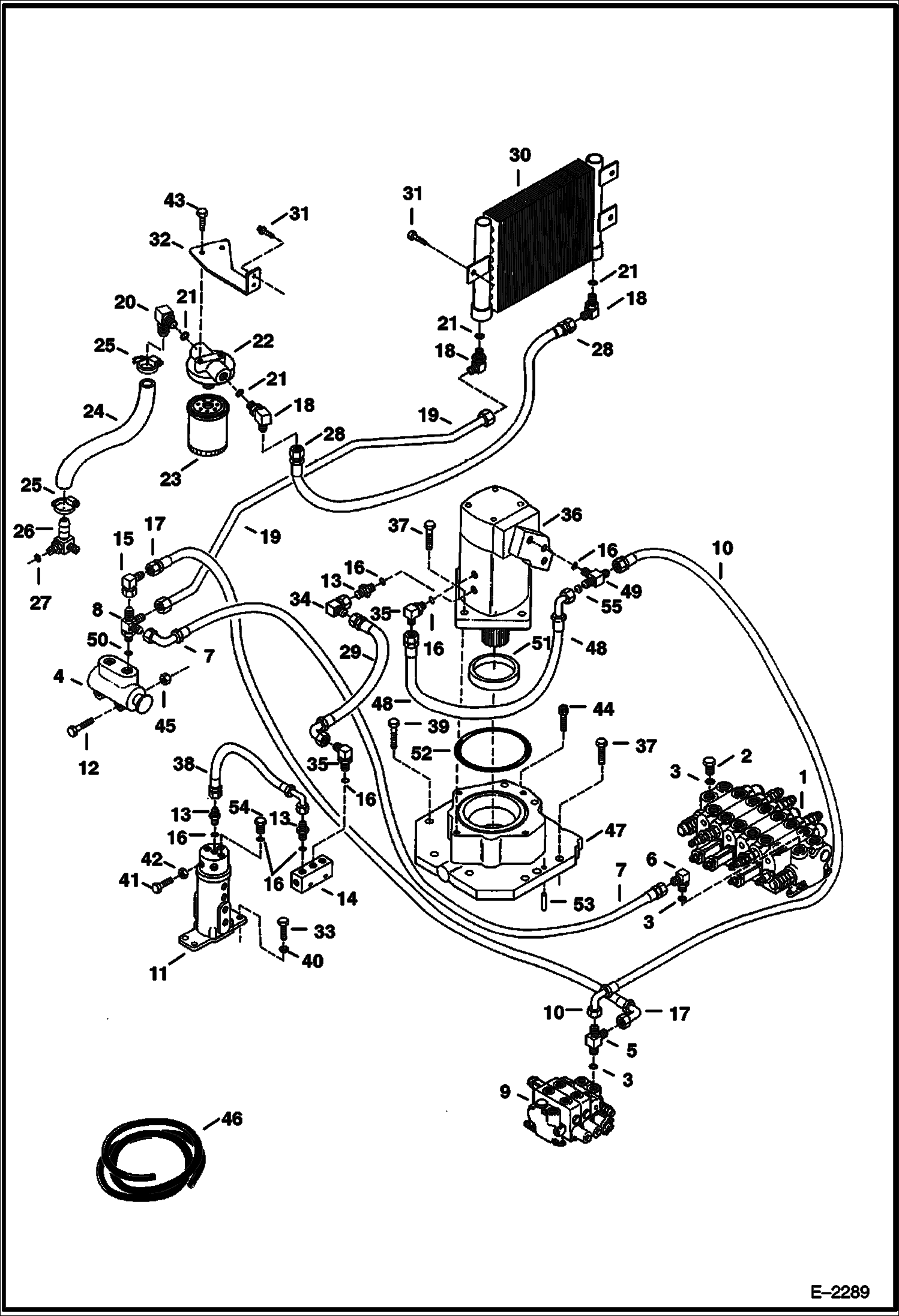

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Valve to Swing Motor to Filter to Cooler) HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
6665003
VALVE See Illustration CONTROL VALVE ASSY./ D2266 control
2
24K7
PLUG W/Ref. 3
4
6660267
VALVE See Illustration SELECTOR VALVE/ B13660 selector
5
6578183
TEE W/Ref. 3
6
17KB1210
FITTING, HYD ELBOW W/Ref. 3 - Was 1300294B - A
7
6596785
HOSE
8
6596790
TEE W/Ref. 50
9
6666878
VALVE See Illustration CONTROL VALVE ASSY./ D2267 control
10
6596806
HOSE
11
7123864
SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A
12
29CM845
BOLT
13
15K5
FITTING W/Ref. 16
14
6667829
BLOCK Drain - Was 6587437 - A
15
11K6
UNION
16
79K6
O RING 10
17
6595087
HOSE
18
17K10
FITTING W/Ref. 21
19
6657208
VALVE ASSY. See Illustration ACCUMULATOR VALVE/ C3279 - accumulator
19
6596788
TUBE
20
1312337
ELBOW W/Ref. 21
22
6654897
FILTER ASSY Assy. - W/Ref. 23
24
HOSE NLA - 16'' (400 mm) long - Order Ref. 46
25
5HM44
CLAMP Was 42H000024B - A
26
6596791
TEE W/Ref. 27
28
6596789
TUBE
29
6627175
HOSE
30
6666610
OIL COOLER
31
26GM8016
SCREW
32
6596792
BRACKET
33
1CM1230
BOLT
34
11K5
FITTING
35
17K5
ELBOW W/Ref. 16
36
6666911
MOTOR See Illustration SWING MOTOR/ C3392 swing
37
7CM1240
SCREW Was 1CM01240B - B
38
6539841
HOSE
39
7CM1250
BOLT Was 1CM01250B - B
40
6EM120
WASHER
41
BOLT See Illustration SWIVEL JOINT/ PE3057 NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A
42
NUT Use W/NLA 6536147 screw - Was 6536748 - B
43
1C612
BOLT
44
3GM12100
BOLT
45
4DM8
NUT Was 1DM00008B - B
46
6673825
HOSE bulk - sold per foot - Was 1310909B - A
47
6628417
MOUNT See Illustration MOUNT ASSY/ C3393 drive motor - Was 6589946 - C
48
6535445
HOSE
49
19K5
FITTING W/Ref. 16
50
79K14
O RING 10
51
6513681
BEARING
52
25K30508
O-RING, 10
53
20JM1025
DOWEL PIN Incl. W/Ref. 47
54
24K5
PLUG W/Ref. 16
55
6618286
ORIFICE .035'' (0,89mm)
