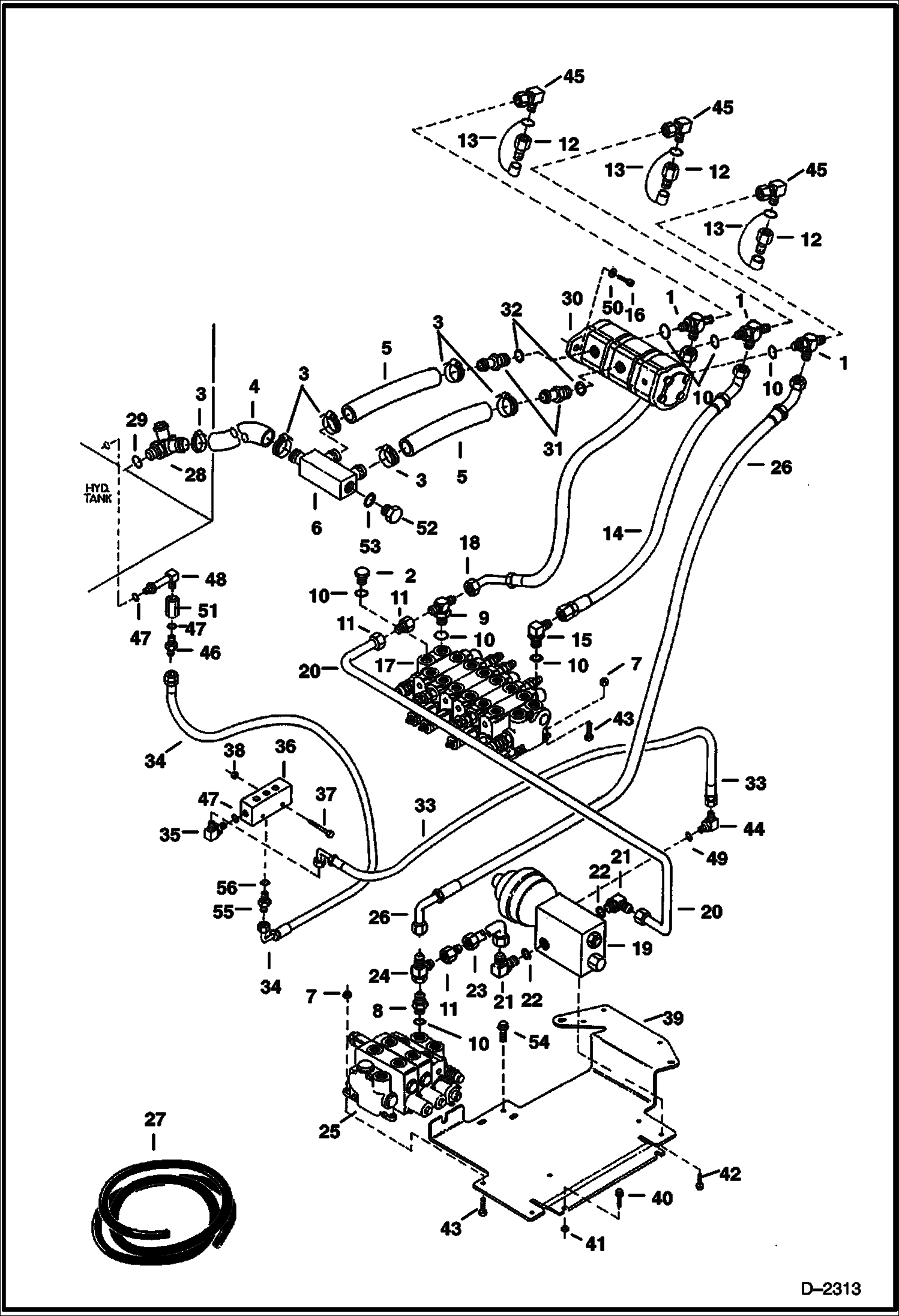

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Tank To Pump To Valves) HYDRAULIC SYSTEM

1

21K7

TEE W/Ref. 10

2

24K7

PLUG W/Ref. 10

3

42H24

CLAMP-5

4

HOSE NLA - 37 inch (940mm) - Order Ref. 27

5

HOSE NLA - 8 inch (204mm) - Order Ref. 27

6

6537505

MANIFOLD Supply

7

4DM10

NUT Was 1DM00010B - B

8

15K7

FITTING W/Ref. 16

9

19K7

TEE W/Ref. 10

10

79K10

O RING 10

11

784244

ADAPTOR

12

6646635

COUPLER Diagnostic

13

6630367

CAP

14

6537694

HOSE

15

6519195

ELBOW W/Ref. 16

16

3GM1025

BOLT

17

6665003

VALVE See Illustration CONTROL VALVE ASSY./ D2266 control

18

6538396

HOSE

20

6595100

TUBE

21

6654893

ELBOW W/Ref. 22

22

6655245

O-RING

23

6595042

TUBE

24

13K7

FITTING

25

6666878

VALVE See Illustration CONTROL VALVE ASSY./ D2267 control

26

6537525

HOSE

27

6673825

HOSE bulk - sold per foot - Was 1310909B - A

27

CYLINDER See Illustration SWING CYLINDER/ C3215 swing

28

6596791

TEE See Illustration HYDRAULIC CIRCUITRY/ E2289 W/Ref. 29

29

79K20

O RING 10

30

6665107

PUMP, GEAR TRIPLE See Illustration GEAR PUMP/ B20155 assy

31

6587972

FITTING

32

79K16

O RING 10

33

6587032

HOSE

34

6596805

HOSE

35

17K5

ELBOW W/Ref. 47

36

6667830

DRAIN BLOCK Was 6587437 - B

37

1CM855

BOLT

38

4DM8

NUT Was 1DM00008B - B

39

6596804

PLATE

40

29CM1025

BOLT

41

51DM10

NUT Was 42DM00010B - B

42

29CM816

SCREW

43

1CM1030

BOLT

44

6657392

ELBOW W/Ref. 49

45

6662768

ELBOW

46

15K5

FITTING W/Ref. 47

47

79K6

O RING 10

48

6558510

ELBOW W/Ref. 47

49

6655244

O-RING

50

15EM100

WASHER

51

6667552

FILTER drain

52

24K8

PLUG W/Ref. 53

53

79K12

O RING 10

54

26GM10020

BOLT

55

743108

FITTING W/Ref. 56

56

79K8

O RING 10
