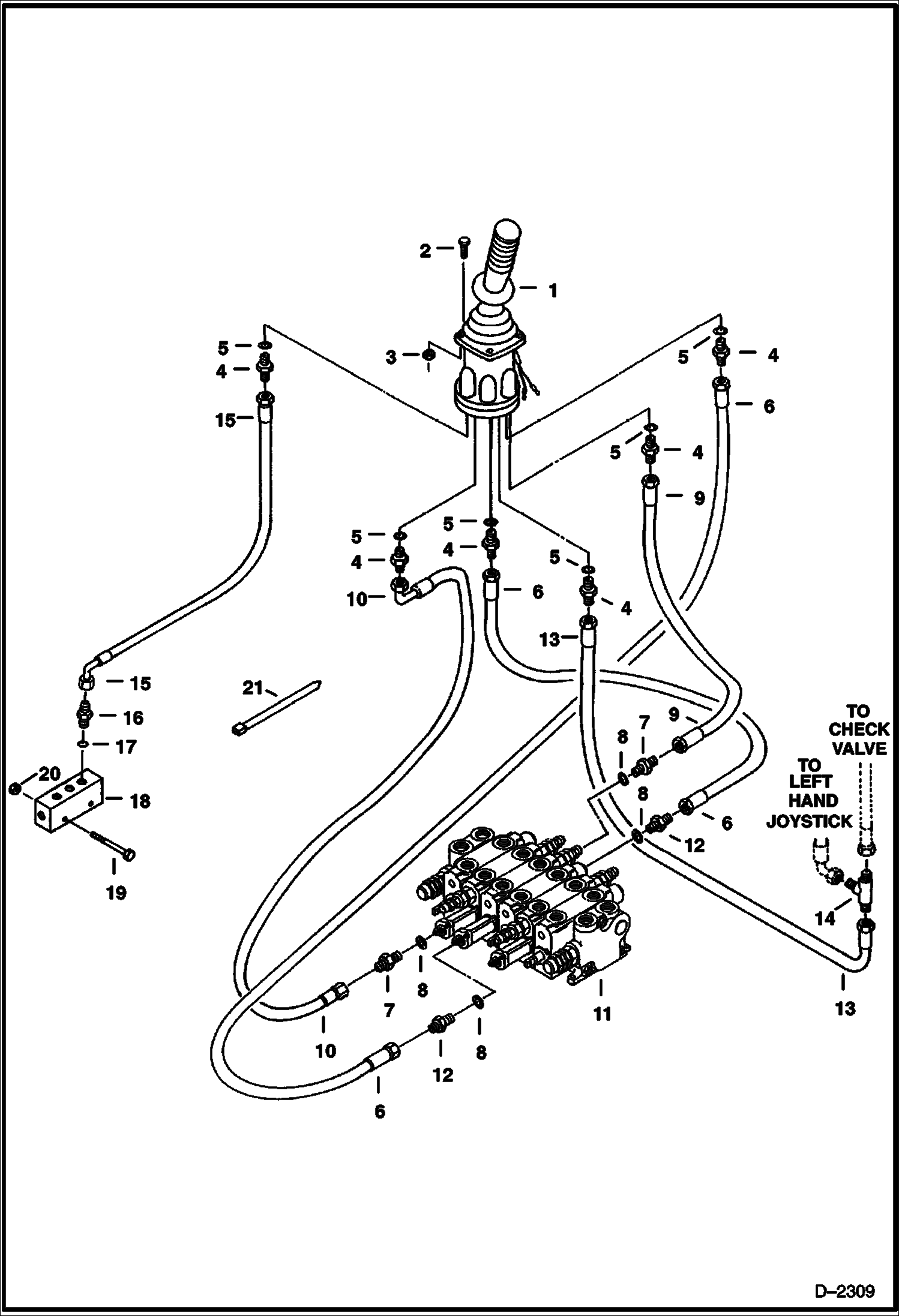

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (R.H. Joystick Controls) (Bucket & Boom) (ISO Control Pattern) HYDRAULIC SYSTEM

1

6654120

JOYSTICK ASSY. See Illustration R.H. JOYSTICK CONTROLS/ D1972 - RH

2

1CM625

BOLT

3

1DM6

NUT Was 4DM6 - A

4

6654895

ADAPTER W/Ref. 5

5

6655244

O-RING

6

6536792

HOSE

7

6665375

RESTRICTOR W/Ref. 8

8

79K4

O RING 10

9

6577680

HOSE

10

6536791

HOSE

11

6665003

VALVE See Illustration CONTROL VALVE ASSY./ D2266 control

12

15K3

CONNECTOR W/Ref. 8

13

6536788

HOSE

14

10K5

TEE

15

6640724

HOSE

16

15K5

FITTING W/Ref. 17

17

79K6

O RING 10

18

6667829

BLOCK Drain - Was 6587437 - A

19

1CM855

BOLT

20

4DM8

NUT Was 1DM00008B - B

21

6624289

STRAP, TIE
