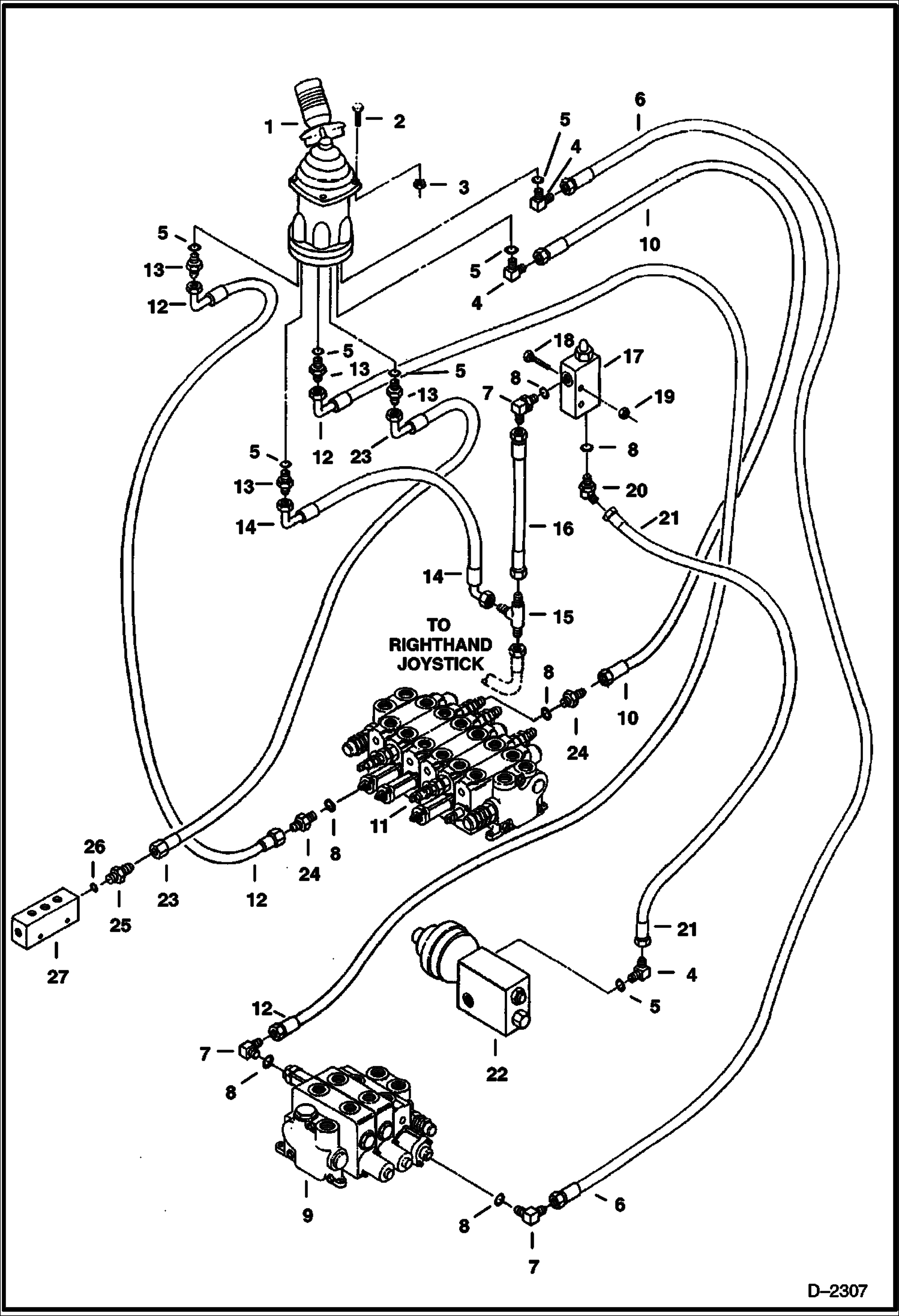

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (L. H. Joystick Controls) (Swing Motor & Boom) (Standard Control Pattern) HYDRAULIC SYSTEM

1

6654119

JOYSTICK ASSY. See Illustration L.H. JOYSTICK CONTROLS/ D1973 - LH

2

1CM625

BOLT

3

1DM6

NUT Was 4DM6 - A

4

6657392

ELBOW W/Ref. 5

5

6655244

O-RING

6

6536599

HOSE

7

17K3

ELBOW W/Ref. 8

8

79K4

O RING 10

9

6666878

VALVE See Illustration CONTROL VALVE ASSY./ D2267 control

10

6577680

HOSE

11

6665003

VALVE See Illustration CONTROL VALVE ASSY./ D2266 control

12

6536790

HOSE

13

6654895

ADAPTER W/Ref. 5

14

6536784

HOSE

15

10K5

TEE

16

6536797

HOSE

17

6657207

VALVE See Illustration CHECK VALVE/ B13826 check

18

1CM840

BOLT

19

4DM8

NUT Was 1DM00008B - B

20

18K3

ELBOW W/Ref. 8

21

6536793

HOSE

22

6657208

VALVE ASSY. See Illustration ACCUMULATOR VALVE/ C3279 - accumulator

23

6537630

HOSE

24

6665375

RESTRICTOR W/Ref. 8

25

15K5

FITTING W/Ref. 26

26

79K6

O RING 10

27

6667829

BLOCK Drain - Was 6587437 - A
