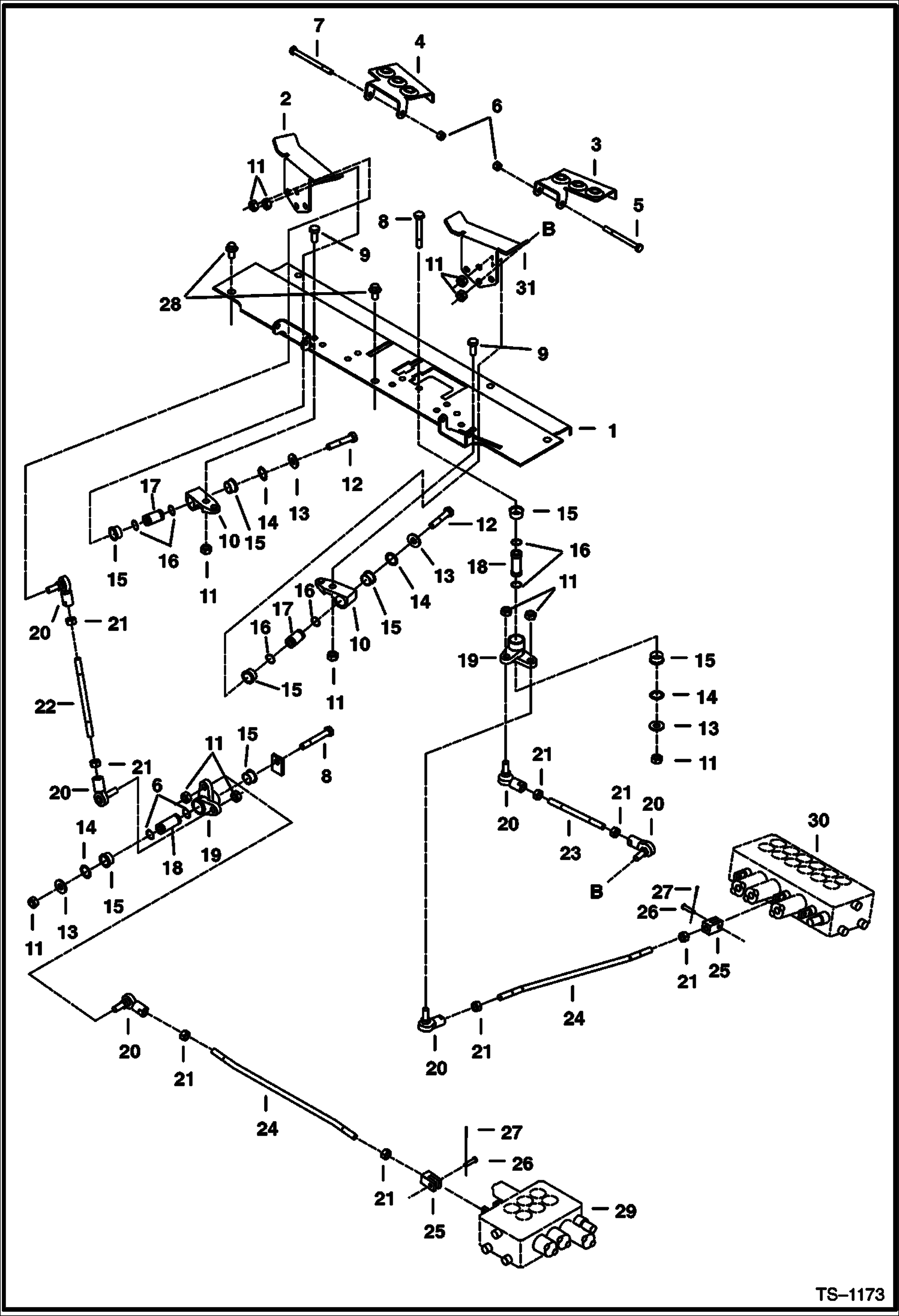

Запчасти Bobcat 325 BOOM SWING & AUXILIARY CONTROLS CONTROLS

1

6588561

PLATE

2

6589585

PEDAL R.H.

3

6588792

PEDAL LOCK L.H.

4

6536798

PEDAL LOCK R.H.

5

1CM890

BOLT

6

39DM8

NUT

7

1CM8100

SCREW

8

1CM1070

BOLT

9

1CM1025

BOLT

10

6537481

MOUNT

11

53DM10

NUT Was 49DM00010B - B

12

1CM1055

BOLT

13

27E6

WASHER 5

14

6536802

WASHER

15

6536801

BUSHING

16

58K015

O-RING 10

17

6536545

SLEEVE

18

6537487

SLEEVE

19

6536831

LEVER

20

6536531

BALL JOINT

21

4DM10

NUT Was 1DM00010B - B

22

6537486

ROD

23

6537485

ROD

24

6537484

ROD

25

6536549

YOKE

26

6536543

PIN

27

1F212

PIN

28

26GM1020

SCREW

29

VALVE See Illustration CONTROL VALVE ASSY./ D2267

30

VALVE See Illustration CONTROL VALVE ASSY./ D2266

31

6595023

PEDAL L.H.
