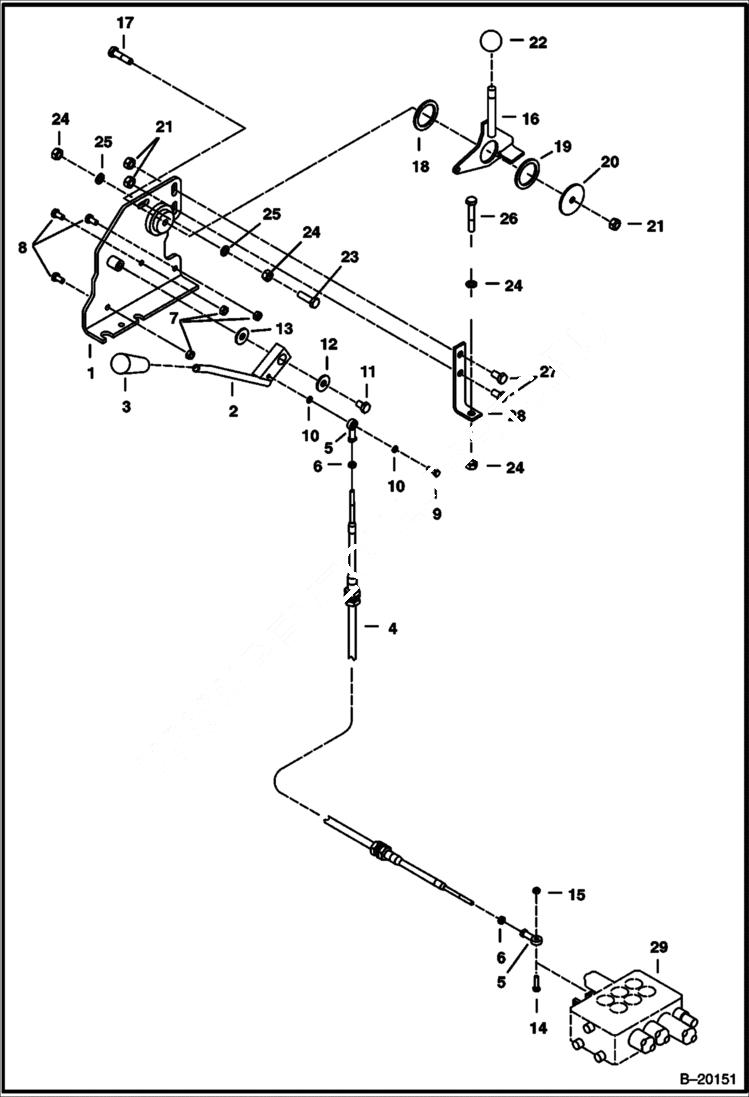

Запчасти Bobcat 325 BLADE & SPEED CONTROLS CONTROLS

1

BRACKET See Illustration BLADE & SPEED CONTROLS/ B20152 NLA - Order Ref. 9 (2), 10, 11 (4), 12, 13 & 20 (2) & Ref. 1, 2 (3), 3, 4, 5 & 6 (3) on Ill. B-20152 - Was 6537432 - A

2

6537426

LEVER Blade

3

6510093

HANDLE GRIP

4

6657715

CABLE Blade Control

5

6593671

CONNECTOR

6

62D4

NUT

7

4DM8

NUT Was 1DM00008B - B

8

1CM816

BOLT

9

1CM620

BOLT

10

15EM60

WASHER

11

1CM1016

SCREW

12

17EM100

WASHER

13

6536803

WASHER

14

1CM625

BOLT

15

1DM6

NUT Was 4DM6 - A

16

6537423

LEVER Speed Control

17

1CM1040

BOLT

18

6567962

WASHER Friction

19

6630945

WASHER Wave

20

616789

WASHER

21

53DM10

NUT Was 49DM00010B - B

22

6631564

KNOB

23

1CM1035

BOLT

24

4DM10

NUT Was 1DM00010B - B

25

15EM100

WASHER

26

1CM1050

SCREW

27

1CM1020

BOLT

28

6537647

ANGLE
