Запчасти Bobcat 325 L.H. CONTROL CONSOLE CONTROLS

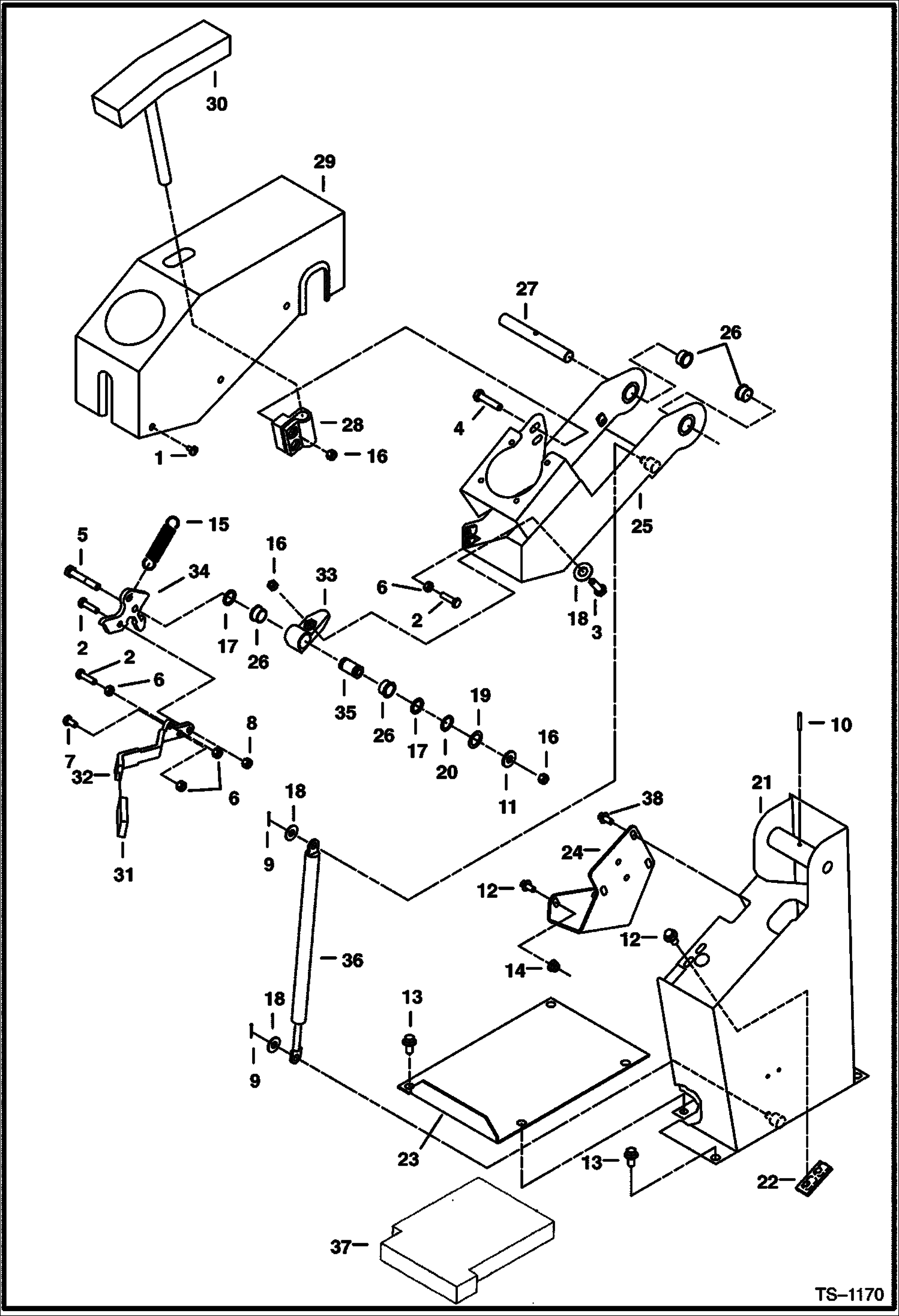

Схема запчастей Bobcat 325 - L.H. CONTROL CONSOLE CONTROLS

Артикул

Название

Примечание

Количество

1

6589675

SCREW

2

1CM835

BOLT

3

1CM1030

BOLT

4

1CM1045

BOLT

5

1CM1060

BOLT

6

4DM8

NUT Was 1DM00008B - B

7

3GM820

SCREW

8

53DM8

NUT Was 49DM00008B - B

9

13JM20025

COTTERPIN

10

14J1820

PIN Spring

11

27E6

WASHER 5

12

29CM816

SCREW

13

26GM10020

BOLT

14

51DM8

NUT Was 45DM00008B - B

15

6535500

SPRING

16

53DM10

NUT Was 49DM00010B - B

17

58K015

O-RING 10

18

15EM100

WASHER

19

6536803

WASHER

20

6536802

WASHER

21

6588545

CONSOLE L.H.

22

6537692

PLATE

23

6588694

FLOORPLATE

24

6588787

BRACKET

25

6537691

CONSOLE Pivot

26

6536801

BUSHING

27

6537549

PIN

28

6537514

MOUNT Arm Rest

29

6537553

COVER

29

6597752

COVER

30

6537510

ARM REST

31

GRIP NLA - Was 6537562 - A

32

6538336

HANDLE

33

6537481

MOUNT

34

6538335

LATCH

35

6536545

SLEEVE

36

6655965

CYLINDER Gas Spring

37

6588693

INSULATION

38

26GM8020

SCREW Self Tapping

Выбрано товаров: 39
