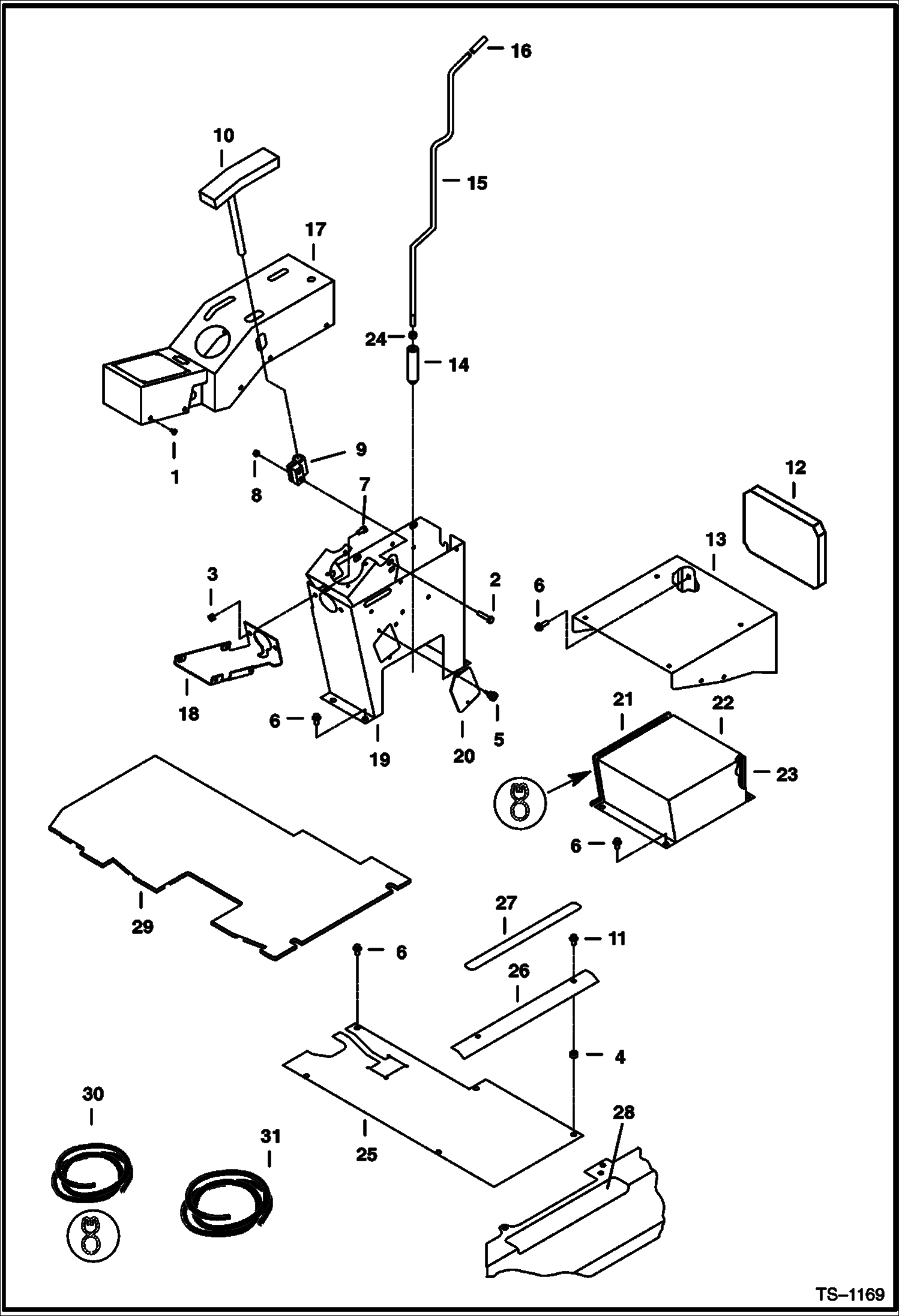

Запчасти Bobcat 325 R.H. CONTROL CONSOLE & FLOORBOARDS CONTROLS

1

6589675

SCREW

2

1CM1045

BOLT

3

4DM10

NUT Was 1DM00010B - B

4

6503451

SPACER

5

6631000

THUMBSCREW

6

26GM10020

BOLT

7

29CM1020

BOLT

8

53DM10

NUT Was 49DM00010B - B

9

6537514

MOUNT Arm Rest

10

6537510

ARM REST

11

26GM10030

BOLT

12

6596354

INSULATION

14

6533957

PIN Swing Lock

15

6588620

ROD

16

KNOB NLA - Was 6658108 - A

17

6596556

COVER

18

6588551

BRACKET

19

6588547

CONSOLE R.H.

20

6537544

COVER Fuse

21

SEAL NLA - 24'' (600 mm) long - Order Ref. 30

22

6588691

COVER

23

SEAL NLA - 6''(153 mm) long - Order Ref. 31 - not used on later models

24

4DM12

NUT HEX Was 1DM00012B - B

25

6588553

PLATE

26

6588552

ANGLE

27

6593245

TREAD

28

6588953

TREAD

29

6588619

FLOORMAT Canopy

30

6513152

SEAL bulk - sold per foot

31

SEAL NLA - bulk - sold per foot - Was 6632217 - B
