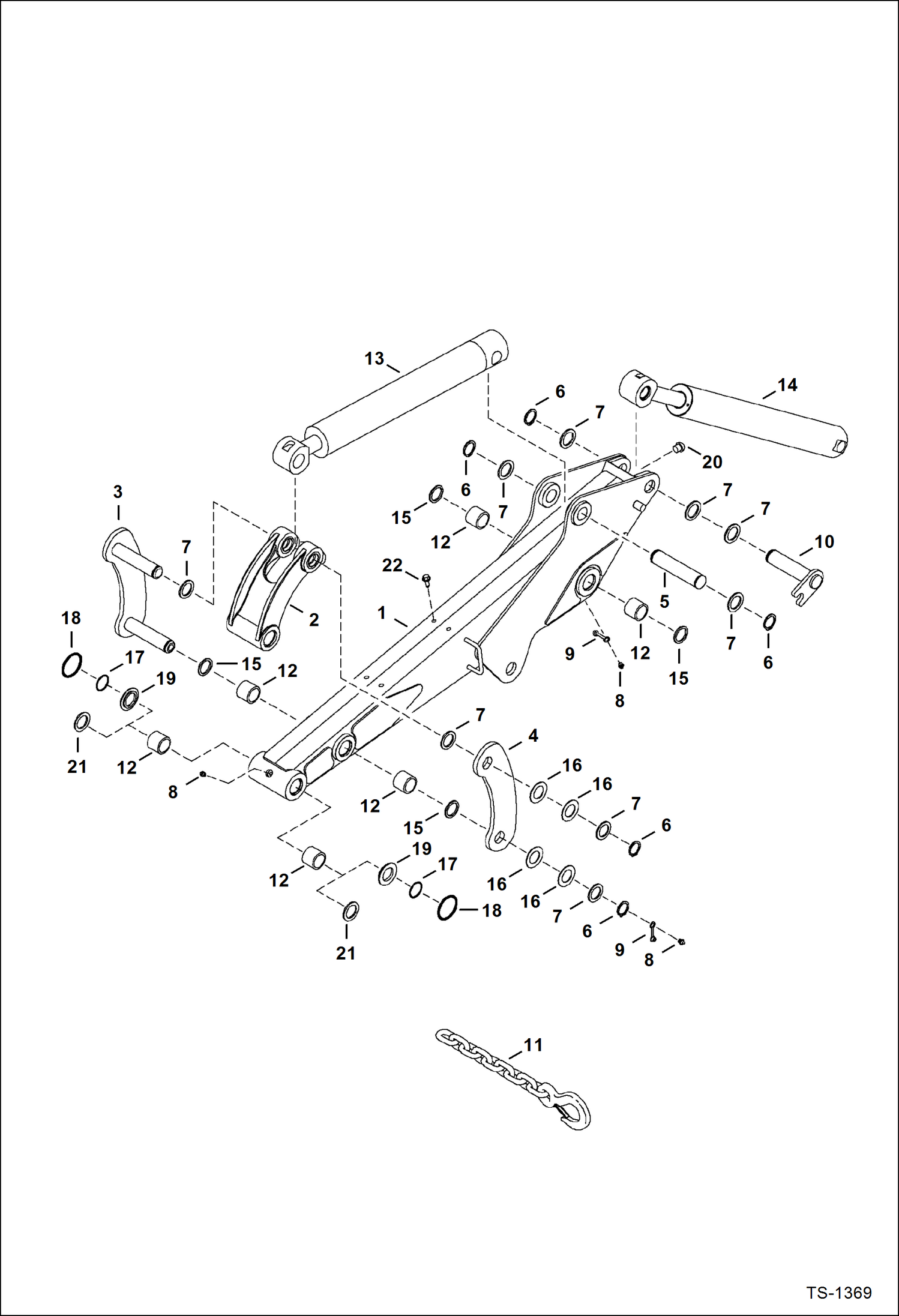

Запчасти Bobcat 325 ARM WORK EQUIPMENT

1

7127622

ARM standard arm - Also Order (6) of Ref. 12, (4) of Ref. 15, & (2) of Ref. 17-19 - if 6812421 latching or 6812423 bolt on X-Change is used, Also Order (2) of Ref. 18 & (2) of 6810525 bushings - Was 7

1

7127628

ARM, LONG long arm - Also Order (6) of Ref. 12, (4) of Ref. 15, & (2) of Ref. 17-19 - if 6812421 latching or 6812423 bolt on X-Change is used, Also Order (2) of Ref. 18 & (2) of 6810525 bushings - Was

2

6805374

LINK wide link

2

LINK KIT See Illustration WIDE LINK KIT/ TS1825 NLA - Order 6805420 for Pin-on & Bolt-on X-Change - Was 6803212 - A

3

7173235

LINK, GUIDE W/A Was 7127600 - A

4

7173234

LINK, GUIDE Was 7129624 - A

5

6595660

PIN

6

6534154

RING retaining

7

6534111

WASHER

8

10H25

FITTING, GREASE 5 Was 10H000015B - A

9

6652943

COVER grease fitting

10

6595222

PIN arm mounting

11

6665374

CHAIN

12

6803213

BUSHING, PRESS FIT

13

CYLINDER See Illustration BUCKET CYLINDER/ B14389 bucket

14

CYLINDER See Illustration ARM CYLINDER/ B14386 arm

15

6652915

SEAL, OIL dust

16

6535313

SHIM install as required

17

25K40112

O RING 10 Use on arms that have Ref. 19

18

6811260

O-RING Use on arms that have Ref. 19

19

6810627

WASHER Use on later arm W/Ref. 17 & 18

20

6597572

BUMPER

21

6652915

SEAL, OIL Use on arms W/O Ref. 17-19

22

26GM10020

BOLT
