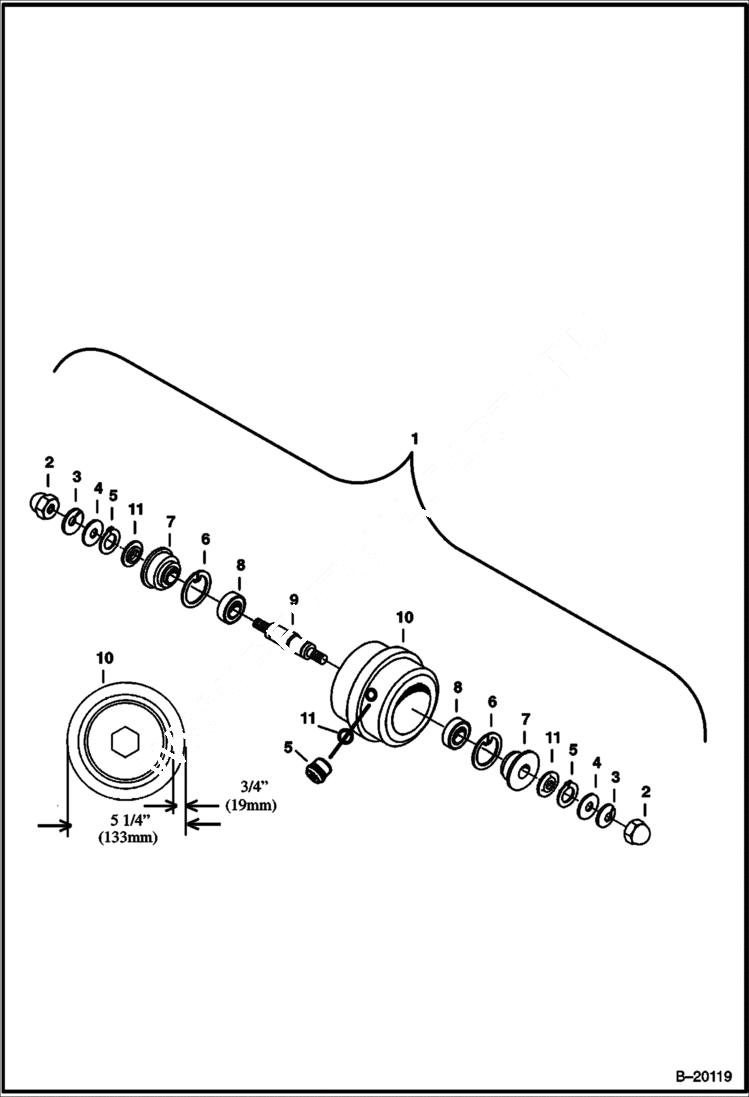

Запчасти Bobcat 325 TRACK ROLLER (Rubber) UNDERCARRIAGE

1

TRACK ROLLER See Illustration TRACK ROLLER/ NA2024 - NLA - assy - Ref. 2-11 - Was 6810767 - A

2

1DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

90K3

PLUG W/Ref. 11 - Was 90KV3 - D

6

7JM72

SNAP RING Was 6655060 - A

7

6717802

SEAL

8

6655062

BEARING

9

6810769

SHAFT Was 6807918 - A

10

6810768

ROLLER See Illustration TRACK ROLLER/ B18643 check the outer diamter before ordering parts - Was 6807917 - A

11

95K4

O-RING
