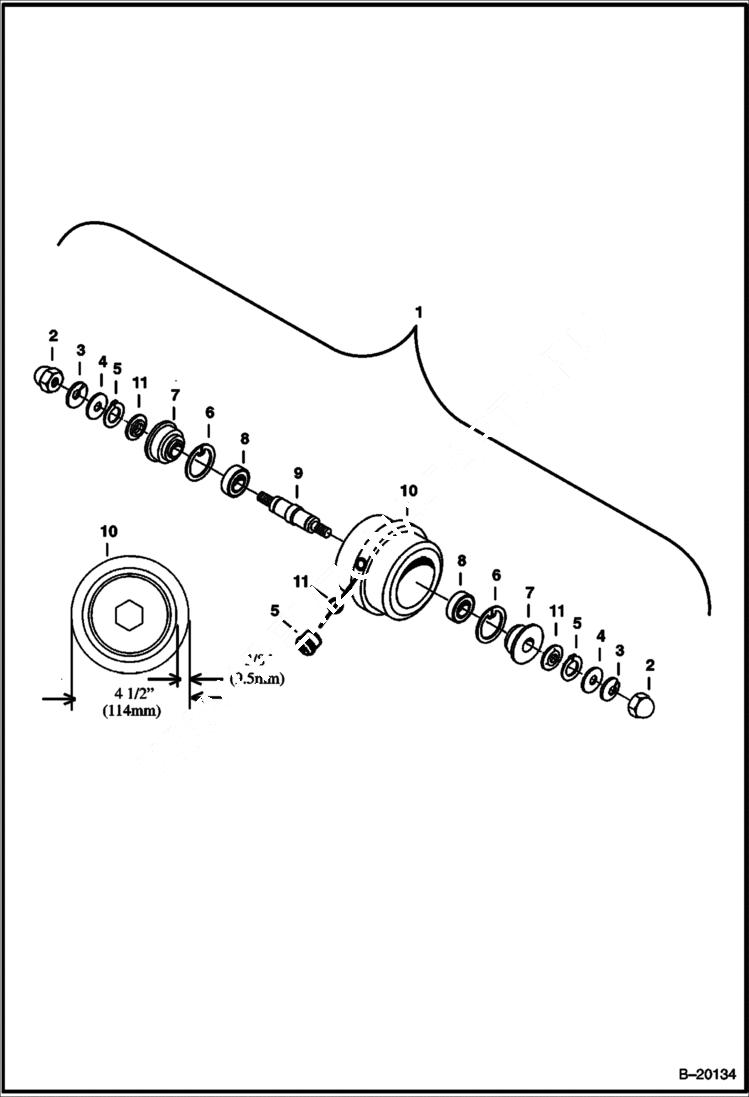

Запчасти Bobcat 325 TRACK ROLLER UNDERCARRIAGE

1

ROLLER See Illustration TRACK ROLLER/ NA2024 - NLA - assy - Ref. 2-11 - Was 6810770 - A

2

1DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

90KV5

PLUG W/Ref. 10

6

7JM72

SNAP RING

7

6717802

SEAL

8

6655062

BEARING

9

6810769

SHAFT Was 6807918 - A

10

6810771

ROLLER ASSY See Illustration TRACK ROLLER/ B20119 check the outer diamter before ordering parts - Was 6808134 - A

11

95K4

O-RING
