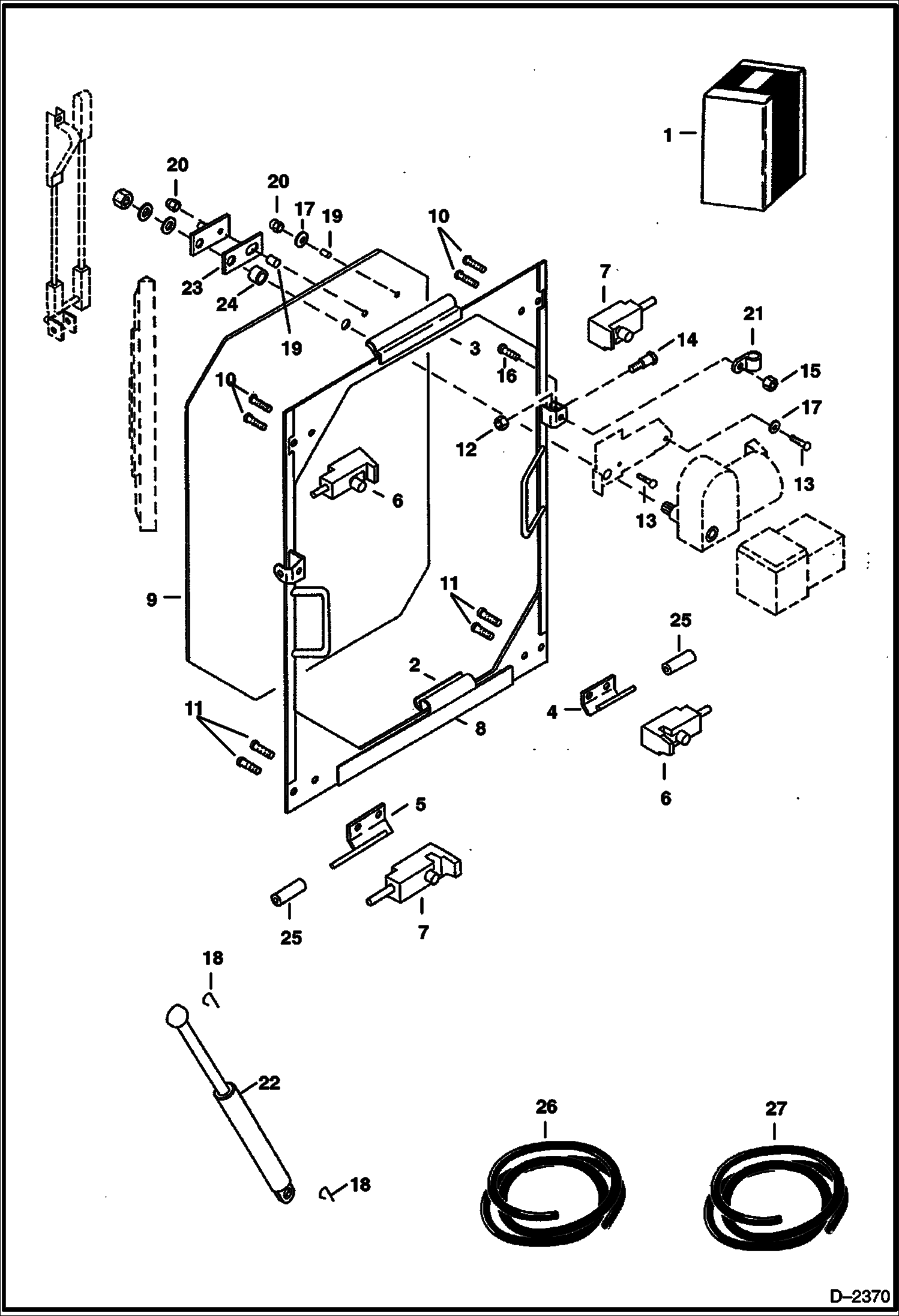

Запчасти Bobcat 325 SPECIAL APPLICATION KIT ACCESSORIES & OPTIONS

1

6667155

WINDOW ASSY Special Application - W/Refs. 2-27

2

SEAL NLA - 116'' (2946 mm) long - Order Ref. 26

3

SEAL NLA - 135'' (3429 mm) long - Order Ref. 27

4

6667190

GUIDE PIN R.H.

5

6667191

GUIDE PIN L.H.

6

6667192

LATCH window

7

6667193

LATCH window

8

6667194

FRAME window

9

6667195

GLASS front

10

6667196

BOLT 5/8'' long

11

6667197

BOLT 3/4'' long

12

6648364

NUT

13

6664566

BOLT

14

6664108

BOLT

15

7031515

NUT Acorn 1/4'' - Was 6664056 - A

16

6667198

BOLT

17

6664065

WASHER

18

6664073

CLIP Ball Joint Retainer

19

6664085

BUSHING

20

6664103

NUT Acorn #10

21

30H18

CLAMP Harness

22

6667199

GAS SPRING

23

6667200

GASKET

24

6667201

SPACER

25

6667202

ROLLER

26

6648405

SEAL Bulk - Sold Per Foot

27

6664088

SEAL Bulk - Sold Per Foot
