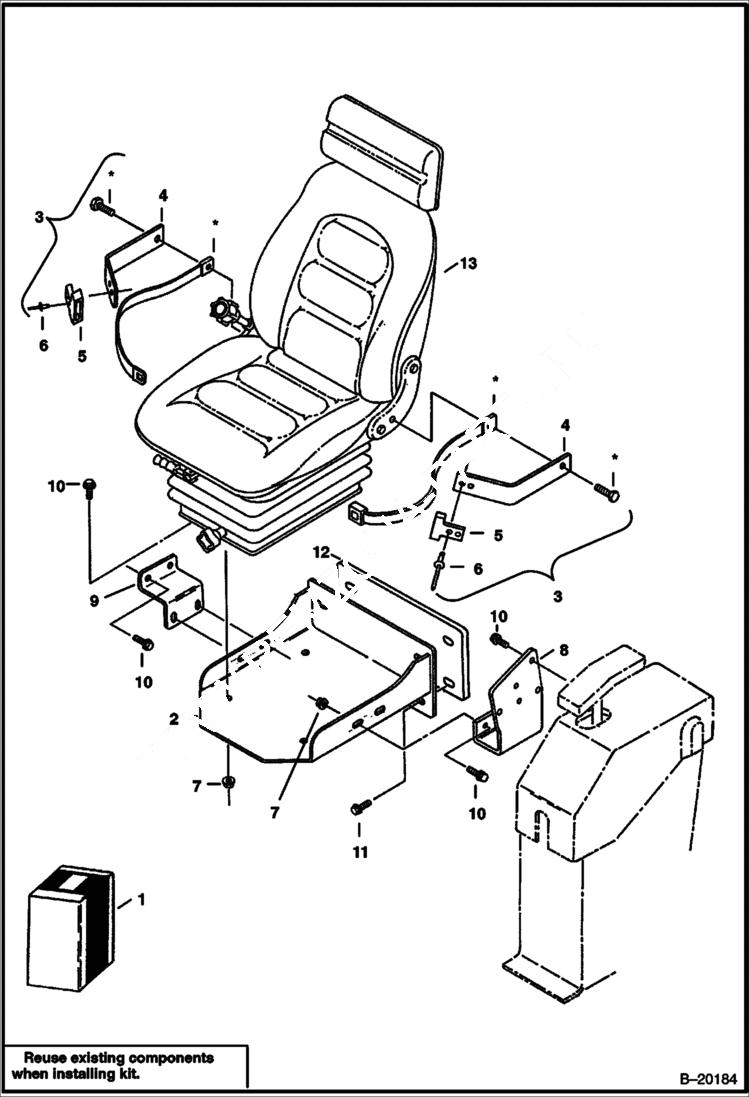

Запчасти Bobcat 325 SEAT MOUNTING KIT (For Installing Suspension Seat) ACCESSORIES & OPTIONS

1

6587039

KIT Seat Mounting - W/Refs. 2-12

2

6538710

MOUNT

3

6539096

GUIDE ASSY Seat Belt - W/Ref. 4-6

4

NSS NSS

5

GUIDE NLA - Order 6703703 - Was 6565355

6

6630207

RIVET 5

7

42DM8

NUT

8

6538739

BRACKET

9

6539826

BRACKET

10

29CM816

SCREW

11

29CM1030

BOLT

12

6787155

INSULATION

13

SEAT NLA - complete - cloth covered - not supplied with kit - order separately - order 6685657, redrill mounting holes as required - Was 6672519 - A

13

SEAT NLA - complete - vinyl covered - not supplied with kit - order separately - Order 6685657 & redrill mounting holes as required - Was 6672520 - A
