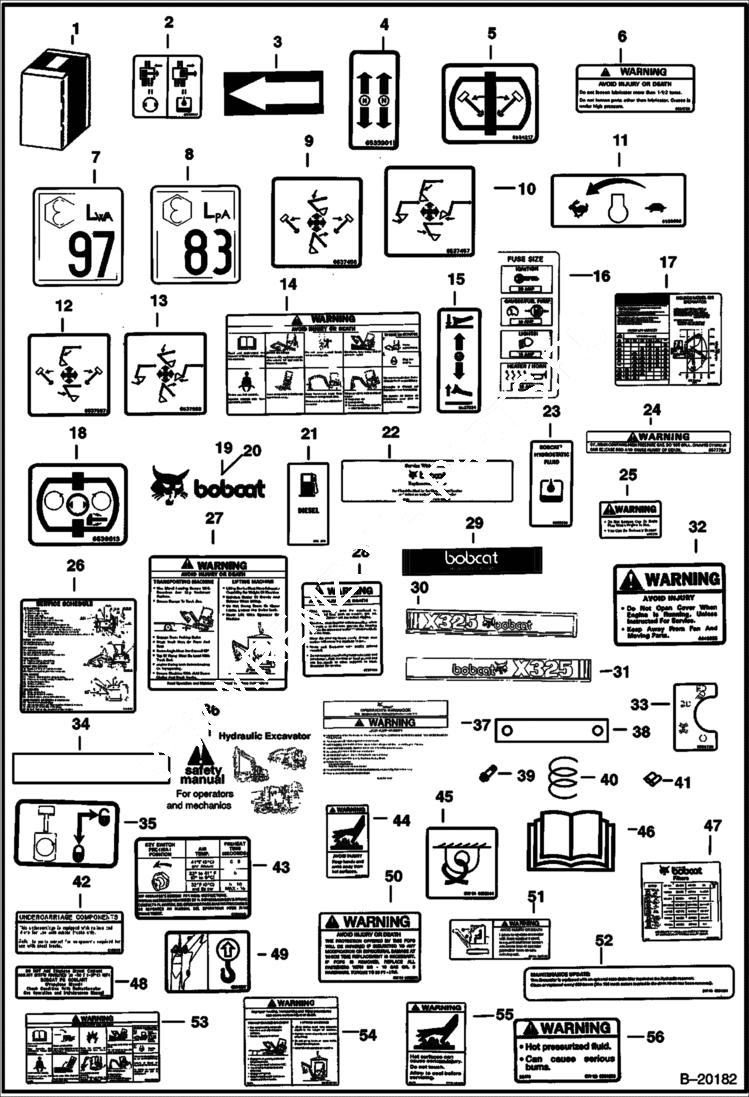

Запчасти Bobcat 325 DECALS ACCESSORIES & OPTIONS

1

6589070

KIT, DECAL Includes Refs. 2-35, 42- 46

2

6533897

DECAL Hook

2

6805257

VALVE ASSY See Illustration SELECTOR VALVE ASSY/ TS1353 - selector - Was 6597401 - A

3

6533899

DECAL Arrow

4

6533901

DECAL Drive

5

6534217

DECAL Boom Swing

6

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

7

6535310

DECAL Noise Warning (97)

8

6579399

DECAL Noise Warning (81)

9

6589842

DECAL Control - LH Standard Control Pattern

10

6589843

DECAL Control - RH Standard Control Pattern

11

6537475

DECAL Engine Speed

12

6589741

DECAL Control - LH ISO Control Pattern

13

6589740

DECAL Control - RH ISO Control Pattern

14

DECAL NLA - Warning - Order Ref. 53 - Was 6588380 - A

15

6537634

DECAL Blade

16

6588921

DECAL Fuse

17

6589744

DECAL Lift Capacity

18

6539813

DECAL Valve

19

6560986

DECAL, LOGO BOBCAT AND HEAD opposite of shown

20

6560987

DECAL Logo - Shown

21

6589739

DECAL Diesel

22

6565200

DECAL, FILTER

23

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

24

6577754

DECAL, WARNING 5 gas spring

25

DECAL NLA - Warning - Order Ref. 56 - Was 6643356 - A

26

6588722

DECAL Service Schedule

27

DECAL NLA - Warning - Order Ref. 54 - Was 6588382 - A

28

DECAL NLA - Warning - Order Ref. 53 & 54 - Also see Ref. 14 & 27 - Was 6587139 - A

29

DECAL NLA - Rear Logo - Was 6628509 - A

30

6588724

DECAL RH Model

31

6588725

DECAL LH Model

32

6643355

DECAL Warning

33

6588730

DECAL Light

34

6593245

TREAD

35

6587247

DECAL

36

6570354

MANUAL Safety

37

6900463

HANDBOOK Operators-English-Was 6596919 - A

38

6589347

STRAP Elastic - for hold the Operators Handbook

39

29CM812

BOLT

40

6558309

WIRE ROPE 46'' (1179mm) long - Bulk - Sold Per Foot - Also Order (2) of 6558310 Sleeve

41

6558310

SLEEVE

42

6589129

DECAL Track, Rubber

43

6589059

DECAL Pre-Heat

44

6727595

DECAL Was 6595014 - A

45

DECAL NLA - Warning - Order Ref. 55 - Was 6589697 - A

46

6707971

DECAL

47

6595015

DECAL CE94 - Not Used on Models Sold in the U.S.

48

6708929

DECAL, COOLANT propylene glycol

49

6596361

DECAL Warning ROPS

50

6596261

DECAL Warning - FOPS

51

6596163

DECAL Warning - FOGS

52

6801201

DECAL Service Filter

53

6807776

DECAL warning - Was 6804230 - A

54

6804231

DECAL warning

55

6804232

DECAL warning

56

6804233

DECAL warning
