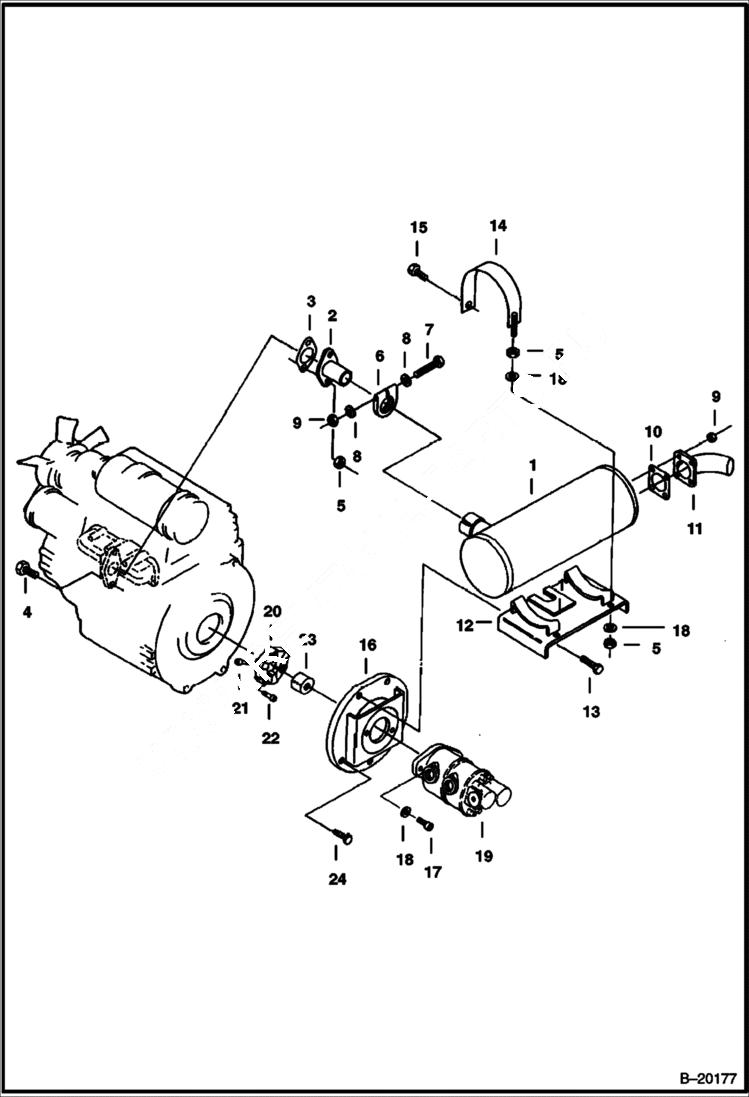

Запчасти Bobcat 325 MUFFLER & POWER TAKE OFF POWER UNIT

1

6653955

MUFFLER Non Spark Arrestor

1

6664005

PURIFIER Exhaust

2

6655405

PIPE Flange

3

3974507

GASKET See Illustration UPPER GASKET KIT/ C3221 - Included W/upper gasket kit

4

1CM1030

BOLT

5

1DM10

NUT

6

6651933

CLAMP

7

6651934

BOLT

8

15EM80

WASHER

9

1DM8

NUT

10

6727753

GASKET See Illustration LOWER GASKET KIT/ C3220 Included W/upper gasket kit - Was 6653956 - A

11

6588635

PIPE Exhaust

12

6535658

BRACKET Muffler

13

5CM1030

BOLT

14

6537535

CLAMP

15

1CM1020

BOLT

16

6535661

MOUNT Pump

17

3GM1025

BOLT

18

17EM100

WASHER

19

PUMP See Illustration TRIPLE GEAR PUMP/ B20174 See Illustration GEAR PUMP/ B18150

20

6660771

COUPLING Pump - W/Ref. 21 & 22

21

6537441

BOLT

22

BOLT NLA - Was 6537500 - A

23

6537440

COUPLING

24

5CM1020

SCREW
