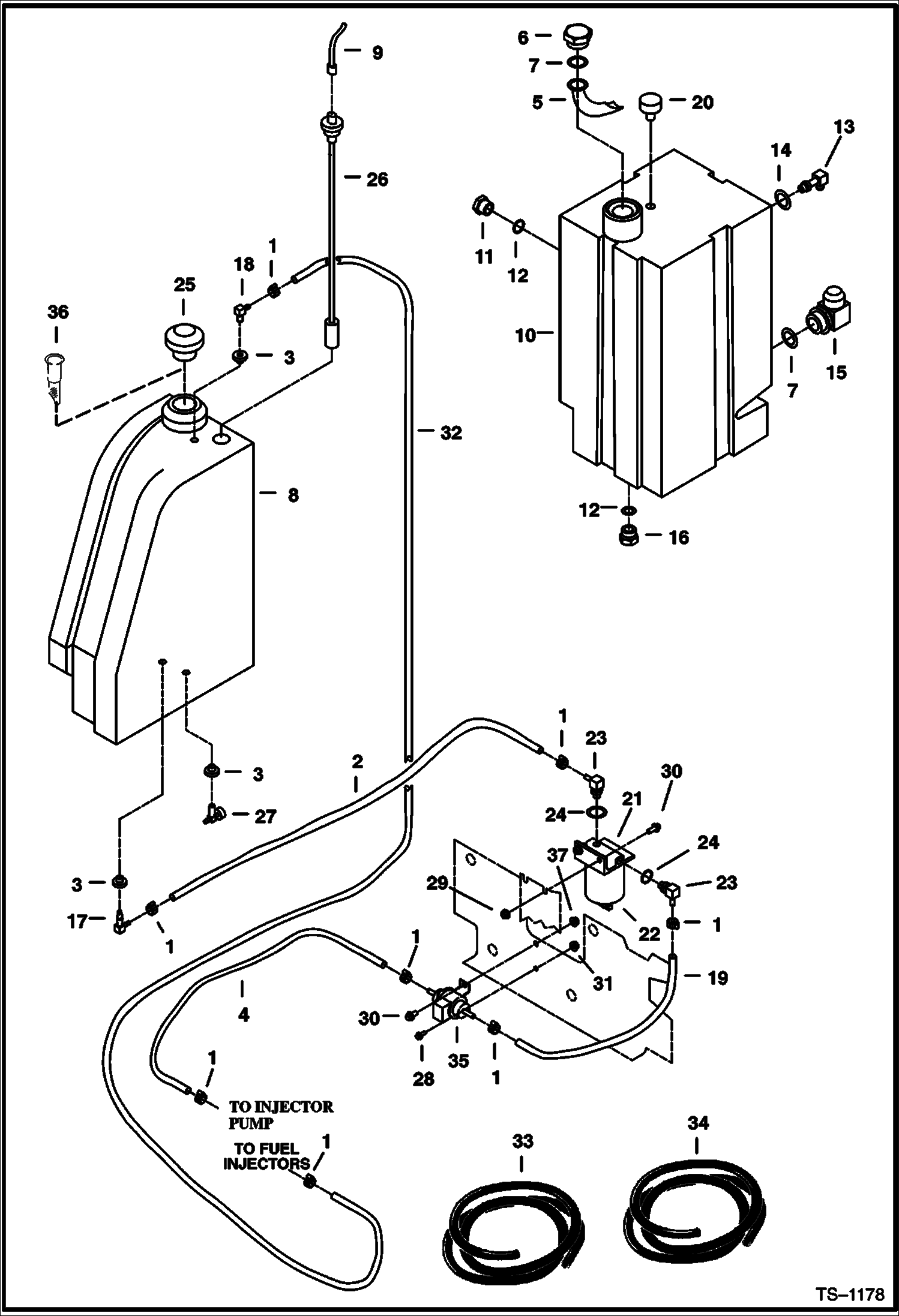

Запчасти Bobcat 325 FUEL SYSTEM AND TANKS POWER UNIT

1

42HS04

CLAMP, HOSE Was 6515575 - A

2

HOSE NLA - 73'' (1850 mm) long - Order Ref. 33

3

6553411

BUSHING 0.38'' ID

4

HOSE NLA - 18'' (460 mm) long - Order Ref. 33

5

7134222

SCREEN fill - Was 6587168 - A

6

6587467

PLUG W/Ref. 7

7

79K20

O RING 10

8

TANK NLA - Order 6589025 (1) ,6588783 (1), 6664445 (1) and 24'' (620mm) of 6632217

8

6589025

TANK Fuel

9

6588351

HARNESS Fuel Sender

10

TANK NLA - Order 6587542, tank, Also order Ref. 11-16 - Was 6587542 - A

11

6665915

GAUGE Was 6656338 - A

12

79K12

O RING 10

13

6558510

ELBOW W/Ref. 14

14

79K6

O RING 10

15

17K11

FITTING W/Ref. 7

16

24K8

PLUG W/Ref. 12

17

6598908

ELBOW Was 6681462 - A

18

6630041

ELBOW

19

HOSE NLA - 8 1/2'' (220 mm) long - Order Ref. 33

20

7025626

VENT, BREATHER - Was 6684923 - A

21

6667353

FILTER ASSY Assy. - W/Ref. 22 - Was 6657020 - A

21

6658180

PLUG, BLEED

22

6667352

FILTER, FUEL W/SEPARATOR 12 Was 6647773 - A

23

ELBOW NLA - W/Ref. 24 - flat boss face - Was 6657083 - A

23

6715183

ELBOW W/Ref. 24 - check boss face to determine correct replacement o-ring

24

79K5

O RING 10 flat boss face

24

99K5

O-RING tapered boss face

25

6665423

CAP Fuel - Was 6661114 - B

26

6662220

SENDER - Fuel Level - includes O-Ring

26

6664445

SENDER Fuel Level - includes O-Ring

26

79K14

O RING 10 Was 26K-40102 - B

27

6663951

VALVE Shut Off

28

29CM620

SCREW Was 29CM00616B - B

29

42DM8

NUT

30

29CM820

SCREW

31

49DM6

NUT

32

HOSE NLA - 97'' (2465 mm) long - Order Ref. 34

33

6577822

HOSE bulk - sold per foot

34

6578169

HOSE bulk - sold per foot - 0.19'' ID

35

3975370

PUMP FUEL Fuel

36

6595036

SCREEN Fuel - Not Supplied With Excavator - Available Thru Chicago Parts Only

37

49DM8

NUT
