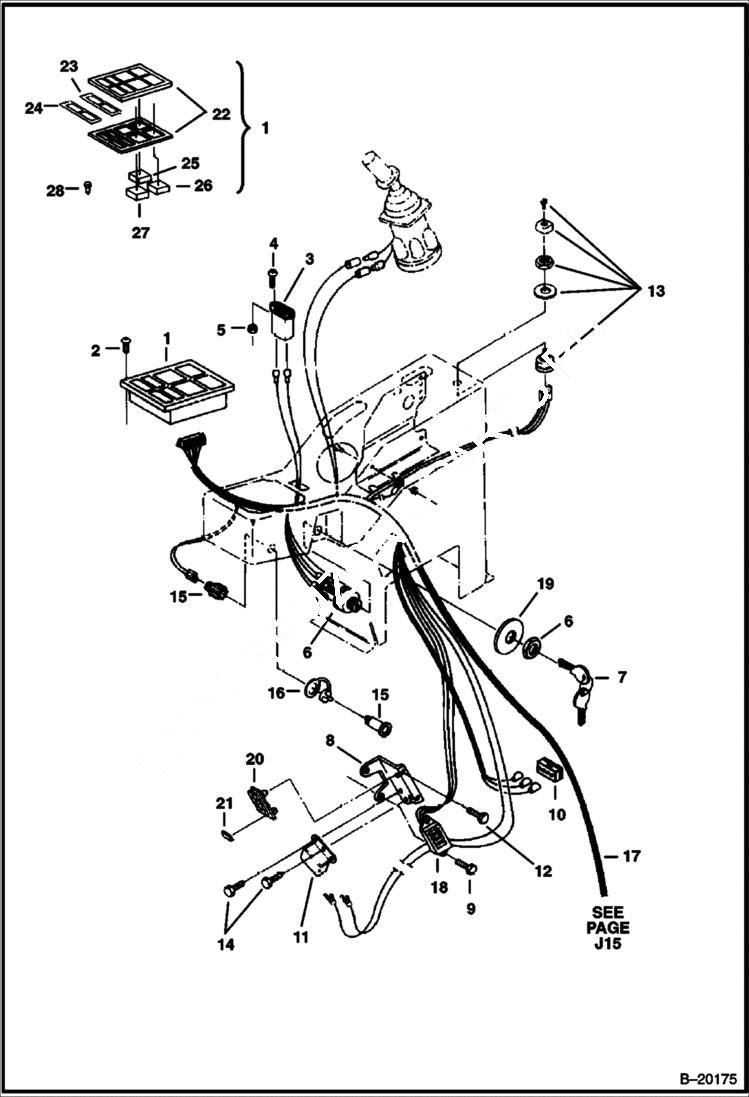

Запчасти Bobcat 325 ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

6664268

PANEL Dash - W/Refs. 22-28

2

23GM520

BOLT

3

6664886

HOURMETER Was 6631657 - A

4

87G610

SCREW

5

12D6

NUT 10

6

SWITCH See BTIE-041 - NLA - Ignition - Key Cut Code PK 510 - Was 6661613

6

6666548

SWITCH See BTIE-041 - Ignition - Key cut code PK 510

7

6587458

KEY Ignition - Key Cut Code PK 510

8

6537536

BRACKET

9

1CM516

BOLT

10

6673122

TIMER Timed - Start-Up Check, Fuel Level, Oil Press. & Water Temp. Lights - Was 6668736 - B

11

6644960

BUZZER Warning - Activates W/Water Temp. & Oil Press. Lights

12

1CM816

BOLT

13

6512808

SWITCH Light

14

1CM610

BOLT

15

6664223

OUTLET Accessory

16

6664224

CAP Outlet

17

6589318

HARNESS Main - Was 6588710 - A

17

3675725

DIODE

18

6645835

BLOCK Incl. W/Ref. 17

19

6537439

PLATE Ignition Switch - used with ignition switch NLA/6661613

19

6596217

PLATE Ignition Switch - used with ignition switch 6666548

20

HOLDER NLA - Spare Fuse - Was 6649124 - A

21

6654803

FUSE 5A

21

6654805

FUSE 10A Was 6961388 - A

21

6654806

FUSE, 15A

21

6625575

FUSE, 20A

21

6625597

FUSE 30 amp.

22

6664022

COVER Lens - W/Gasket

23

LENS NLA - warning lights - fuel & brake - Was 6661205 - A

24

6661204

LENS Warning Lights - Oil Pressure & Glow Plugs

25

6664269

FUEL GAUGE

26

6661203

TEMP. GAUGE Coolant

27

6661201

VOLTMETER

28

6665127

BULB Warning Temps and Back Light (#194)
