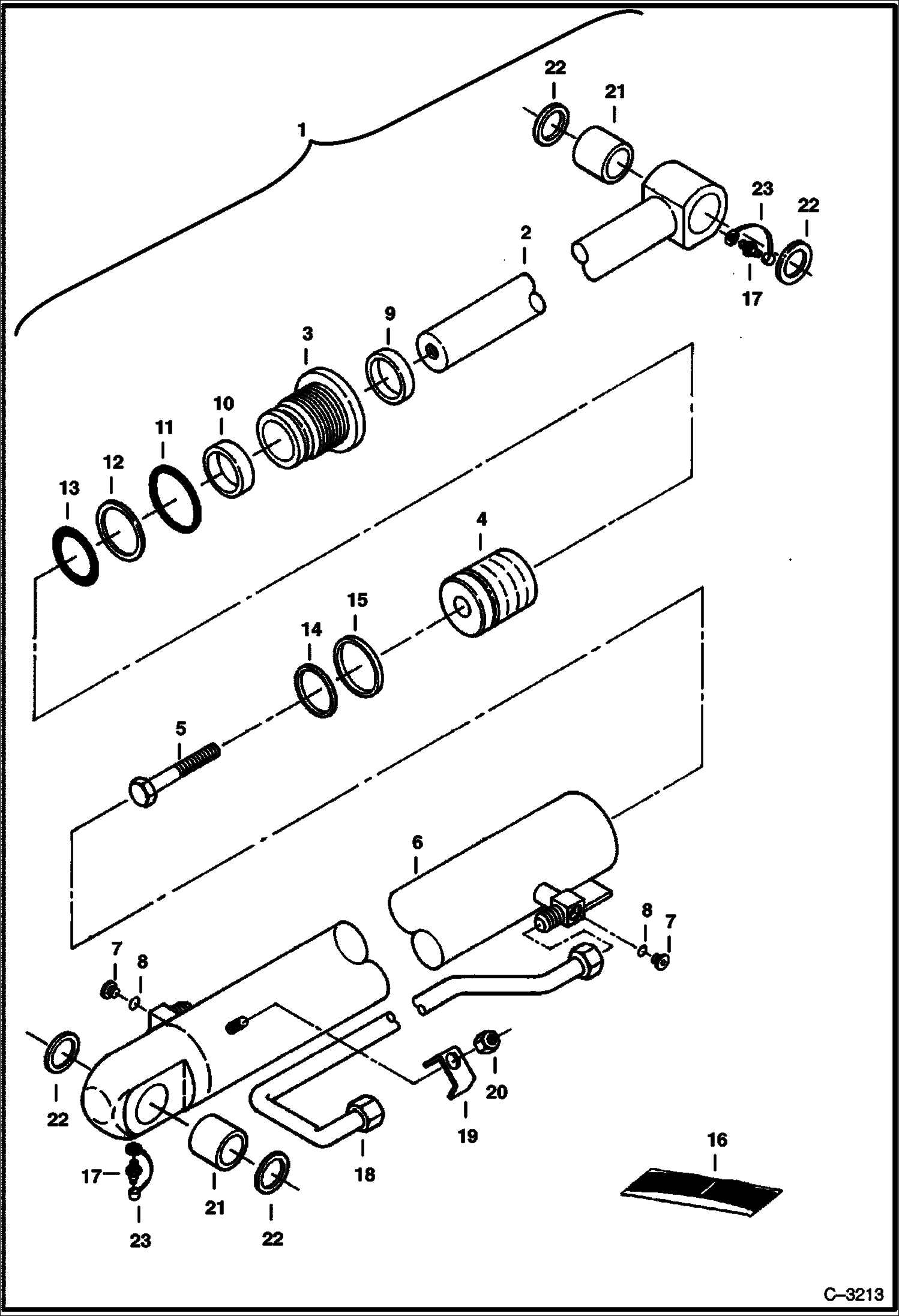

Запчасти Bobcat 325 BOOM CYLINDER HYDRAULIC SYSTEM

1

6586726

CYLINDER Ref. 2-15, 21 & 22

2

6537051

ROD W/Ref. 21 & 22

3

6586718

HEAD, CYL TILT

4

6537774

PISTON

5

6586508

SCREW

6

6537889

HOUSING W/Ref. 7, 21 & 22

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A

7

90KV2

PLUG tapered boss face - Was 90KV00005B - D

8

79K6

O RING 10 for flat boss face

8

95K6

O'RING for tapered boss face

9

RING NSS - Wiper

10

SEAL NSS

11

O-RING NSS

12

BACK-UP RING NSS

13

O-RING NSS

14

O-RING NSS

15

RING NSS

16

6589796

SEAL KIT Ref. 9-15 - Was 6587987 - A

17

10H25

FITTING, GREASE 5

18

6536986

TUBE

19

6562266

CLAMP

20

1DM10

NUT

21

6537098

BUSHING

22

6652915

SEAL, OIL

23

6652943

COVER grease fitting
