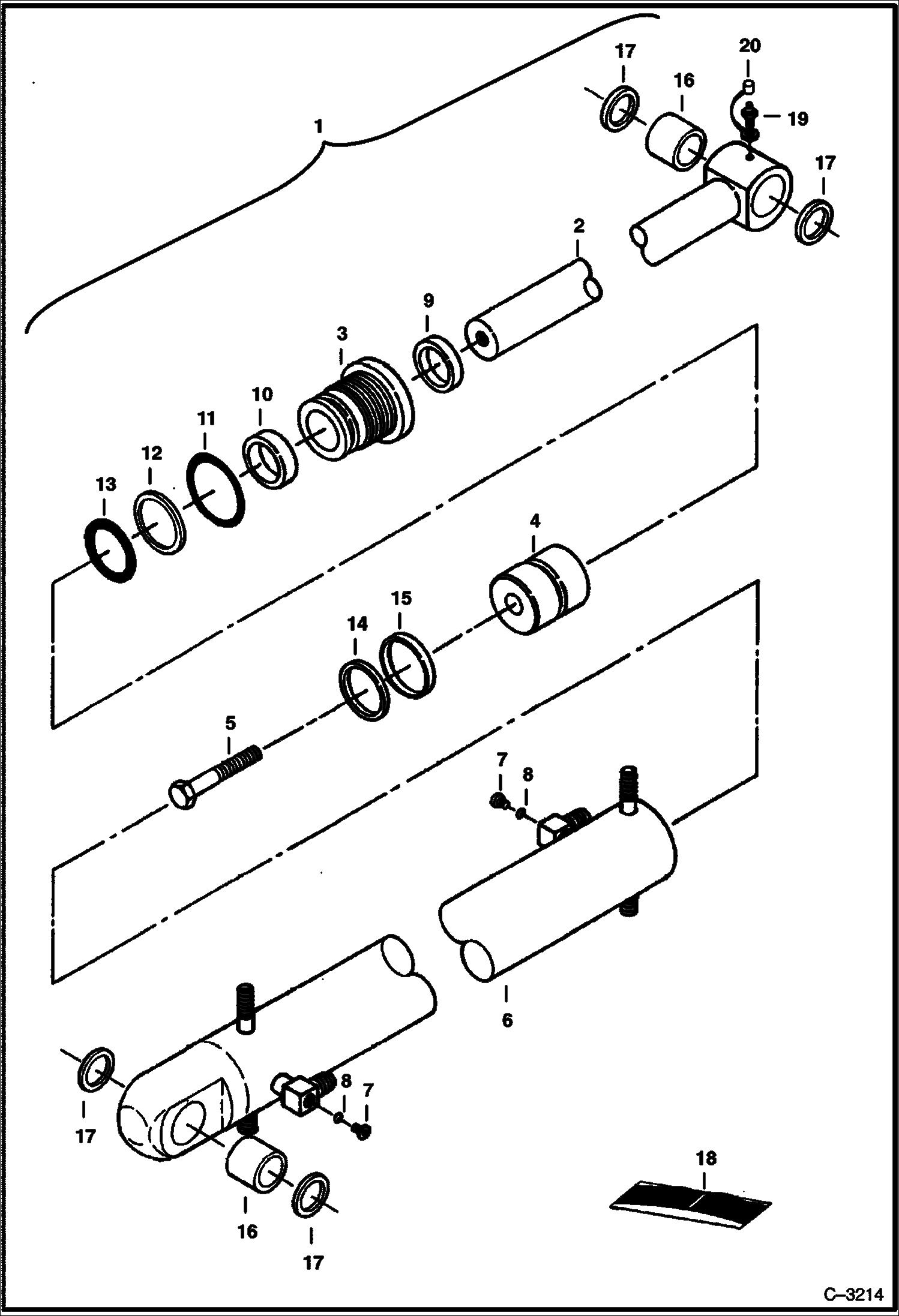

Запчасти Bobcat 325 BLADE CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-17 - order 6596045 - Was 6538976 - A

2

6536390

ROD W/Ref. 16 & 17

3

6586718

HEAD, CYL TILT

4

6536389

PISTON

5

6539091

BOLT 2.75 inch long

6

HOUSING NLA - W/Ref. 16 & 17 - Order cylinder assy 6596045 - Was 6536385 - A

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A

7

90KV2

PLUG tapered boss face - Was 90KV00005B - D

8

79K3

O RING 10 for flat boss face

8

95K3

O'RING for tapered boss face

9

RING NSS - Wiper

10

SEAL NSS

11

O-RING NSS

12

RING NSS - Back-Up

13

O-RING NSS

14

O-RING NSS

15

RING NSS

16

6537098

BUSHING

17

6652915

SEAL, OIL

18

6589796

SEAL KIT Ref. 9-15 - Was 6587987 - A

19

10H25

FITTING, GREASE 5

20

6652943

COVER grease fitting
