Запчасти Bobcat 325 VALVE SECTION (Boom, Bucket & Arm) (S/N 511820520 & Above) HYDRAULIC SYSTEM

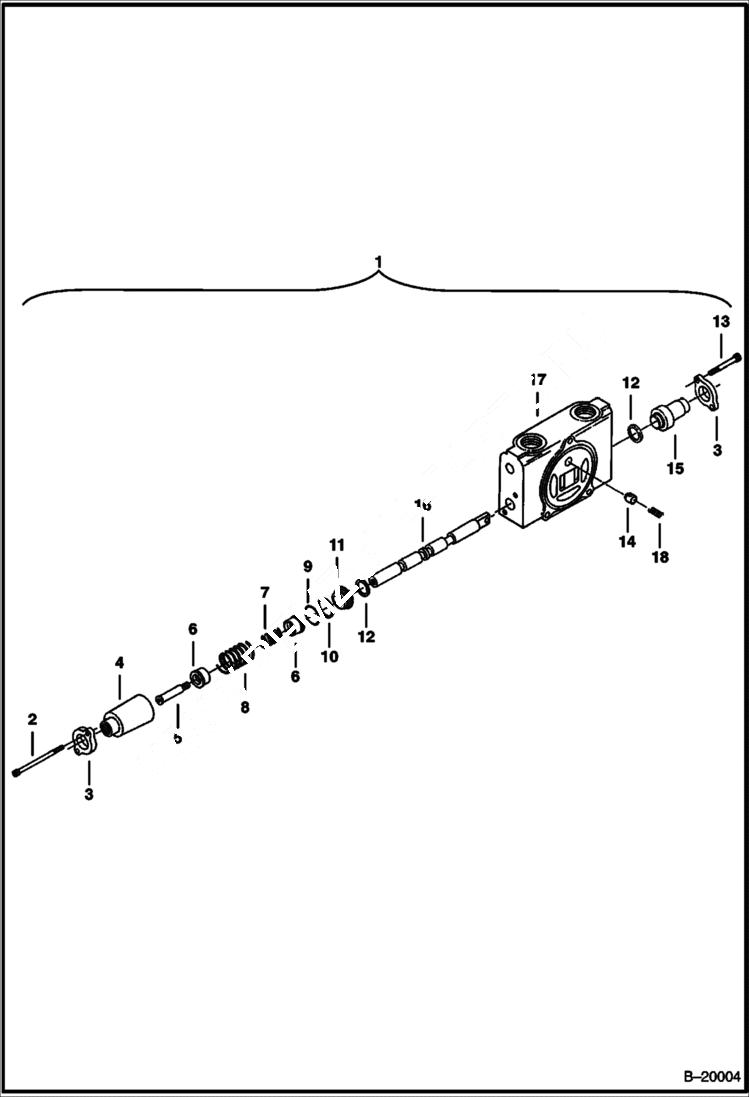

Схема запчастей Bobcat 325 - VALVE SECTION (Boom, Bucket & Arm) (S/N 511820520 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6665453

VALVE Section - Boom - W/Ref. 2-18

1

6665454

VALVE Section - Bucket - W/Ref. 2-18

1

6665451

VALVE Section - Arm - W/Ref. 2-18

2

6665439

SCREW

3

6665442

PLATE

4

6665440

END COVER

5

6665444

BOLT

6

6665446

SEAT Spring

7

6665448

SPRING Inner

8

6665447

SPRING Outer

9

6665435

O-RING

10

6665445

BACK-UP RING

11

6665443

RETAINER

12

25K20026

O RING 10 Was 6665432 - A

13

73G424

SCREW

14

6630965

POPPET

15

6665441

END COVER

16

SPOOL NSS - Order Ref. 1

17

HOUSING NSS - Order Ref. 1

18

6630966

SPRING

Выбрано товаров: 20
