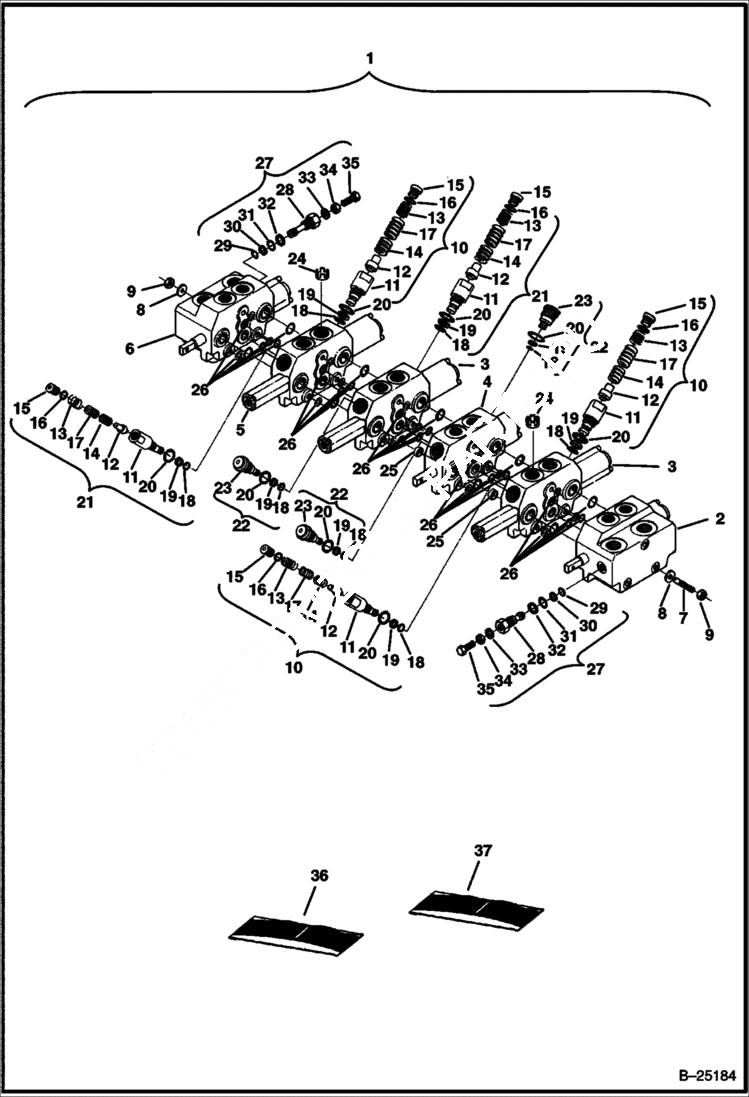

Запчасти Bobcat 325 CONTROL VALVE ASSY (6-Spool) (S/N 511820001-511820519) HYDRAULIC SYSTEM

1

6656151

VALVE Assy. - W/Refs. 2-35

2

6658312

VALVE See Illustration INLET VALVE SECTION/ C3230 - LH Travel

3

6658311

VALVE See Illustration VALVE SECTION/ D2100 - arm or bucket

4

6658310

VALVE See Illustration VALVE SECTION/ B26219 - auxiliary

5

6658309

VALVE See Illustration VALVE SECTION/ D2100 - boom

6

6658313

VALVE See Illustration INLET VALVE SECTION/ D2101 - RH Travel

7

6658307

TIE ROD Includes 3 Tie Rods

8

6658320

WASHER

9

6658322

NUT

10

6658316

RELIEF VALVE W/Refs. 11-20 - Set at 2900/3000 PSI

11

HOUSING NSS

12

POPPET NSS

13

SPRING NSS

14

SHIM NSS - .021 inch

15

6656446

PLUG W/Ref. 16

16

6656432

O-RING Included W/Ref. 36

17

SHIM NSS - .0035 inch - Included W/Ref. 36

18

6658344

O-RING Included W/Ref. 36

19

6658343

BACK-UP RING Included W/Ref. 36

20

6656437

O-RING Included W/Ref. 36

21

6658315

RELIEF VALVE W/Refs. 11-20 - Set at 3350-3450 PSI

22

6658314

RELIEF PLUG W/Refs. 18-20 & 23

23

HOUSING NSS

24

6658308

PLATE Orifice (.125'' Dia.)

25

6658317

PLUG

26

6658319

SEAL KIT

27

6658416

RELIEF VALVE W/Refs. 28-35 - Set at 2300-2400 PSI

28

HOUSING NSS

29

O-RING NSS - Included W/Ref. 37

30

BACK-UP RING NSS - Included W/Ref. 37

31

O-RING NSS - Included W/Ref. 37

32

BACK-UP RING NSS - Included W/Ref. 37

33

RING NSS - Included W/Ref. 37

34

NUT NSS

35

BOLT NSS

36

6720980

SEAL KIT W/Refs. 18, 19 & 20

37

6656281

SEAL KIT W/Refs. 29-33
