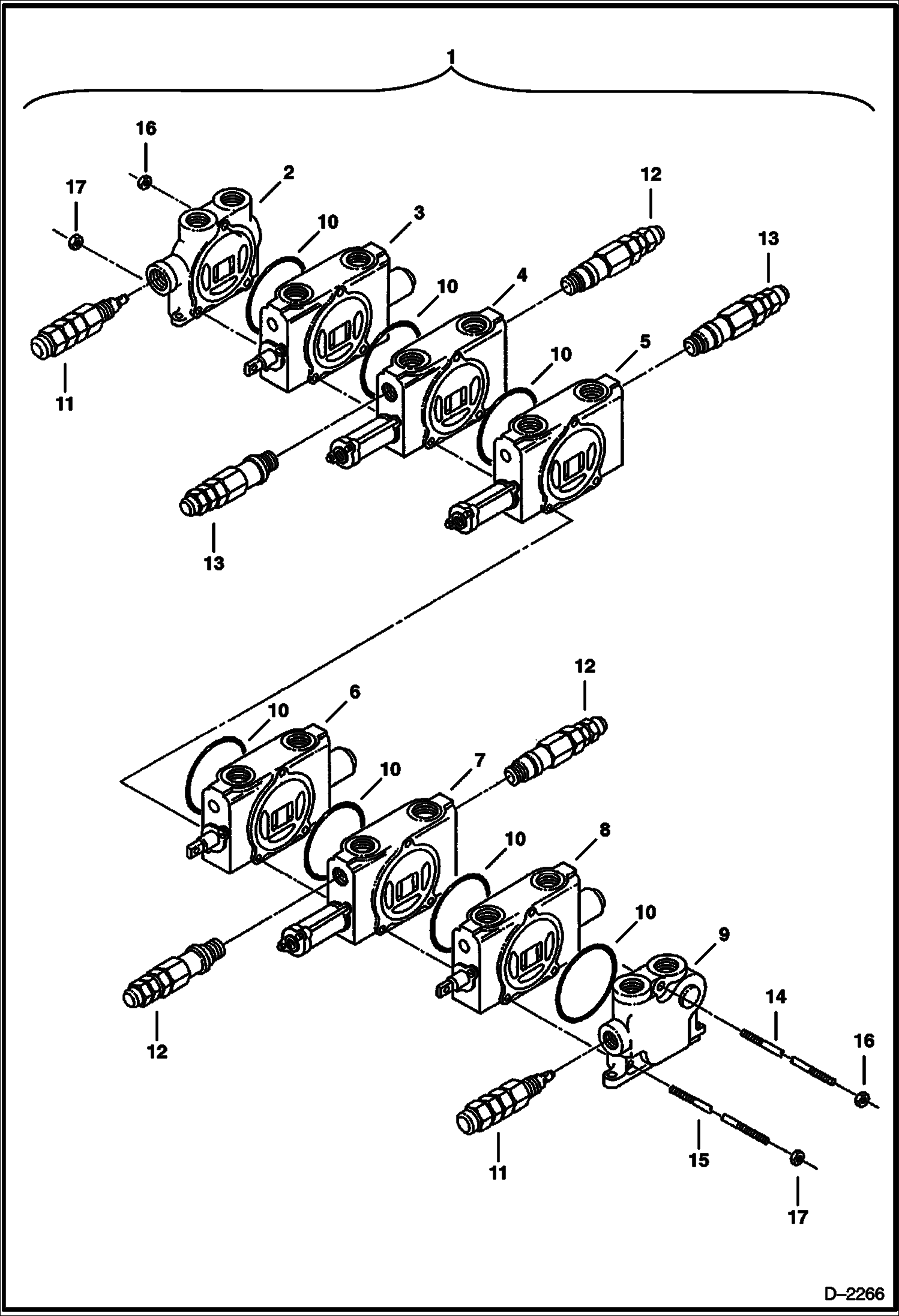

Запчасти Bobcat 325 CONTROL VALVE ASSY (6 Spool) (S/N 511820520 & Above) HYDRAULIC SYSTEM

1

6665003

VALVE 6 Spool- W/Ref. 2-17

2

6651869

SECTION

3

6665450

VALVE See Illustration VALVE SECTION/ B20002 - Section - RH Travel

4

6665453

VALVE See Illustration VALVE SECTION/ B20004 - section - Boom

5

6665454

VALVE See Illustration VALVE SECTION/ B20004 - section - Bucket

6

6665452

VALVE See Illustration VALVE SECTION/ B20003 - section - Auxiliary

7

6665451

VALVE See Illustration VALVE SECTION/ B20004 - section - Arm

8

6665455

VALVE See Illustration VALVE SECTION/ B20002 - section - LH Travel

9

6671683

INLET Was 6665449 - A

10

58K228

O RING 10 Was 6646691 - A

11

6665438

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 - set at 2400 PSI (16552 KPA) @ 7GPM

12

6674259

VALVE See Illustration RELIEF VALVE/ C3361 - set at 2950 PSI ( 20345 KPA) - Was 6665436 - A

14

6514391

BOLT

15

6514392

TIE BOLT

16

62D6

NUT 5

17

61D5

NUT
