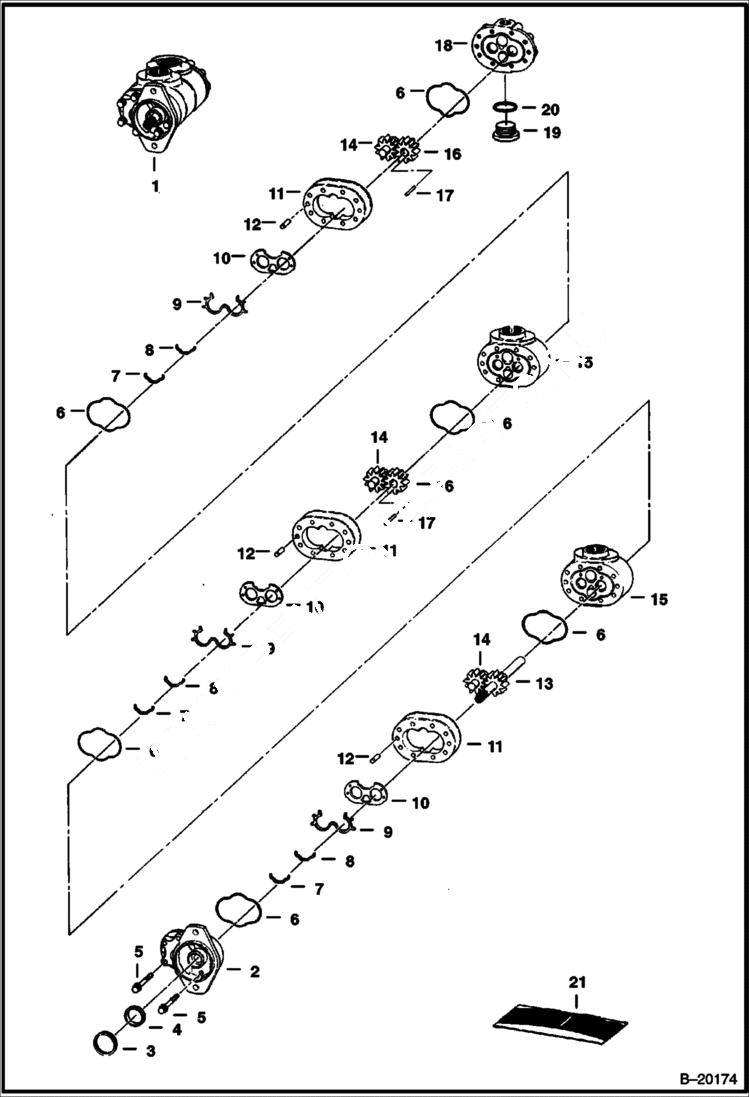

Запчасти Bobcat 325 TRIPLE GEAR PUMP (S/N 511820001-20408) HYDRAULIC SYSTEM

1

PUMP NLA - Assy. - W/Ref. 2-20 - Order 6665107 & (2) 6587972 fitting - Was 6657194 - A

2

PLATE NLA - front - Was 6648916 - A

3

SEAL NSS

4

WASHER NSS

5

BOLT NSS - Was 6658431 - A

6

O-RING NSS

7

GASKET NSS

8

O-RING NSS - Molded

9

SEAL NSS

10

PLATE NSS - Wear

11

6631916

BODY W/Ref. 12

12

455536

DOWEL

13

SHAFT NLA - Input - W/Gear - Order (1) 6665107 & (2) 6587972 - A

14

6631913

GEAR Idler

15

6650614

PLATE Adapter

16

6631917

GEAR Slip

17

6631924

KEY

18

6631025

PLATE Back

19

6657388

PLUG

20

79K16

O RING 10

21

6658961

SEAL KIT W/Ref. 3, 4, 6-10 & 20
