Запчасти Bobcat 325 R.H. JOYSTICK CONTROLS (Bucket & Arm) (Standard Control Pattern) (S/N 511820520 & Above) HYDRAULIC SYSTEM

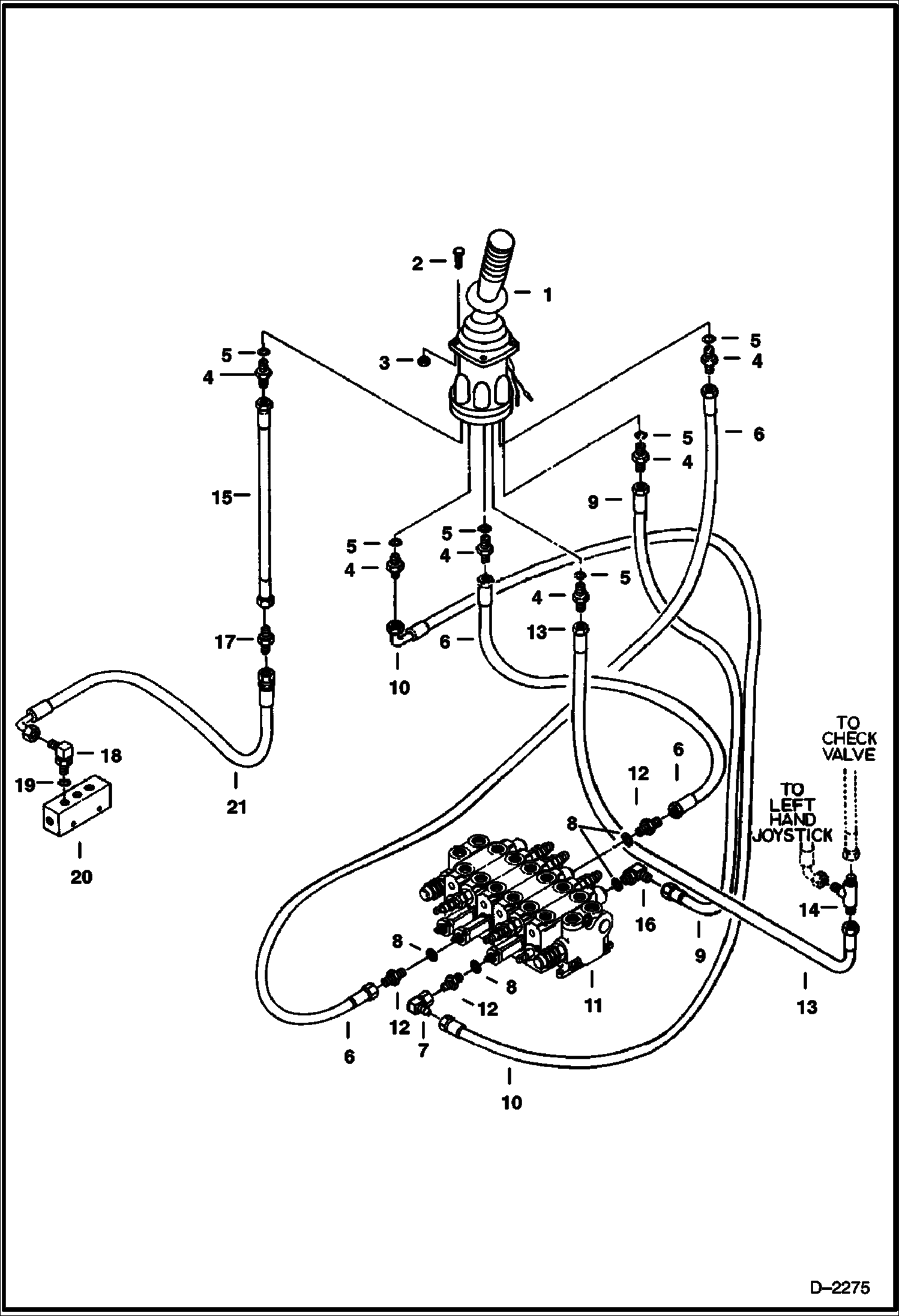

Схема запчастей Bobcat 325 - R.H. JOYSTICK CONTROLS (Bucket & Arm) (Standard Control Pattern) (S/N 511820520 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6654120

JOYSTICK ASSY. See Illustration R.H. JOYSTICK CONTROLS/ D1972 - RH

2

1CM625

BOLT

3

1DM6

NUT

4

6654895

ADAPTER W/Ref. 5

5

6655244

O-RING

6

6536792

HOSE

7

11K3

ELBOW

8

79K4

O RING 10

9

6536786

HOSE

10

6536791

HOSE

11

6656151

VALVE See Illustration CONTROL VALVE ASSY/ B25184 - control

11

6665003

VALVE See Illustration CONTROL VALVE ASSY/ D2266 - control

12

15K3

CONNECTOR W/Ref. 8

13

6536788

HOSE

14

10K5

TEE

15

6536789

HOSE

16

17K3

ELBOW W/Ref. 8

17

87F5

FITTING

18

17K5

ELBOW W/Ref. 19

19

79K6

O RING 10

20

6667829

BLOCK Drain - Was 6587437 - A

21

6640724

HOSE

Выбрано товаров: 22
