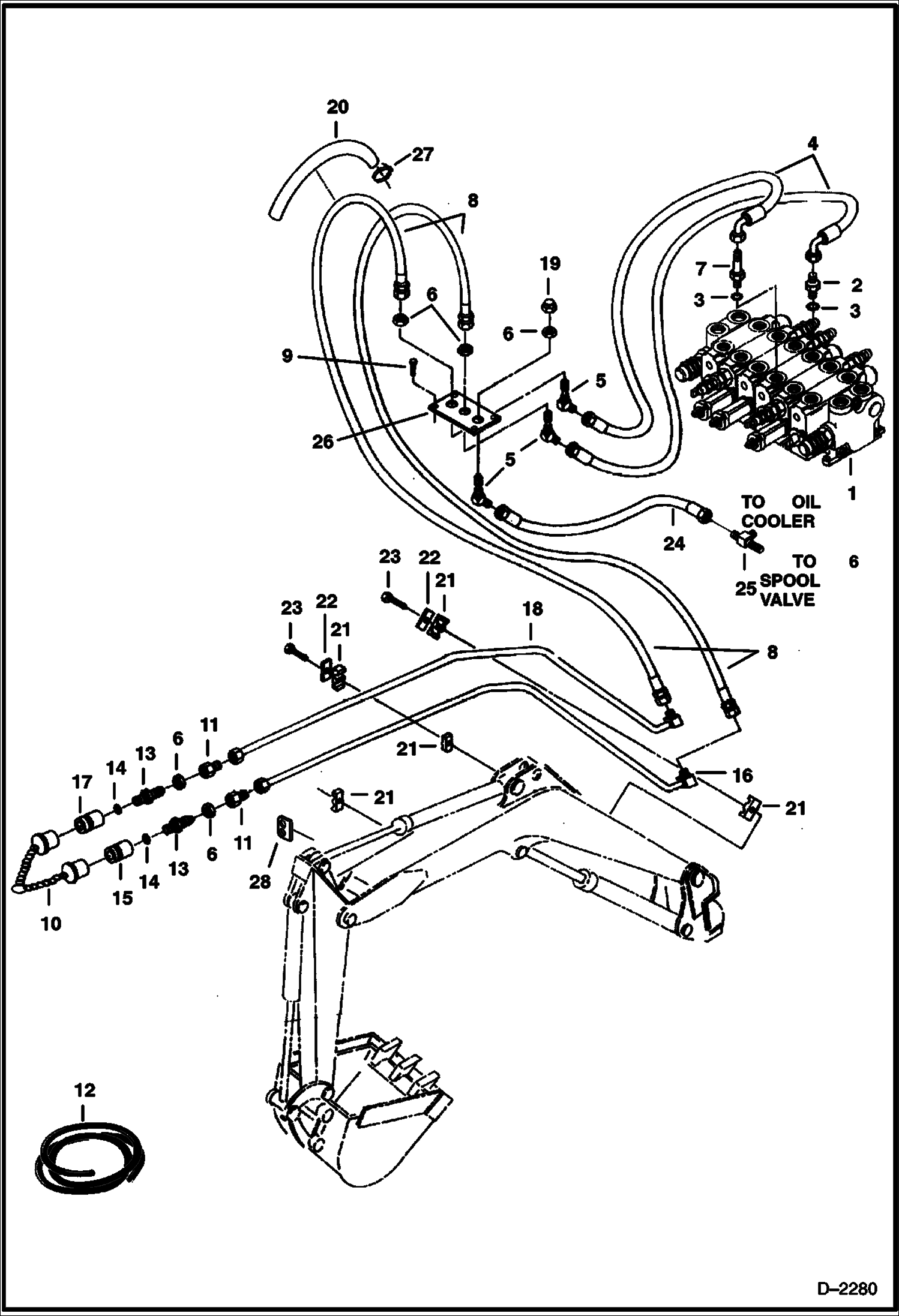

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Valve to Auxiliary) (S/N 511820520 & Above) HYDRAULIC SYSTEM

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

6537669

HOSE

5

46K7

ELBOW Bulkhead

6

86F7

LOCK NUT

7

16K6

FITTING W/Ref. 3

8

6537620

HOSE

9

1CM1025

BOLT

10

6513709

CAP PLUG Coupler

11

6660224

ADAPTER

12

6652367

HOSE COVER 1.50'' ID - bulk - sold per foot

13

45K7

CONNECTR Bulkhead

14

79K10

O RING 10

15

6598757

COUPLER, POPPET MALE straight

16

6586353

TUBE

17

6598758

COUPLER, POPPET FEMALE straight

17

48K16

O RING 10

17

6665430

BACKUP RING

18

6586352

TUBE

19

36K7

FITTING

20

COVER NLA - 73'' long - Order Ref. 12

21

6656023

CLAMP

22

6653493

COVER

23

1CM840

BOLT Was 1C000532B - B

24

6537666

HOSE

25

6706172

TEE Bulkhead

26

6588695

PLATE

27

6665221

CABLE TIE Metal - Requires Tool MEL-1427 to Install Cable Tie - Was 6610510 - A

28

6589353

PLATE Welded on the boom
