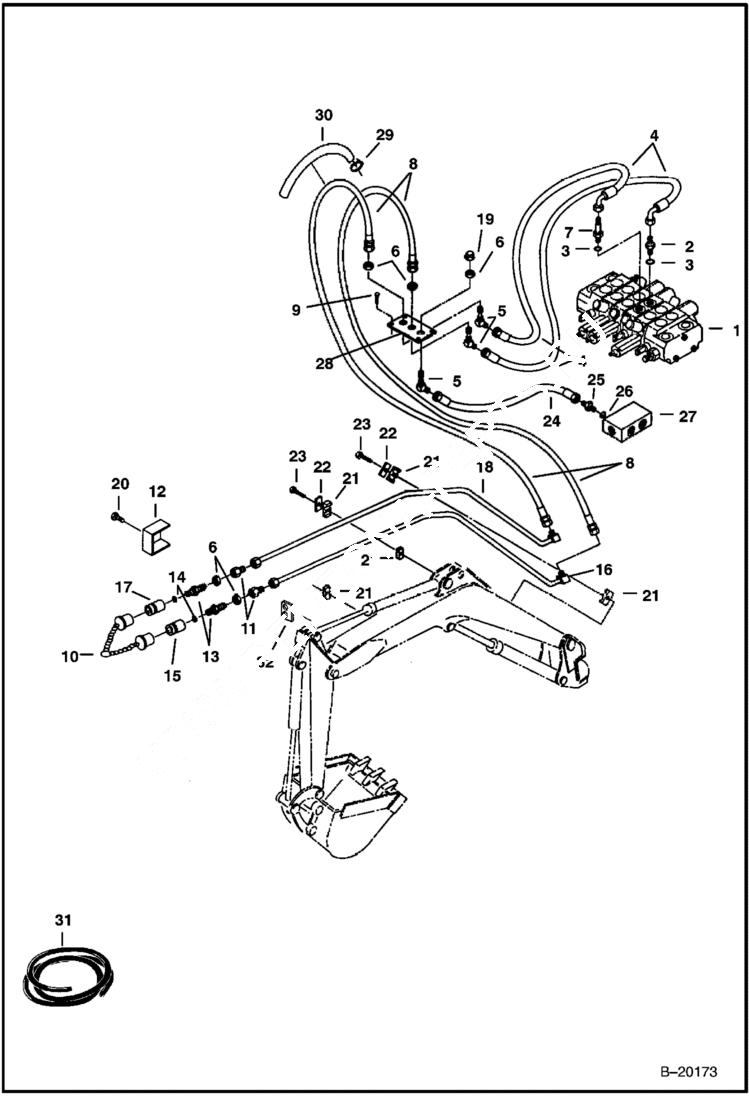

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Valve to Auxiliary) (S/N 511820001-511820519) HYDRAULIC SYSTEM

1

6656151

VALVE See Illustration CONTROL VALVE ASSY/ B25184 - control

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

6537669

HOSE

5

46K7

ELBOW Bulkhead

6

86F7

LOCK NUT

7

16K6

FITTING W/Ref. 3

8

6589720

HOSE W/Hose Cover - Was 6587920 - A

9

29CM1025

BOLT Was 1CM01025B - A

10

6513709

CAP PLUG Coupler

11

6660224

ADAPTER

12

6538403

COVER Not Used on Later Models

13

45K7

CONNECTR Bulkhead

14

79K10

O RING 10

15

6598757

COUPLER, POPPET MALE straight

16

6586353

TUBE

17

6598758

COUPLER, POPPET FEMALE straight

17

48K16

O RING 10

17

6665430

BACKUP RING

18

6586352

TUBE

19

36K7

FITTING

20

29CM1020

BOLT Was 1CM01020B - A

21

6656023

CLAMP

22

6653493

COVER

23

17C532

BOLT 5 Was 1C532 - D

23

1CM840

BOLT Metric Thread

24

6537666

HOSE

25

15K8

FITTING W/Ref. 26

26

79K12

O RING 10

27

6537517

MANIFOLD drain

28

6588695

PLATE

29

6665221

CABLE TIE Metal - Requires Tool MEL-1427 to install Cable Tie - Was 6610510 - B

30

COVER NLA - 73'' long - Order Ref. 31

31

6652367

HOSE COVER 1.50'' ID - Bulk - Sold Per Foot

32

6589353

PLATE
