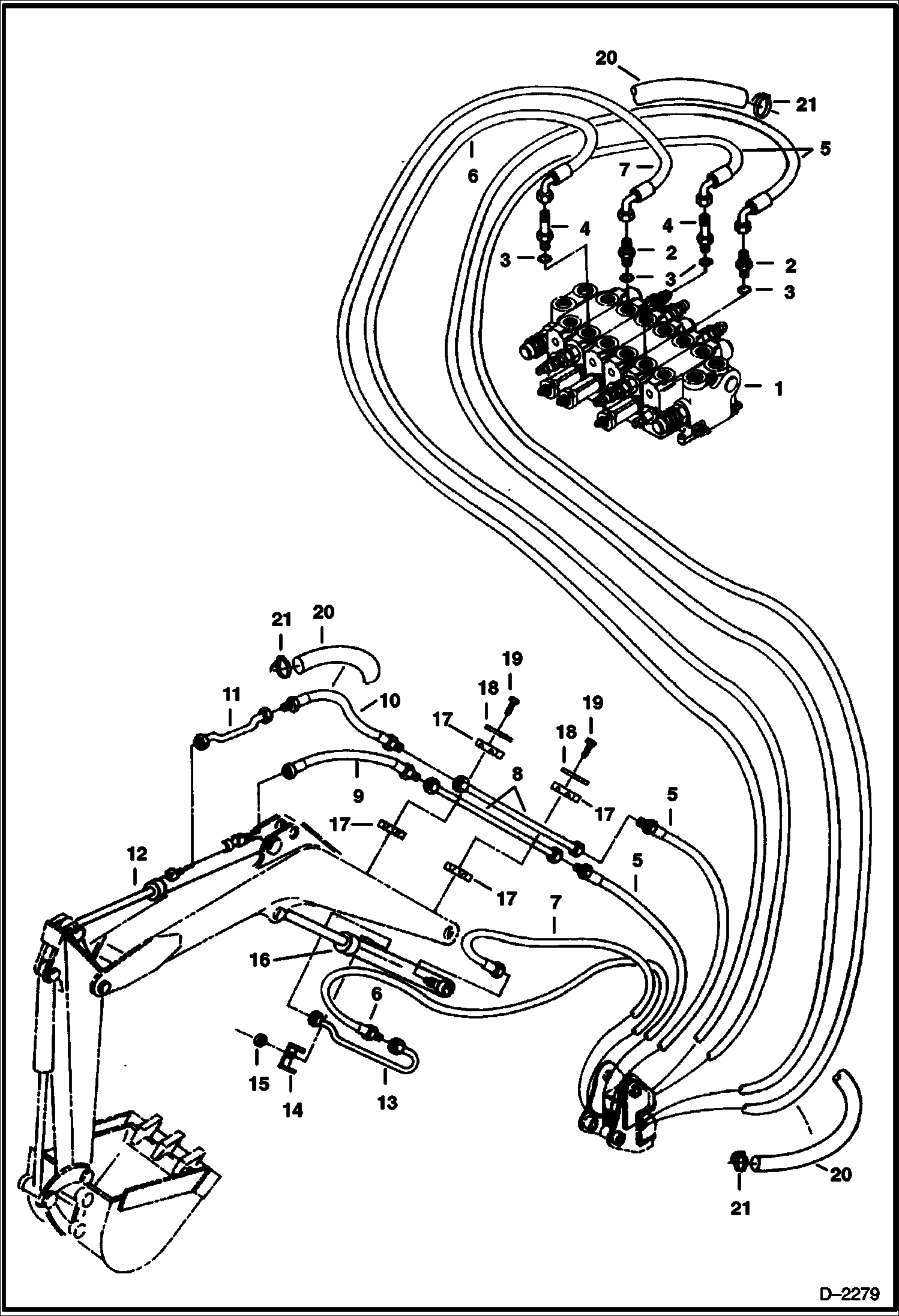

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Arm & Boom) (S/N 511820520 & Above) HYDRAULIC SYSTEM

1

6665003

VALVE See Illustration CONTROL VALVE ASSY/ D2266 - control

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

16K6

FITTING W/Ref. 3

5

6537696

HOSE

6

6537697

HOSE

7

6537698

HOSE

8

6536525

TUBE

9

6536753

HOSE

10

6537411

HOSE

11

6537168

TUBE

12

6586724

CYLINDER See Illustration ARM CYLINDER/ C3216 - arm

13

6536986

TUBE

14

6562266

CLAMP

15

1DM10

NUT

16

6586726

CYLINDER See Illustration BOOM CYLINDER/ C3213 - boom

16

6586726

CYLINDER See Illustration BOOM CYLINDER/ C3213 - boom

17

6577697

CLAMP Was 6701893 - B

18

6652521

PLATE

19

1CM860

BOLT Was 17C000520B

20

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

21

6665221

CABLE TIE Metal - Requires Tool MEL-1427 to Install Cable Tie - Was 6610510 - A
