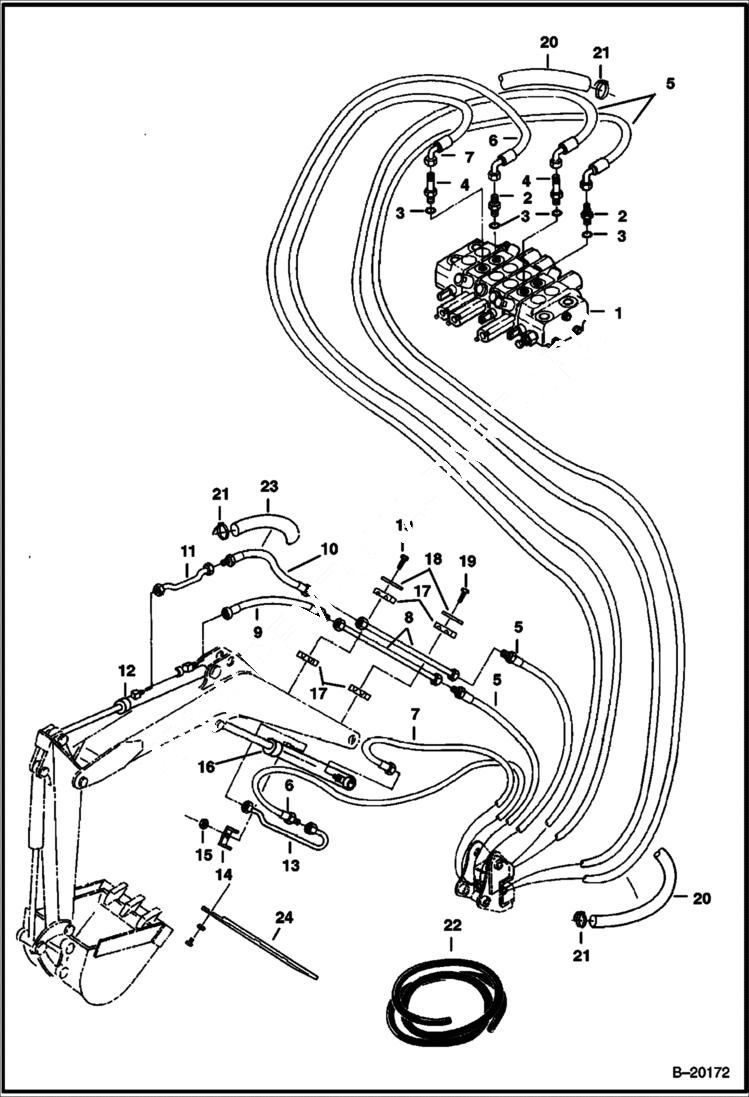

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Arm & Boom) (S/N 511820001-511820519) HYDRAULIC SYSTEM

1

6656151

VALVE See Illustration CONTROL VALVE ASSY/ B25184 - control

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

16K6

FITTING W/Ref. 3

5

6628356

HOSE W/Hose Cover - Was 6589616 - A

6

6589721

HOSE W/Hose Cover - Was 6537697 - A

7

6589722

HOSE W/Hose Cover - Was 6537698 - A

8

6536525

TUBE

9

6589718

HOSE W/Hose Cover - Was 6536753 - A

10

6589719

HOSE W/Hose Cover - Was 6537411 - A

11

6537168

TUBE

12

6586724

CYLINDER See Illustration ARM CYLINDER/ C3216 - arm

13

6536986

TUBE

14

6562266

CLAMP

15

1DM10

NUT

17

6577697

CLAMP Was 6701893 - B

18

6652521

PLATE

19

17C520

BOLT 5 U.S. Thread

19

1CM860

BOLT Metric Thread

20

COVER NLA - 117'' (2717mm) long - Order Ref. 22

21

6665221

CABLE TIE Metal - Required Tool MEL-1427 to install Cable Tie - Was 6610510 - A

22

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

23

COVER NLA - 20'' (508mm) long - Order Ref. 22

24

SHIELD See Illustration SWING BRACKET & BOOM/ B20169
