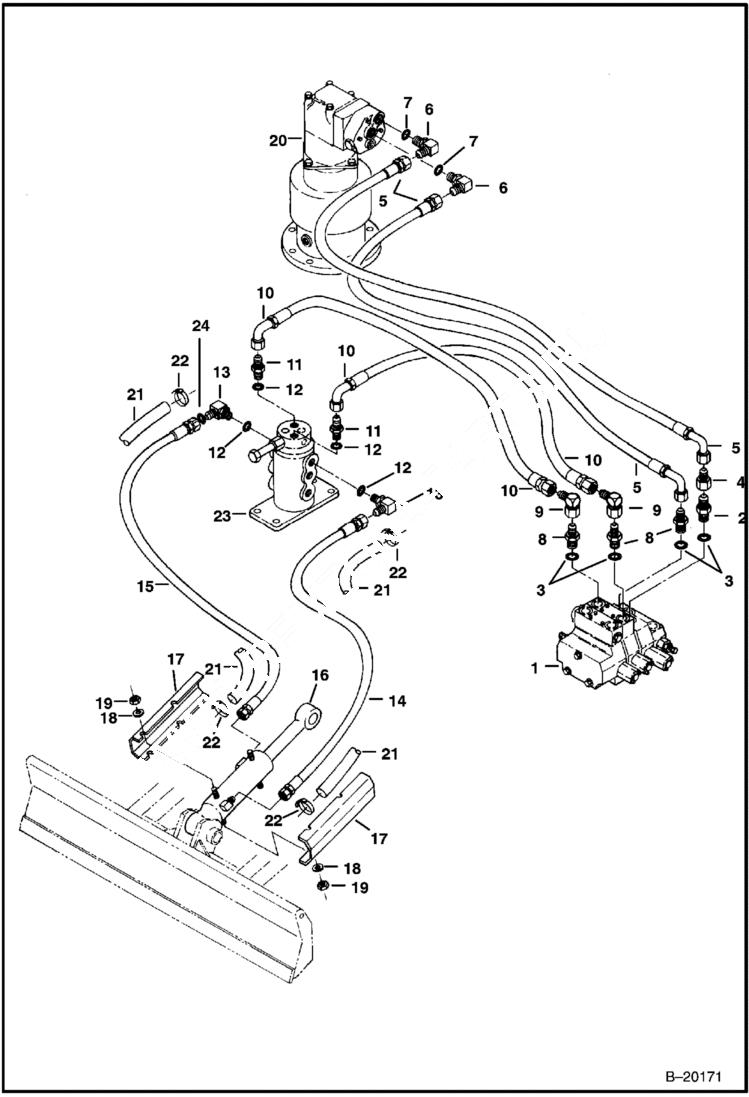

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Blade and Swing) (S/N 511820001-511820178) HYDRAULIC SYSTEM

1

6658411

VALVE See Illustration CONTROL VALVE ASSY/ D2118 - control

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

9K3

REDUCER

5

6640724

HOSE

6

17K5

ELBOW W/Ref. 7

7

79K6

O RING 10

8

743108

FITTING W/Ref. 3

9

11K5

FITTING

10

6537631

HOSE

11

6654895

ADAPTER W/Ref. 12

12

6655250

O-RING

13

6657392

ELBOW W/Ref. 12

14

6800261

HOSE W/Hose Cover -Was 6800135 - C

15

6800260

HOSE W/Hose Cover -Was 6800134 - C

16

6538976

CYLINDER See Illustration BLADE CYLINDER/ C3214 - Blade

17

6537498

SHIELD

18

17EM100

WASHER

19

1DM10

NUT

20

MOTOR See Illustration SWING MOTOR/ C3252 - Swing

21

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

22

6668135

MOTOR See BTIE-050 - drive - service replacement - must be used in matched pairs - Also Order Sprocket 6587310 (2); bolt 1CM01235B (18), Ref. 23 (4), Ref 24 (2) and Ref. 25 (2) - Was 6667337 - A

22

6665221

CABLE TIE Metal-requires Tool MEL-1427 to install Cable Tie - Was 6610510 - A

23

SWIVEL JOINT See Illustration SWIVEL JOINT/ B20201 See BTIE-031 - NLA - Was 6534250 - A

24

6593801

ORIFICE
