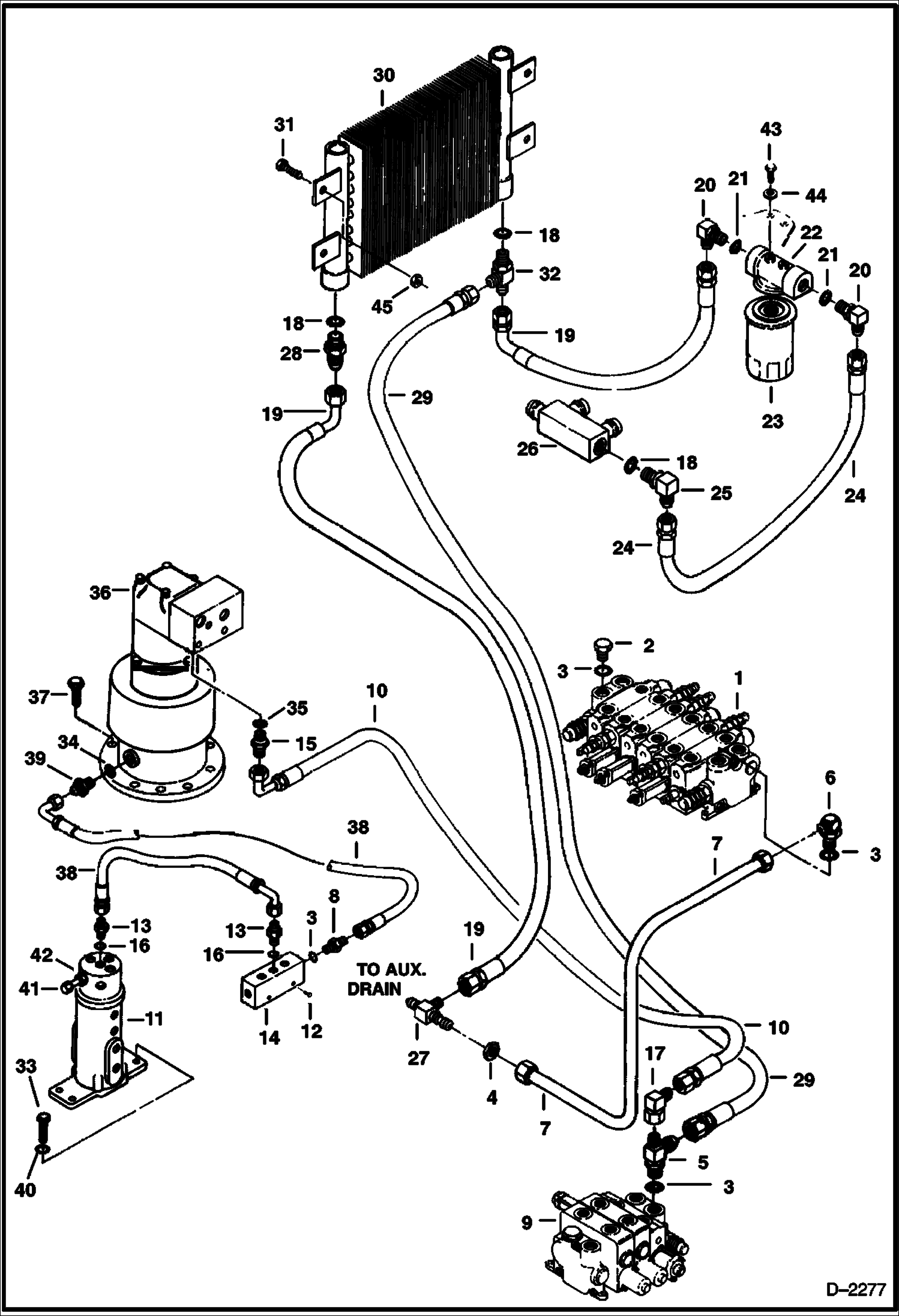

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Valve to Swing Motor to Cooler) (S/N 511820520 & Above) HYDRAULIC SYSTEM

1

6665003

VALVE See Illustration CONTROL VALVE ASSY/ D2266 - control

2

24K7

PLUG W/Ref. 3

3

79K10

O RING 10

4

86F8

NUT 5 Bulkhead

5

21K7

TEE W/Ref. 3

6

17KB1210

FITTING, HYD ELBOW W/Ref. 3 - Was 6714901 - A

7

6595041

TUBE

8

15K7

FITTING W/Ref. 3

9

6665002

VALVE See Illustration CONTROL VALVE ASSY/ D2267 - control

10

6595032

HOSE

11

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

12

29CM812

BOLT

13

15K5

FITTING W/Ref. 16

14

6667829

BLOCK Drain - Was 6587437 - A

15

15K6

ADAPTER W/Ref. 35

16

79K6

O RING 10

17

11K7

ADAPTER

18

79K12

O RING 10

19

6539629

HOSE

20

731016

ELBOW W/Ref. 21

21

79K16

O RING 10

22

6654897

FILTER ASSY Assy. - W/Ref. 23

23

6653336

ELEMENT

24

6537663

HOSE

25

17K8

FITTING W/Ref. 18

26

6537505

MANIFOLD supply

27

6706172

TEE Bulkhead

28

16K8

CONNECTOR W/Ref. 18

29

6589473

HOSE

30

6664457

OIL COOLER

31

29CM816

SCREW

32

TEE NLA - Was 21K000008B - A

33

1CM1230

BOLT

34

6655250

O-RING

35

79K8

O RING 10

36

See Illustration SWING MOTOR/ C3365 - swing

37

1CM1225

BOLT

38

6539841

HOSE

39

6538386

CONNECTOR W/Ref. 34

40

6EM120

WASHER

41

BOLT See Illustration SWIVEL JOINT/ PE3057 - NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A

42

NUT Use W/NLA 6536147 screw - Was 6536748 - B

43

1C612

BOLT

44

25E17

WASHER 5

45

1DM8

NUT
