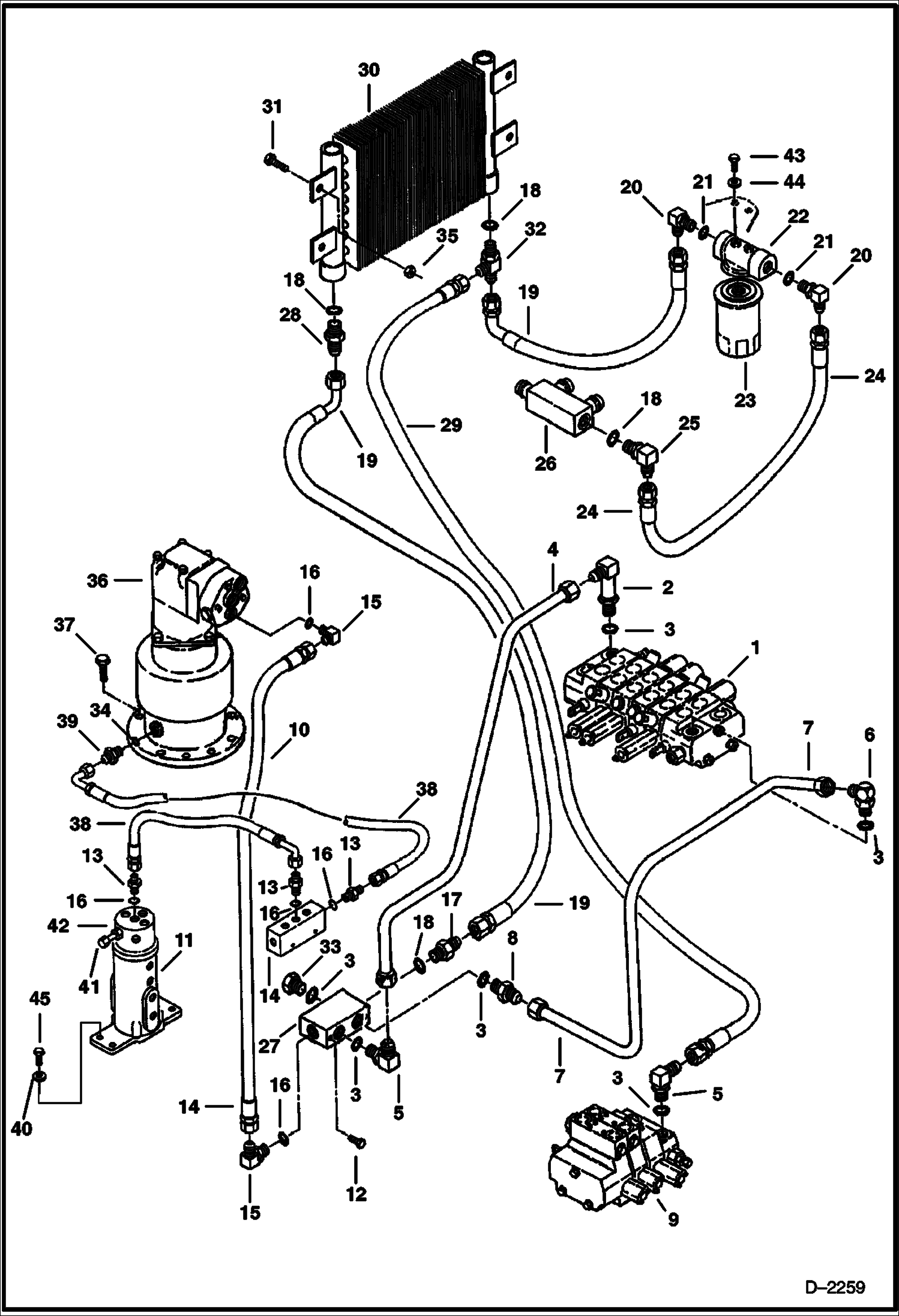

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Valve to Swing Motor to Cooler) (S/N 511820179-511820519) HYDRAULIC SYSTEM

1

6656151

VALVE See Illustration CONTROL VALVE ASSY/ B25184 - control

2

6519195

ELBOW W/Ref. 3

3

79K10

O RING 10

4

6537521

TUBE

5

17K7

ELBOW W/Ref. 3

6

18K7

FITTING W/Ref. 3

7

6537522

TUBE

8

15K7

FITTING W/Ref. 3

9

6658411

VALVE See Illustration CONTROL VALVE ASSY/ D2118 - control

10

6530884

HOSE

11

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

12

29CM812

BOLT

13

15K5

FITTING W/Ref. 16

14

6667829

BLOCK Drain - Was 6587437 - A

15

17K5

ELBOW W/Ref. 16

16

79K6

O RING 10

17

15K8

FITTING W/Ref. 18

18

79K12

O RING 10

19

6539629

HOSE

20

731016

ELBOW W/Ref. 21

21

79K16

O RING 10

22

6654897

FILTER ASSY Assy. - W/Ref. 23

23

6653336

ELEMENT

24

6537663

HOSE

25

17K8

FITTING W/Ref. 18

26

6537505

MANIFOLD supply

27

6537517

MANIFOLD Drain

28

16K8

CONNECTOR W/Ref. 18

29

6589473

HOSE

30

6664457

OIL COOLER

31

29CM816

SCREW

32

TEE NLA - Was 21K000008B - A

33

24K7

PLUG

34

6655250

O-RING

35

1DM8

NUT

36

MOTOR See Illustration SWING MOTOR/ C3252 - swing

37

1CM1225

BOLT

38

6539841

HOSE

39

6538386

CONNECTOR W/Ref. 34

40

6EM120

WASHER

41

BOLT See Illustration SWIVEL JOINT/ PE3057 - NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A

42

NUT Use W/NLA 6536147 screw - Was 6536748 - B

43

1C612

BOLT

44

25E17

WASHER 5

45

1CM1230

BOLT
