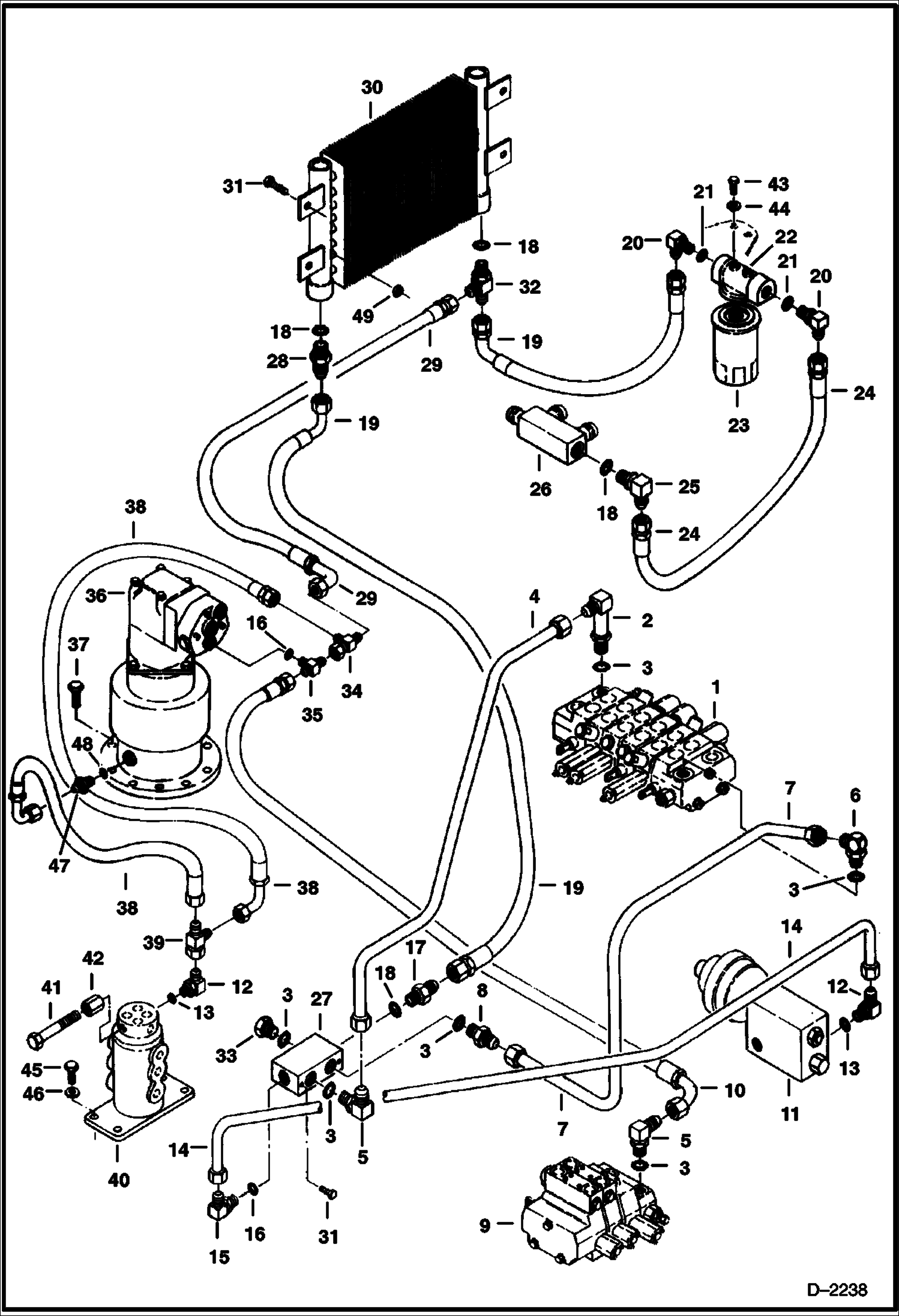

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Valve to Swing Motor to Cooler) (S/N 511820001-511820178) HYDRAULIC SYSTEM

1

6656151

VALVE See Illustration CONTROL VALVE ASSY/ B25184 - control

2

6519195

ELBOW W/Ref. 3

3

79K10

O RING 10

4

6537521

TUBE

5

17K7

ELBOW W/Ref. 3

6

18K7

FITTING W/Ref. 3

7

6537522

TUBE

8

15K7

FITTING W/Ref. 3

9

6658411

VALVE See Illustration CONTROL VALVE ASSY/ D2118 - control

10

6537649

HOSE

11

6657208

VALVE ASSY. See Illustration ACCUMULATOR VALVE/ C3279 - accumulator

12

6657392

ELBOW W/Ref. 13

13

6655244

O-RING

14

6537520

TUBE

15

17K5

ELBOW W/Ref. 16

16

79K6

O RING 10

17

15K8

FITTING W/Ref. 18

18

79K12

O RING 10

19

6539629

HOSE

20

731016

ELBOW W/Ref. 21

21

79K16

O RING 10

22

6654897

FILTER ASSY Assy. - W/Ref. 23

23

6653336

ELEMENT

24

6537663

HOSE

25

17K8

FITTING W/Ref. 18

26

6537505

MANIFOLD supply

27

6537517

MANIFOLD Drain

28

16K8

CONNECTOR W/Ref. 18

29

6539630

HOSE

30

6664457

OIL COOLER

31

29CM816

SCREW

32

TEE NLA - Was 21K000008B - A

33

24K7

PLUG

34

6535460

TEE

35

6535461

TEE W/Ref. 16

36

MOTOR See Illustration SWING MOTOR/ C3252 - swing

37

1CM1225

BOLT

38

6618195

HOSE

39

13K5

TEE

40

SWIVEL JOINT See Illustration SWIVEL JOINT/ B20201 See BTIE-031 - NLA - W/Ref. 41 & 42 - WAS 6534250 - A

41

BOLT See Illustration SWIVEL JOINT/ PE3057 - NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A

42

NUT Use W/NLA 6536147 screw - Was 6536748 - B

43

1C612

BOLT

44

4E5

WASHER

45

1CM1230

BOLT

46

6EM120

WASHER

47

6538386

CONNECTOR W/Ref. 48

48

6655250

O-RING

49

1DM8

NUT
