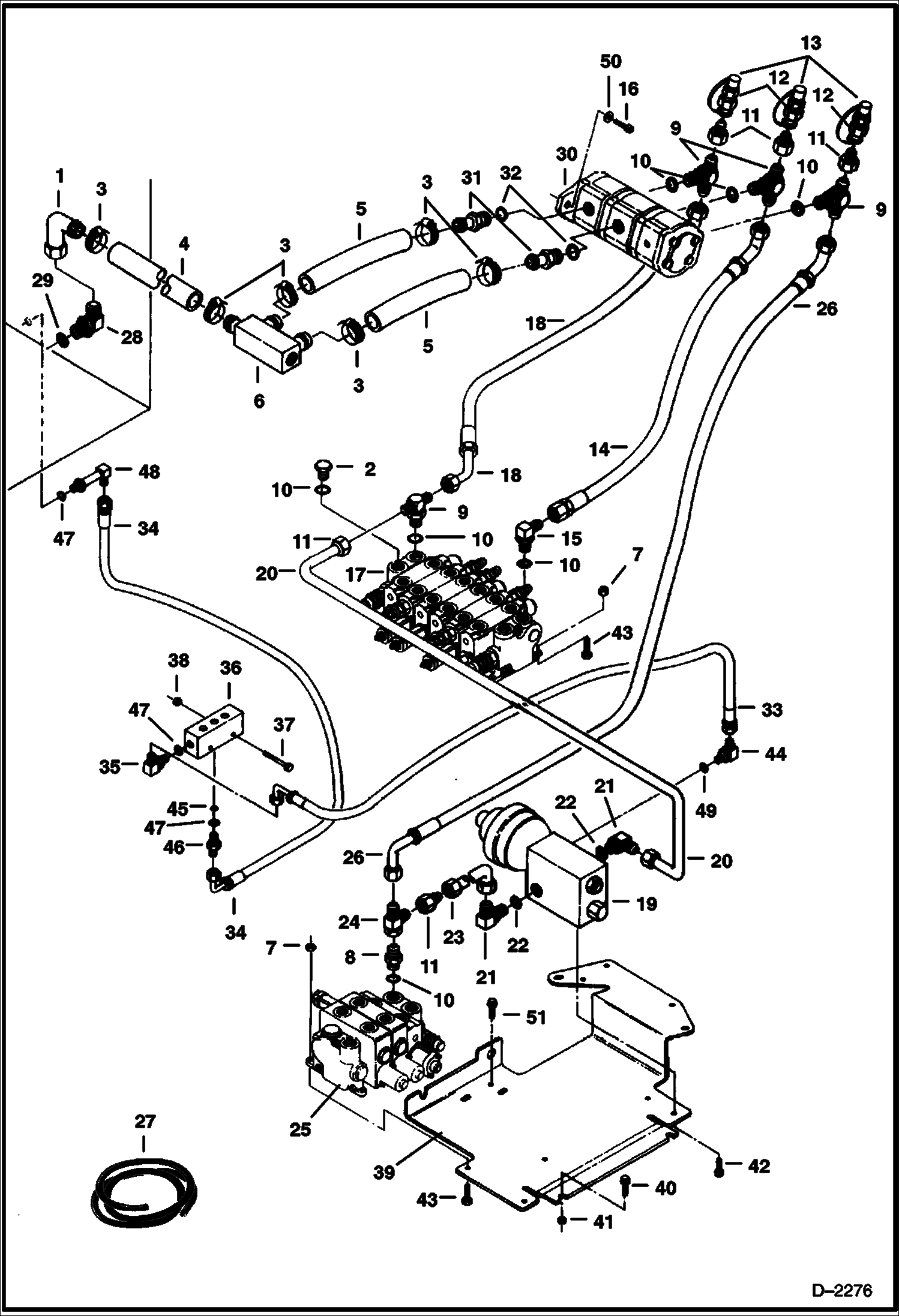

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Tank To Pump To Valves) (S/N 511820520 & Above) HYDRAULIC SYSTEM

1

6588352

TUBE

2

24K7

PLUG W/Ref. 10

3

42H24

CLAMP-5

4

HOSE NLA - 35'' - Order Ref. 27

5

HOSE NLA - 9'' - Order Ref. 27

6

6537505

MANIFOLD Supply

7

49DM10

NUT

8

15K7

FITTING W/Ref. 10

9

19K7

TEE W/Ref. 10

10

79K10

O RING 10

11

784244

ADAPTOR

12

6646635

COUPLER Diagnostic

13

6630367

CAP

14

6537694

HOSE

15

6519195

ELBOW W/Ref. 10

16

3GM1025

BOLT

17

6665003

VALVE See Illustration CONTROL VALVE ASSY/ D2266 - control

18

6538396

HOSE

19

6657208

VALVE ASSY. See Illustration ACCUMULATOR VALVE/ C3279 - accumulator

20

6595100

TUBE

21

6654893

ELBOW W/Ref. 22

22

6655245

O-RING

23

6595042

TUBE

24

13K7

FITTING

25

6665002

VALVE See Illustration CONTROL VALVE ASSY/ D2267 - control

26

6537525

HOSE

27

6673825

HOSE bulk - sold per foot - Was 1310909B - A

28

17K11

FITTING See Illustration FUEL SYSTEM AND TANKS/ TS1178 - W/Ref. 29

29

79K20

O RING 10

30

6665107

PUMP, GEAR TRIPLE See Illustration GEAR PUMP/ B18150 - assy

31

6587972

FITTING

32

79K16

O RING 10

33

6587032

HOSE

34

6532638

HOSE

35

17K5

ELBOW W/Ref. 47

36

6667829

BLOCK Drain - W/Ref. 45-47 - Was 6587437 - A

37

1CM855

BOLT

38

1DM8

NUT

39

6595018

PLATE

40

29CM1020

BOLT

41

42DM10

NUT

42

29CM816

SCREW

43

1CM1030

BOLT Was 1CM01040B - B

44

6657439

SPRING

45

6587439

DISC

46

15K5

FITTING W/Ref. 47

47

79K6

O RING 10

48

6558510

ELBOW W/Ref. 47

49

6655244

O-RING

50

15EM100

WASHER

51

26GM10020

BOLT
