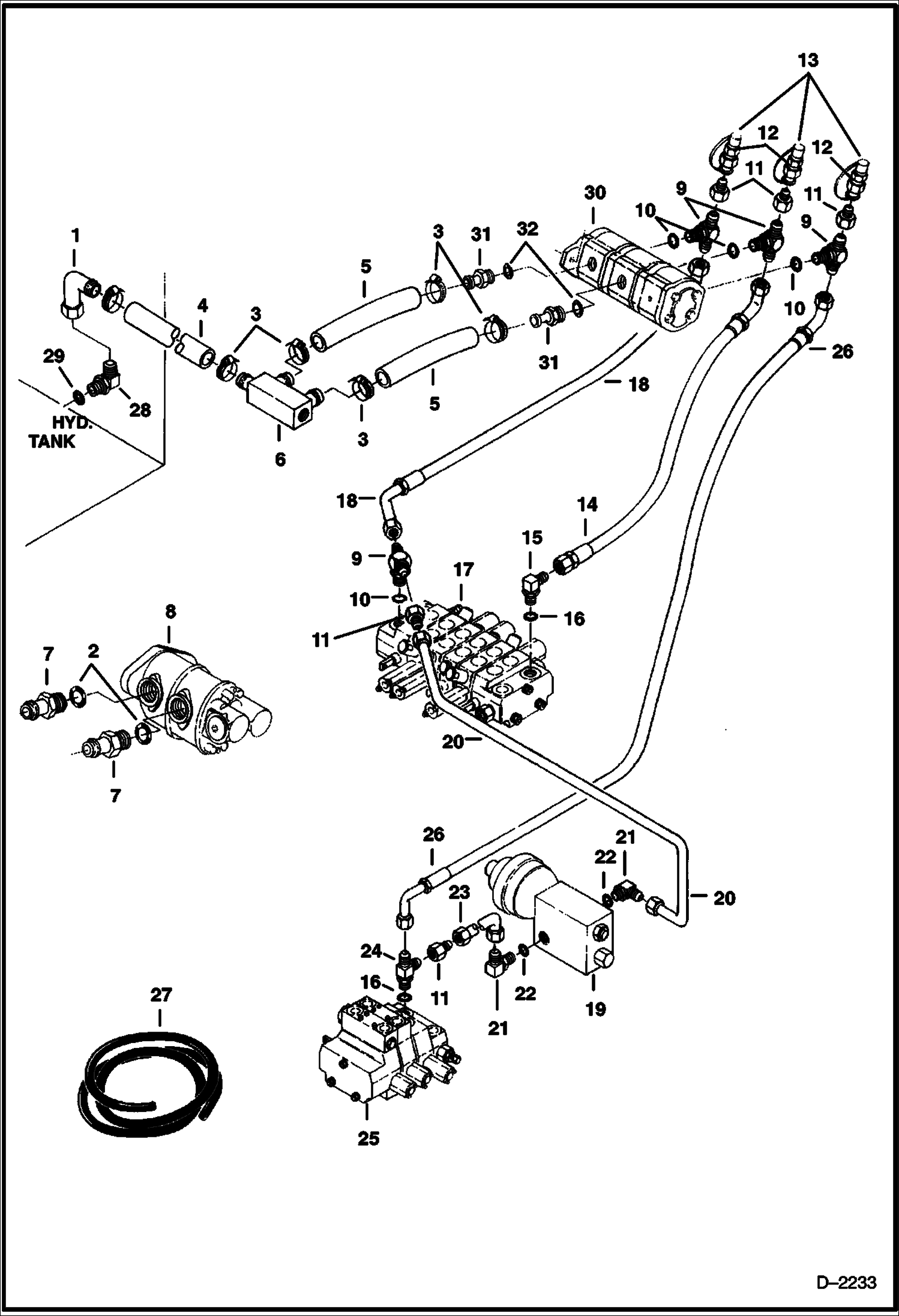

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Tank to Pump to Valves) (S/N 511820001-511820178) HYDRAULIC SYSTEM

1

6588352

TUBE

2

79K20

O RING 10

3

42H24

CLAMP-5

4

HOSE NLA - 35'' (890mm) - Order Ref. 27

5

HOSE NLA - 9'' (229mm) - Order Ref. 27

6

6537505

MANIFOLD Supply

7

557492

ADAPTER W/Ref. 2 - Use W/Ref. 8 only

8

PUMP See Illustration TRIPLE GEAR PUMP/ B20174 - NLA - assy. - Order Ref. 30 (1) & 31 (2) - Was 6657194 - A

9

19K7

TEE W/Ref. 10

10

79K10

O RING 10

11

784244

ADAPTOR

12

6646635

COUPLER Diagnostic

13

6630367

CAP

14

6537694

HOSE

15

17K7

ELBOW W/Ref. 16

16

79K10

O RING 10

17

6656151

VALVE See Illustration CONTROL VALVE ASSY/ B25184 - control

18

6538396

HOSE

19

6657208

VALVE ASSY. See Illustration ACCUMULATOR VALVE/ C3279 - accumulator

20

6537523

TUBE

21

6654893

ELBOW W/Ref. 22

22

6655245

O-RING

23

6537526

TUBE

24

21K7

TEE W/Ref. 16

25

6658411

VALVE See Illustration CONTROL VALVE ASSY/ D2118 - control

26

6537525

HOSE

27

6673825

HOSE bulk - sold per foot - Was 1310909B - A

28

17K11

FITTING See Illustration FUEL SYSTEM AND TANKS/ TS1178 - W/Ref. 29

29

79K20

O RING 10

30

6665107

PUMP, GEAR TRIPLE See Illustration GEAR PUMP/ B18150 - assy

31

6587972

FITTING W/Ref. 32 - Use W/Ref. 30 only

32

79K16

O RING 10
