Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (R.H. Joystick Controls) (Bucket & Boom) (ISO Control Pattern) (S/N 511820001-511820178) HYDRAULIC SYSTEM

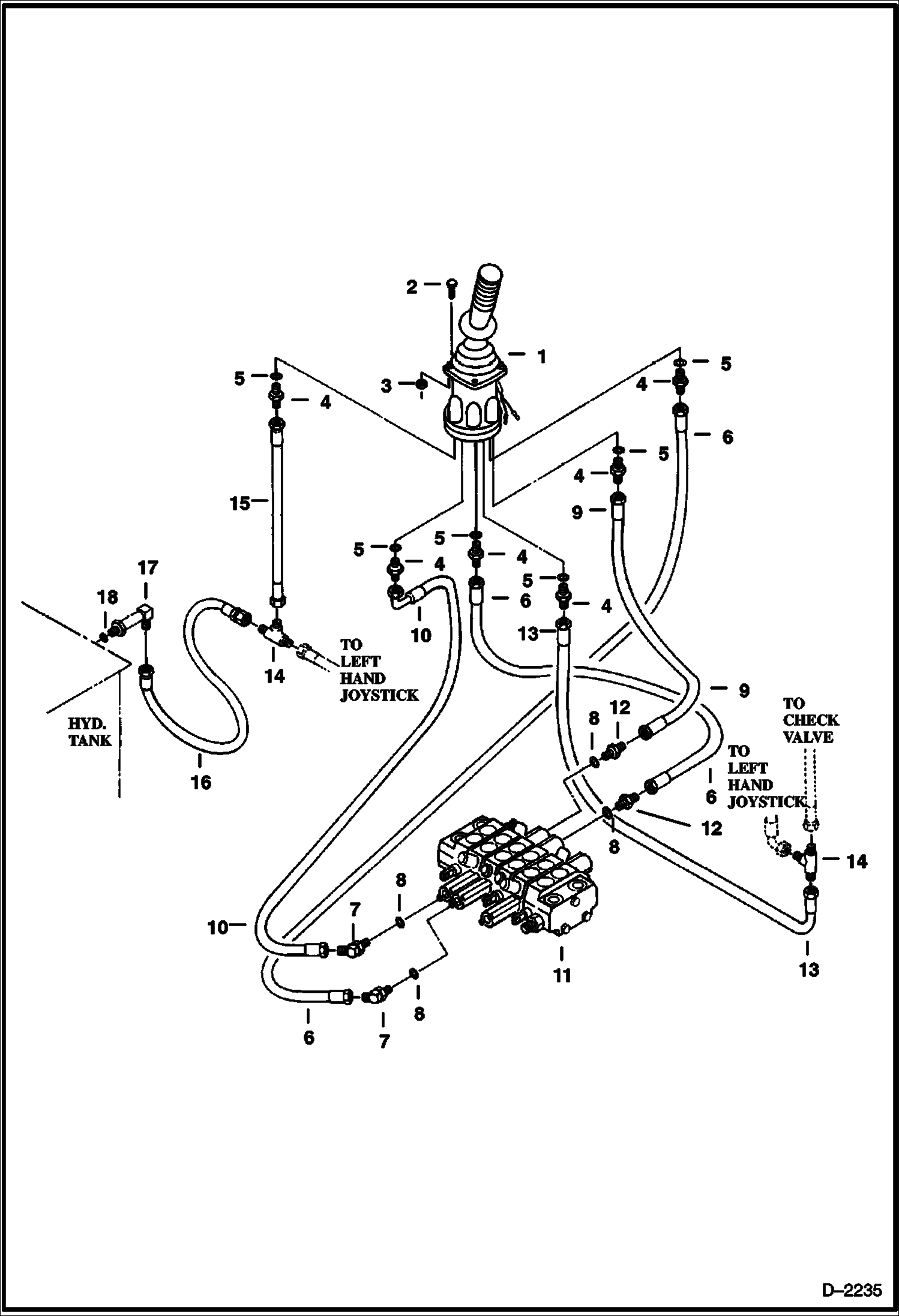

Схема запчастей Bobcat 325 - HYDRAULIC CIRCUITRY (R.H. Joystick Controls) (Bucket & Boom) (ISO Control Pattern) (S/N 511820001-511820178) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6654120

JOYSTICK ASSY. See Illustration R.H. JOYSTICK CONTROLS/ D1972 - RH

2

1CM625

BOLT

3

1DM6

NUT

4

6654895

ADAPTER W/Ref. 5

5

6655244

O-RING

6

6536792

HOSE

7

18K3

ELBOW W/Ref. 5

8

79K4

O RING 10

9

6577680

HOSE Was 6536786 - A

10

6536791

HOSE

11

6656151

VALVE See Illustration CONTROL VALVE ASSY/ B25184 - control

12

15K3

CONNECTOR W/Ref. 5

13

6536788

HOSE

14

10K5

TEE

15

6536789

HOSE

16

6618194

HOSE

17

6558510

ELBOW W/Ref. 18

18

79K6

O RING 10

Выбрано товаров: 18
