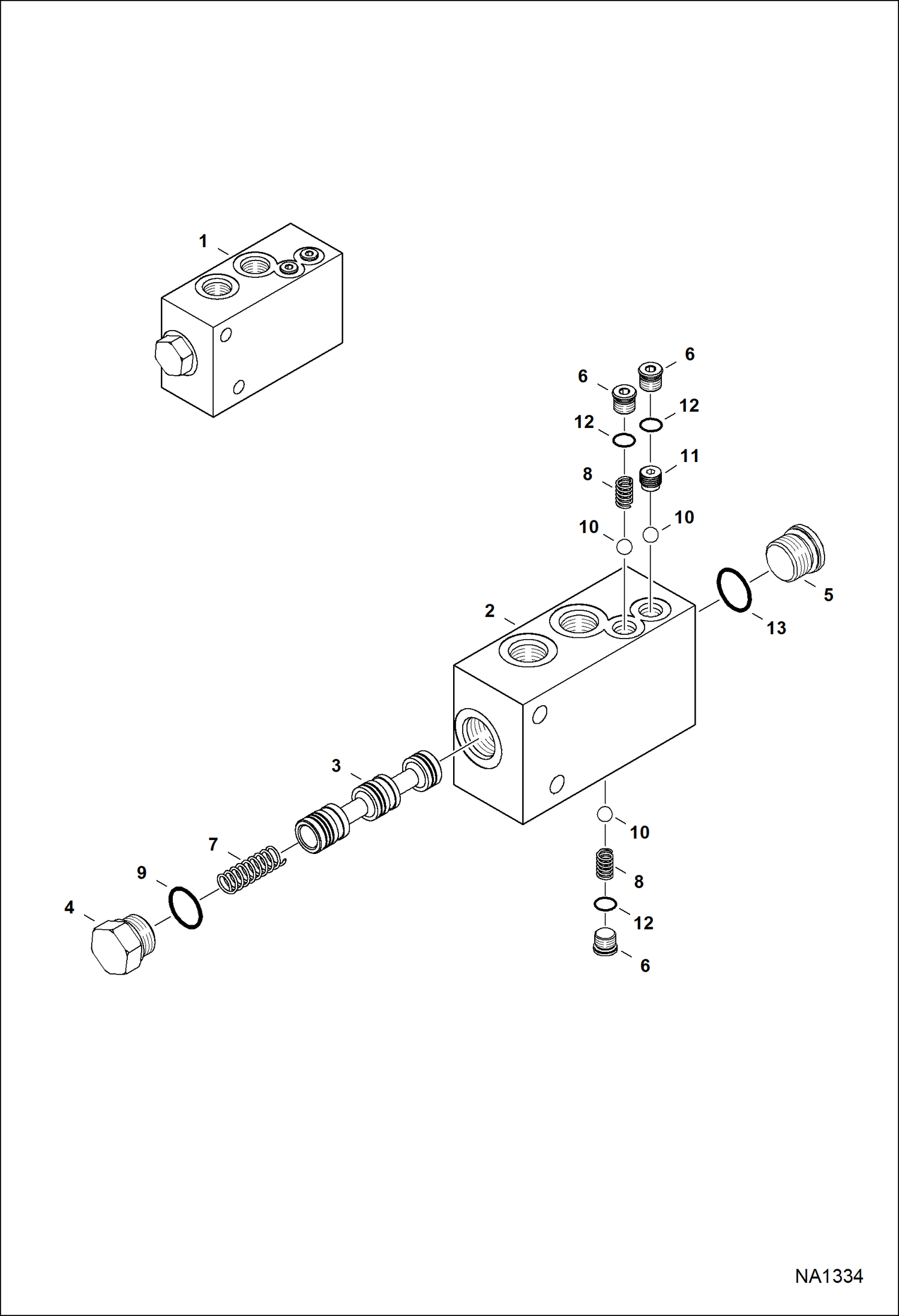

Запчасти Bobcat 325 EUROPEAN ACCESSORIES (Slew Lock Valve)(Assembly) ACCESSORIES & OPTIONS

1

7003480

VALVE, LOCK SLEW Ref. 2-11

2

BLOCK NSS - Order Ref. 1

3

7008555

SPOOL, LOCK

4

7008556

PLUG W/Ref. 9

5

6678563

PLUG W/Ref. 13

6

6669727

PLUG W/Ref. 12

7

7008557

SPRING, SPOOL

8

7008558

SPRING, CHECK

9

79K10

O RING 10

10

7008560

BALL

11

7008561

SEAT, SHUTTLE

12

O-RING NSS - Order Ref. 6

13

O-RING NSS - Order Ref. 5
