Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (L.H. Joystick Controls) (Arm & Swing) (ISO Control Pattern) (S/N 511820179-511820519) HYDRAULIC SYSTEM

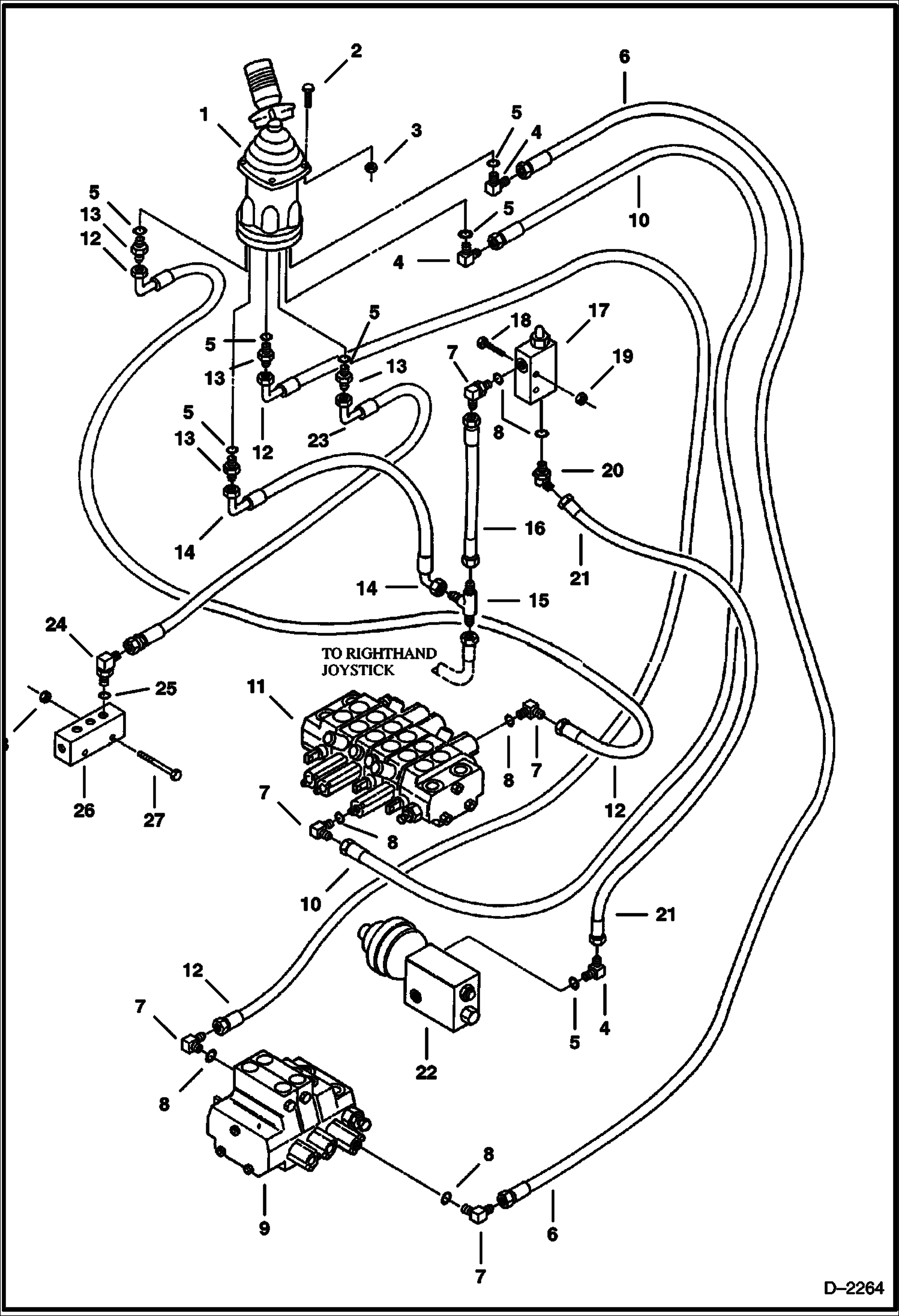

Схема запчастей Bobcat 325 - HYDRAULIC CIRCUITRY (L.H. Joystick Controls) (Arm & Swing) (ISO Control Pattern) (S/N 511820179-511820519) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6654119

JOYSTICK ASSY. See Illustration L.H. JOYSTICK CONTROLS/ D1973 - LH

2

1CM625

BOLT

3

1DM6

NUT

4

6657392

ELBOW W/Ref. 5

5

6655244

O-RING

6

6536599

HOSE

7

17K3

ELBOW W/Ref. 8

8

79K4

O RING 10

9

6658411

VALVE See Illustration CONTROL VALVE ASSY/ D2118 - control

10

6577680

HOSE

11

6656151

VALVE See Illustration CONTROL VALVE ASSY/ B25184 - control

12

6536790

HOSE

13

6654895

ADAPTER W/Ref. 5

14

6536784

HOSE

15

10K5

TEE

16

6536797

HOSE

17

6667386

VALVE See Illustration CHECK VALVE/ B13826 - check - Was 6657207 - A

18

1CM840

BOLT

19

1DM8

NUT

20

18K3

ELBOW W/Ref. 8

21

6536793

HOSE

22

6657208

VALVE ASSY. See Illustration ACCUMULATOR VALVE/ C3279 - accumulator

23

6537630

HOSE

24

17K5

ELBOW W/Ref. 25

25

79K6

O RING 10

26

6667829

BLOCK Drain - Was 6587437 - A

27

1CM855

BOLT

28

1DM8

NUT

Выбрано товаров: 28
