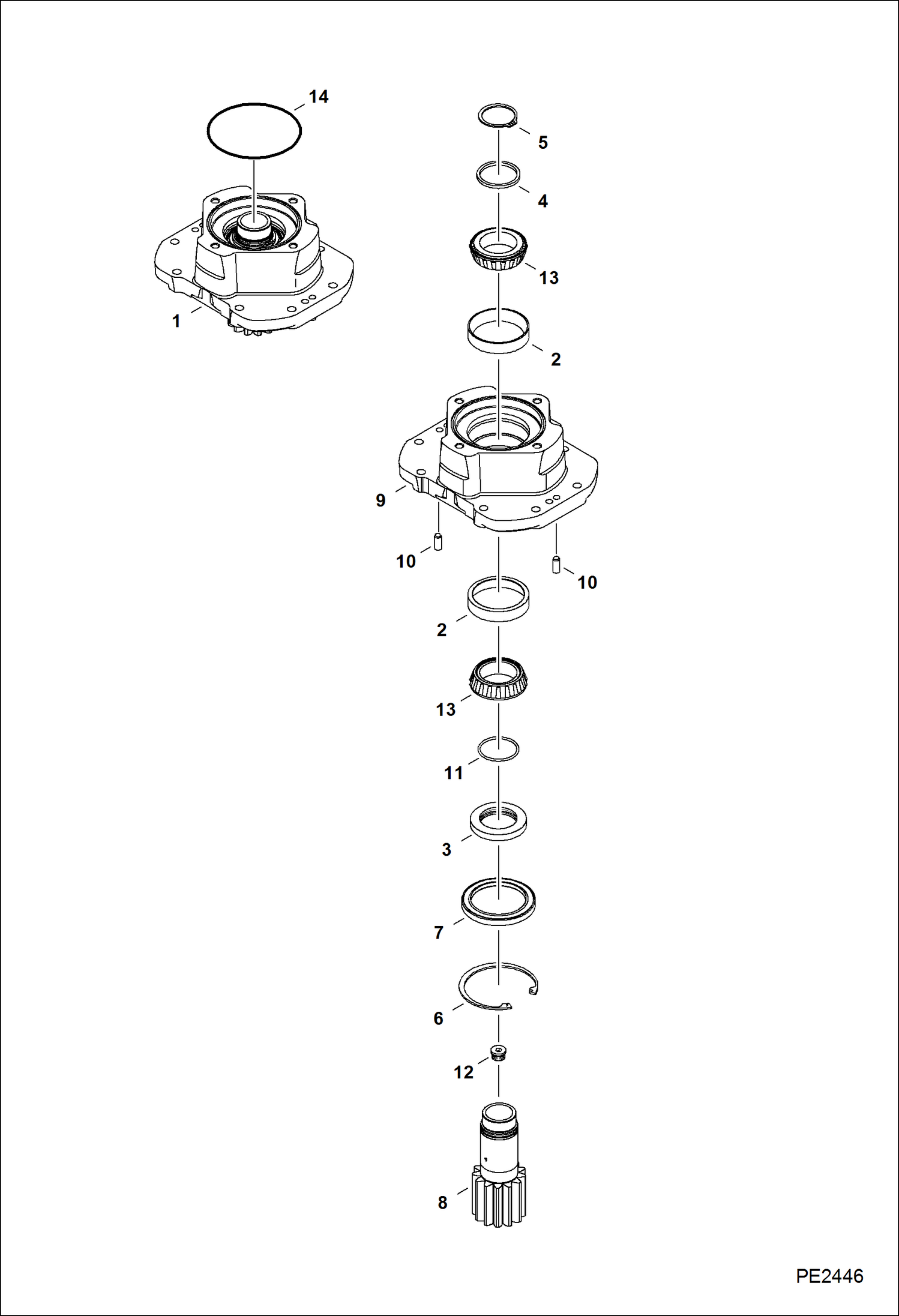

Запчасти Bobcat 325 MOTOR CARRIER HYDRAULIC SYSTEM

1

7105323

CARRIER, MOTOR assy - Ref. 2-13

2

1320905

CUP bearing

3

6589949

SPACER

4

6596894

WASHER

5

6596953

RING retaining

6

6628419

RING retaining

7

6665573

SEAL

8

6589948

SHAFT, SLEW DRIVE

9

7106375

HOUSING

10

20JM1025

DOWEL PIN

11

25K40204

O-RING

12

47K6

PLUG

12

79K8

O RING 10

13

1320904

CONE

14

25K30508

O-RING, 10
