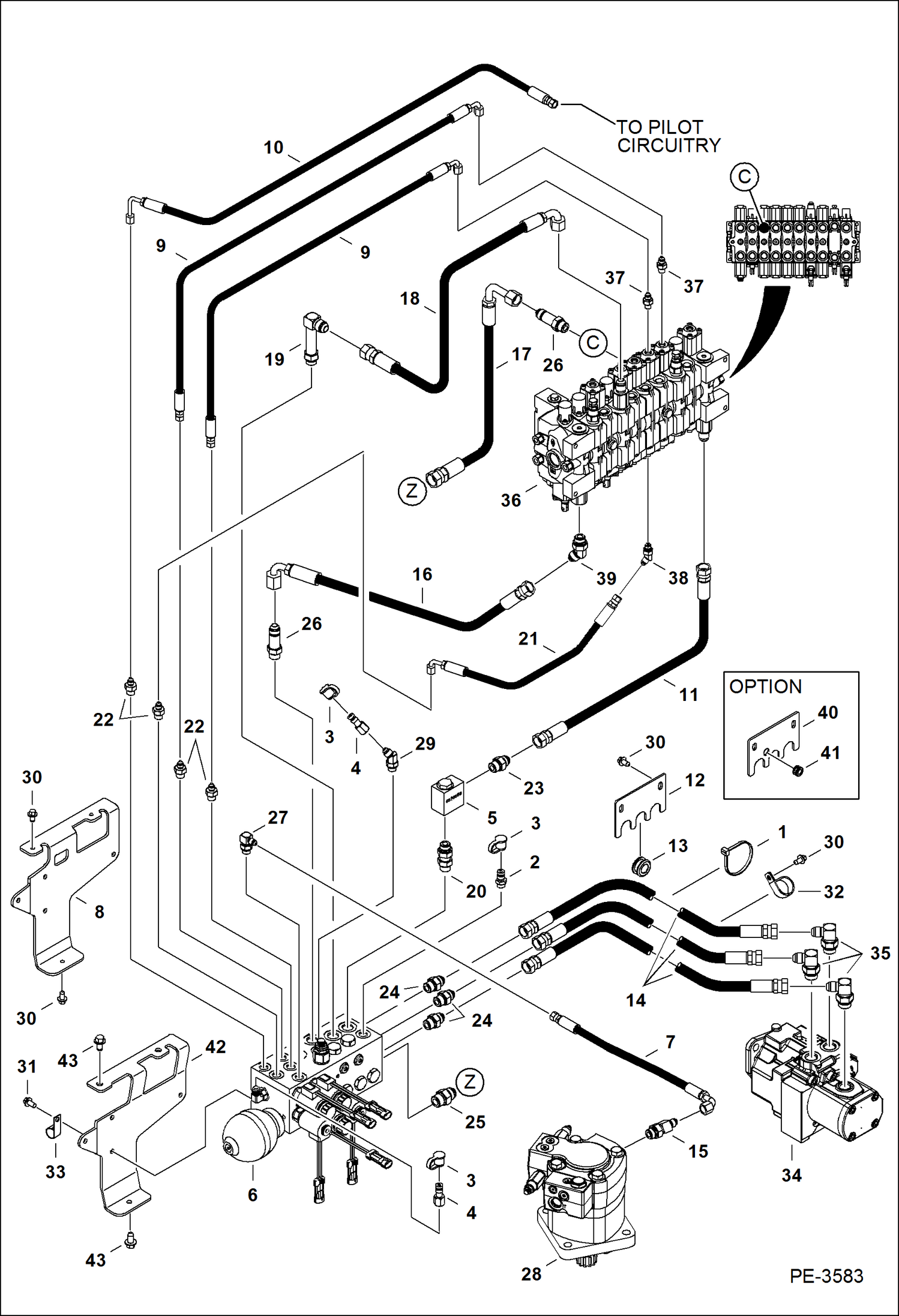

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6630168

COUPLER

2

79K6

O RING 10

3

6630367

CAP

4

6661753

PLUG

5

6676658

VALVE

6

6685164

MANIFOLD See Illustration MANIFOLD ASSY/ MS2374

7

6704212

HOSE

8

6808593

MOUNT

9

6809329

HOSE

10

6809332

HOSE

11

6809336

HOSE

12

6810142

PLATE

13

6810143

GROMMET

14

6810145

HOSE

15

21KB0608

FTG Hyd Straight Tee

15

79K8

O RING 10

16

6810494

HOSE

17

6811152

HOSE

18

6811155

HOSE

19

6812821

ELBOW

19

79K8

O RING 10

20

6812822

CONNECTOR

20

79K8

O RING 10

21

7125143

HOSE

22

15KB0406

FTG HYD S CONNECTOR

22

79K12

O RING 10

23

15KB0808

FITTING, HYD CONNECTOR

23

79K8

O RING 10

24

15KB1008

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

15KB1010

FITTING, HYD CONNECTOR

25

79K10

O RING 10

26

16KB0808

FITTING, HYD CONNECTOR

26

79K8

O RING 10

27

17KB0406

FITTING, HYD ELBOW

27

79K6

O RING 10

28

7001953

MOTOR, SLEW See Illustration SWING MOTOR/ MS1847 - Was 6687116 - A

29

18KB0606

FITTING, HYD ELBOW

29

79K6

O RING 10

30

26GM8016

SCREW

31

29CM816

SCREW

32

30H58

CLIP

33

30HJ512

CLAMP

34

6698074

PUMP, HYD PISTON See Illustration PISTON PUMP ASSY/ MS2216

35

17KB0810

FITTING, HYD ELBOW

35

79K10

O RING 10

36

6684726

VALVE See Illustration CONTROL VALVE/ MS2623

37

15KB0404

FTG HYD S Connector

37

79K4

O RING 10

38

18KB0404

FTG HYD ELBOW 45

38

79K4

O RING 10

39

18KB0808

FTG HYD ELBOW 45

39

79K8

O RING 10

40

7145816

PLATE, GUIDE HOSE for motion alarm option

41

515069

GROMMET for motion alarm option

42

7170633

MOUNT, VALVE

43

26GM10020

BOLT
