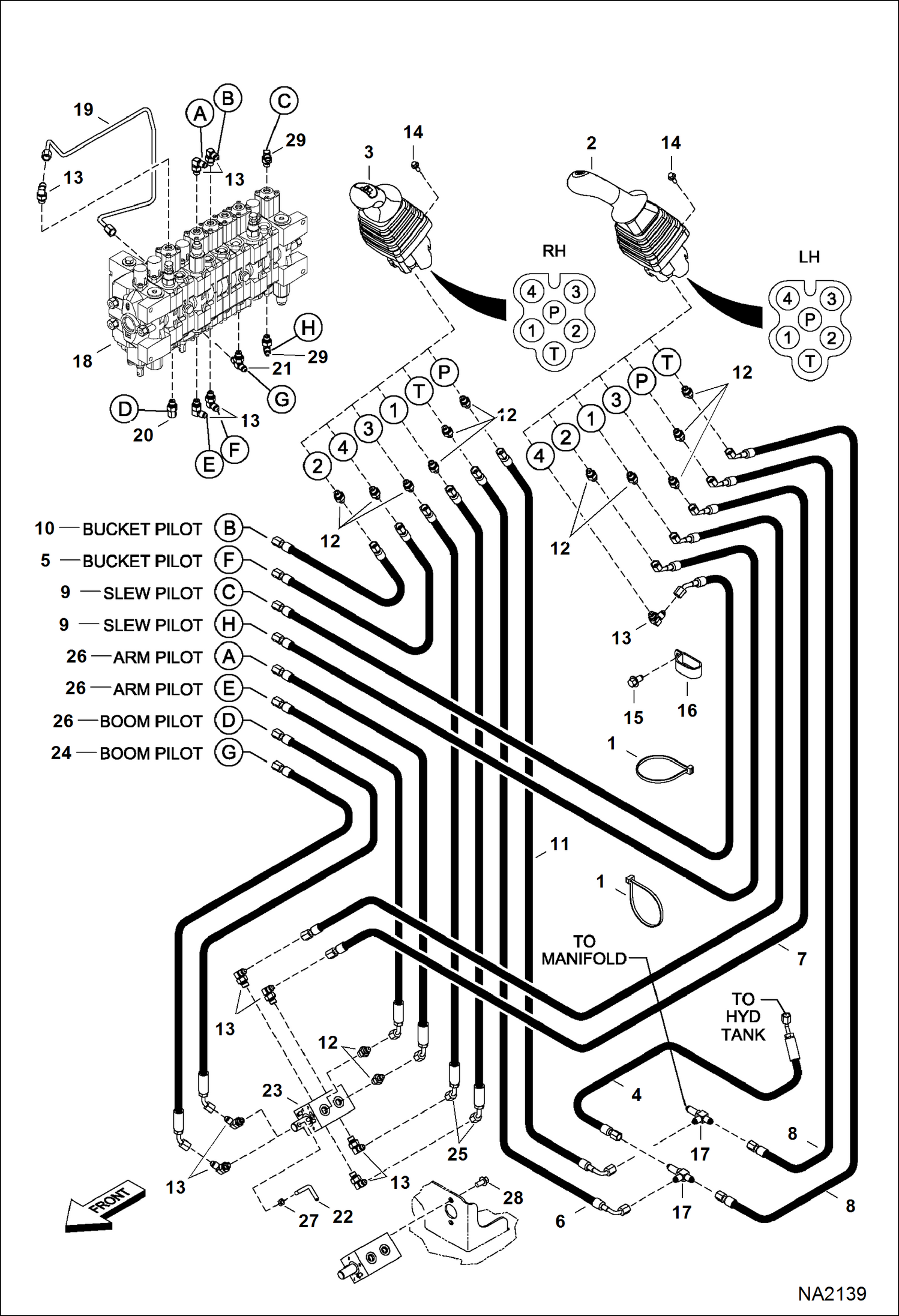

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Pilot ISO/STD) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

4

7106592

HOSE

5

7106604

HOSE

6

7106608

HOSE

7

7106612

HOSE

8

7106613

HOSE

9

7106614

HOSE

10

7106615

HOSE

11

7107661

HOSE

12

15KB0404

FTG HYD S Connector

12

79K4

O RING 10

13

17KB0404

FTG HYD ELBOW 90

13

79K4

O RING 10

14

26GM6020

SCREW

15

26GM8013

BOLT

16

31H46

CLAMP

17

91K3

TEE

18

6684726

VALVE See Illustration CONTROL VALVE/ MS2623

19

6812960

TUBELINE

20

18KB0404

FTG HYD ELBOW 45

20

79K4

O RING 10

21

19KB0404

FITTING, HYD TEE

21

79K4

O RING 10

22

6804251

HANDLE

23

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

24

7106619

HOSE

25

7106620

HOSE

26

7106621

HOSE

27

53DM6

NUT Was 1DM6 - A

28

29CM816

SCREW

29

17KB0404

FTG HYD ELBOW 90

29

TEE See Illustration EUROPEAN ACCESSORIES/ NA2140 - for Europe slew lock option

29

79K4

O RING 10
