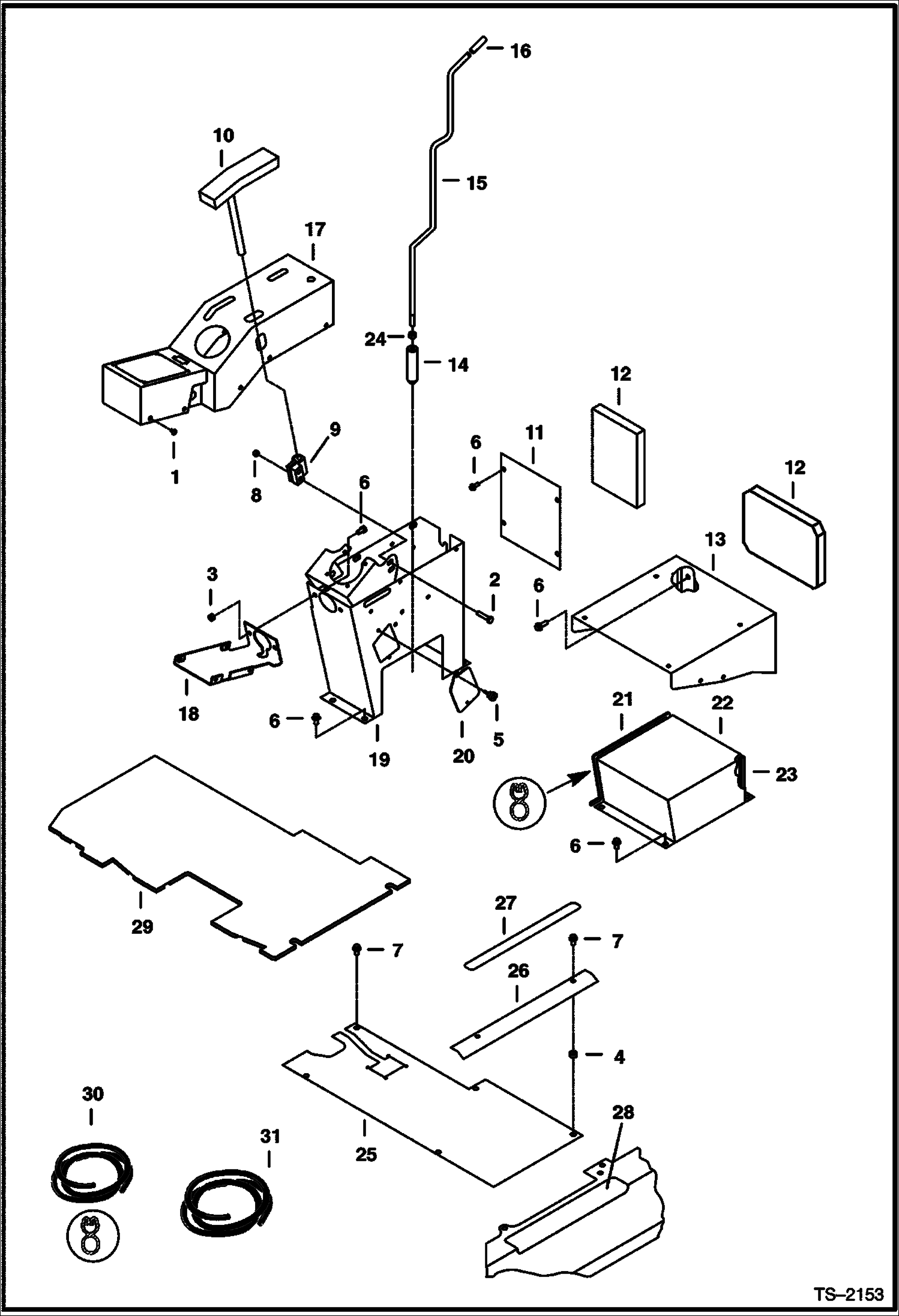

Запчасти Bobcat 325 RH CONTROL CONSOLE (Floorboards) CONTROLS

1

6589675

SCREW Was 6587499 - B

2

1CM1045

BOLT

3

1DM10

NUT

4

6503451

SPACER

5

6631000

THUMBSCREW

6

26GM10020

BOLT Was 29CM01020B - B

7

26GM10030

BOLT Was 29CM01030B - B

8

49DM10

NUT

9

6537514

MOUNT Arm Rest

10

6537510

ARM REST

11

6588786

PANEL

12

6588618

INSULATION

13

6539788

MOUNT See Illustration SEAT/ C3163 - Seat

14

6533957

PIN Swing Lock

15

6588620

ROD

16

KNOB NLA - Was 6658108 - A

17

6596348

COVER See BTIE-041 - for ignition switch hole information - Was 6588771

18

6588551

BRACKET Also Order (4) of 6589675 - Was 6588550 - A

19

6588547

CONSOLE RH

20

6537544

COVER Fuse

21

SEAL NLA - 24'' (600mm) long - Order Ref. 30

22

6588691

COVER

23

SEAL NLA - 6'' (153mm) long - Order Ref. 31

24

1DM12

LOCK NUT

25

6588553

PLATE

26

6588552

ANGLE

27

6593245

TREAD

28

6588953

TREAD

29

6588619

FLOORMAT Canopy

29

6588711

FLOORMAT Cab

29

6589892

FLOORMAT Cab

30

6513152

SEAL bulk - sold per foot
